Front I/O

2x USB 3.2 Gen 1 Type-A 5G​, 1x USB 4.0 Gen 2x2 Type-C 20G, 1x 3.5mm Headset Jack (Audio+Mic)

Chassityp

Mid Tower

Material

SGCC

Dimensioner

549 × 291 × 581 mm (Incl. Protrusions), 511 × 291 × 581 mm (Excl. Protrusions)

Formfaktor

ATX

Max 120 mm-fläktar

12

Max 140 mm-fläktar

4

Sidopanel

TG / TG​

Expansionsplatser

3

Radiatorstöd (topp)

120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)

Övriga specifikationer

Size

Mid Tower

Series

MasterFrame Series

Volume

86 L (w/o panel, protrusions and feet), 93 L (with panel, protrusions and feet)

Summary

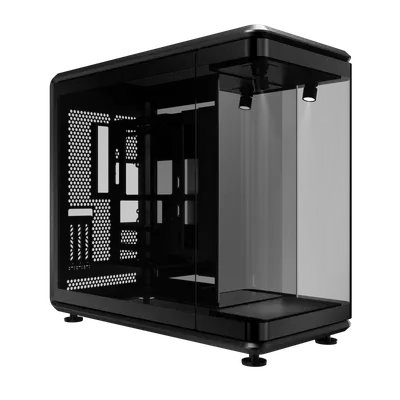

Cooler Master MasterFrame 360 extends the FreeForm 2.0 design philosophy into a visual-first, showcase-ready platform. Featuring Cooler Master's signature aluminum exo-structure and a new central cable management chamber, it delivers clean builds that put hardware center stage. Available in three distinct models - PANORAMA, STAGE LCD, and STAGE MIRROR - the 360 series offers creators a refined platform to build, express, and be seen. The PC is no longer just a machine - it's a statement.

Toolbox

Yes

Color(s)

Black

Subtitle

Showcase Without Compromise

Warranty

2 years

Category key

chassi

Dust Filters

Mesh Only (Removable Filters)

Model Number

MASTERFRAME 360 PANORAMA: MF360-KINN-S00 | MASTERFRAME 360 STAGE LCD: MF360-KHNN-S02 | MASTERFRAME 360 STAGE MIRROR: MF360-KHNN-S01

Product Name

MASTERFRAME 360 PANORAMA | MASTERFRAME 360 STAGE LCD | MASTERFRAME 360 STAGE MIRROR

Category path

global/catalog/pc-cases/mid-towers/

Storyblok slug

masterframe-360-series

Fan Support - Top

6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm

Motherboard Support

Mini-ITX, Micro-ATX, ATX, BTF (ATX)

PCI Expansion Slots

3.5

Fan Support - Bottom

6x 120mm, 2x 140mm, 2x 180mm, 2x 200mm

Materials - Exterior

SGCC

Power Supply Support

ATX

I/O Panel - USB Ports

2x USB 3.2 Gen 1 Type-A 5G, 1x USB 4.0 Gen 2x2 Type-C 20G

Dimensions (L x W x H)

549 x 291 x 581 mm (Incl. Protrusions), 511 x 291 x 581 mm (Excl. Protrusions)

Radiator Support - Top

120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)

Clearances - CPU Cooler

145 mm

DIY tank & Pump support

MASTERFRAME 360 PANORAMA: Yes (with right side tank & pump bracket) | MASTERFRAME 360 STAGE LCD & MIRROR: Yes (Left side)

Clearances - Power Supply

210 mm

Radiator Support - Bottom

120 / 140 / 240 / 280 / 360 mm (maximum thickness clearance 75mm)

Clearances - Graphics Card

430 mm

I/O Panel - Audio In / Out

1x 3.5mm Headset Jack (Audio+Mic)

Other electronic components

1x PCI-e 5.0 Riser / 2x ARGB spotlight

Drive bay support - 3.5" Drive Bays

0

Materials - Side panel (Right / Left)

TG / TG

Cable Routing - Behind Motherboard Tray

110 mm

Drive bay support - 2.5" / 3.5" Drive Bays (or SSD)

1x HDD or 2x SSD

Maximum Dimensions for Front Collectibles Display (H x W x D)

328 x 290 x 110 mm

Preinstalled Drive bay - 3.5" Drive Bay (remark Toolfree quantity) / 2.5" Drive Bay(or SSD)(remark Toolfree quantity)

1x HDD or 2x SSD
