Övriga specifikationer

Size

Mid Tower

Series

MasterBox Series

Weight

6.59 kg

Summary

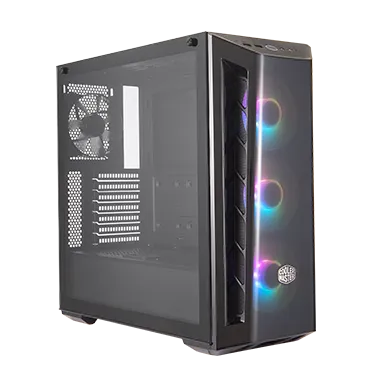

The MasterBox MB520 ARGB is the optimum ATX gaming PC case for showing off component lighting while keeping systems cool.

Color(s)

Black

Subtitle

Light 'Em Up.

Warranty

2 years

I/O Panel

2 x USB 3.2 Gen 1 (USB 3.0), 1 x 3.5mm Audio Jack,1 x 3.5mm Mic Jack, 1x ARGB/PWM Hub (may depend on region and model)

Materials

Steel | Plastic | Tempered Glass

Category key

fardigbyggda-datorer

Dust Filters

Top | Front | Bottom

Model Number

MCB-B520-KGNN-RGA

Cable Routing

19~27mm

Category path

global/catalog/legacy-products/cases/

Shopify handle

masterbox-mb520-argb-mid-tower-pc-case

Storyblok slug

masterbox-mb520-argb-2021

2.5" Drive Bays

4 (Max.6)

Clearance - GFX

410mm/16.1"

Clearance - PSU

180mm/7.08"

Expansion Slots

7

5.25" Drive Bays

N/A

Fan Support - Top

2x 140mm | 3x 120mm

Fan Support - Rear

1x 120mm

Fan Support - Front

2x 140mm | 3x 120mm

Motherboard Support

SSI CEB* | E-ATX* | ATX | Micro ATX | Mini ITX | (*up to 12" x 10.7" motherboards, may impact cable management feature)

Power Supply Support

Bottom Mount | ATX

Clearance - CPU Cooler

165mm/6.49"

Dimensions (L x W x H)

496 x 217 x 469 mm

Radiator Support - Top

360mm | 240mm | 120mm | (44mm max motherboard component height)

Radiator Support - Rear

120mm

Radiator Support - Front

360mm | 280mm | 240mm | 140mm | 120mm | (75mm clearance)

Pre-installed Fans - Rear

1x 120mm 1000-1400RPM MasterFan Lite

Pre-installed Fans - Front

3x 120mm 650~1800RPM SickleFlow PWM ARGB

2.5" / 3.5" Drive Bays (Combo)

2 (Max.2)
