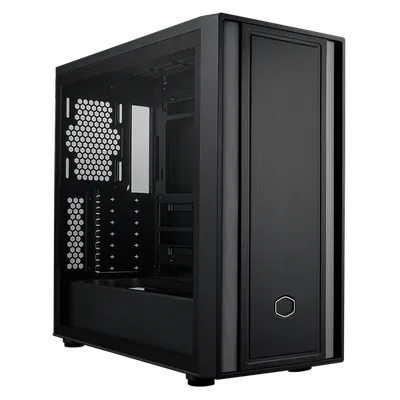

MasterBox 600 Lite

Front I/O

1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 1 Type C, 1x 3.5mm Combo

Effekt

600 W

Chassityp

Mid Tower

Material

Steel, Plastic

Garanti

2 years

Dimensioner

474 230 481 mm (Incl. Protrusions), 465 230 465 mm (Excl. Protrusions)

Formfaktor

EATX

Max 120 mm-fläktar

4

Max 140 mm-fläktar

2

2.5"-fack

2

3.5"-fack

2

Max GPU-längd

410 mm

Max PSU-längd

210 mm

Expansionsplatser

7

Max kylarhöjd

170 mm

Radiatorstöd (topp)

120 / 140 / 240 / 280 / 360mm

Radiatorstöd (front)

120 / 140 / 240 / 280 / 360 / 420mm (Limit: 457*140*27mm)

Övriga specifikationer

Size

Mid Tower

Series

MasterBox Series

Volume

49.73L

Summary

• Back-connected motherboard support • Versatile Cooling Options • FineMesh Performance Front Panel • Room For Upgrades • Removable HDD cage

Subtitle

Powering Next generation

Warranty

2 years

Product URL

https://www.coolermaster.com/en-global/products/masterbox-600-lite.html

Category key

natdel

Dust Filters

Top, Bottom

Model Number

MasterBox 600 Lite Black:MB600L-KGNN-S00 MasterBox 600 Lite White:MB600L-WGNN-S00

Product slug

masterbox-600-lite

Category path

global/catalog/pc-cases/mid-towers/

Exterior Color

Black, White

Shopify handle

masterbox-600-lite

Storyblok slug

masterbox-600-lite

2.5" Drive Bays

2 (Max.6)

3.5" Drive Bays

2

Clearance - GFX

360mm, 410mm (w/o front radiator)

Clearance - PSU

170mm, 210mm (w/o HDD Cage)

Expansion Slots

7

Indexed content

MasterBox 600 Lite Commerce Cloud Storefront Reference Architecture Remove Product? Back-connected motherboard support 140mm SICKLEFLOW FANS REMOVABLE HDD CAGE Supports up to 2x3.5" HDD storage and 6× 2.5" SSD, the HDD cage is completely removable for improved access during assembly and system upgrades. FINEMESH PERFORMANCE FRONT PANEL Large mesh intakes offer unrestricted airflow and stellar thermals for demanding systems. Versatile Cooling Options Support for up to seven 120mm fans, with 360mm radiator support on the top and 420mm radiator support on the front, ensures that performance is not compromised. Hardware compatibility Specifications Downloads Product Sheet Product Sheet - Japanese Edition Manual About Us Support Join Us Resource Center

Source page type

sfcc-html

Fan Support - Top

3x 120mm / 2x 140mm

Fan Support - Rear

1x 120mm

Fan Support - Front

3x 120/140mm

Motherboard Support

ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9" / 30.5cmx27.7cm motherboards, may impact cable management)

Materials - Exterior

Steel, Plastic

Power Supply Support

ATX

I/O Panel - USB Ports

1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 1 Type C

Clearance - CPU Cooler

170mm

Dimensions (L x W x H)

474 x 230 x 481mm (Incl. Protrusions), 465 x 230 x 465mm (Excl. Protrusions)

Materials - Side Panel

Tempered Glass

Radiator Support - Top

120 / 140 / 240 / 280 / 360mm

Radiator Support - Rear

120mm

Radiator Support - Front

120 / 140 / 240 / 280 / 360 / 420mm (Limit: 457*140*27mm)

I/O Panel - Audio In / Out

1x 3.5mm Combo

Back Connector Motherboard Support

Yes

Cable Routing - Behind Motherboard Tray

33-35 mm
