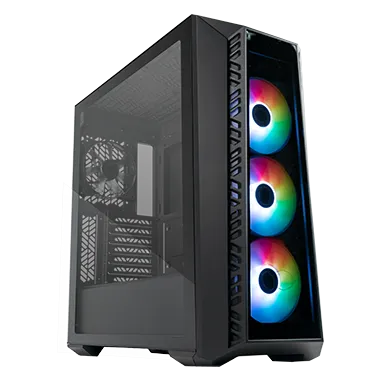

MasterBox 520

Front I/O

1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C, 1x 3.5mm Headset Jack (Audio+Mic)

Effekt

520 W

Chassityp

Mid Tower

Material

Steel, ABS Plastic, Tempered Glass

Garanti

2 years

Dimensioner

499 210 498 mm (Incl. Protrusions), 430 210 479 mm (Body size)

Formfaktor

EATX

Max 120 mm-fläktar

7

Max 140 mm-fläktar

4

2.5"-fack

3

3.5"-fack

2

Medföljande fläktar

Top: N/A; Front: 3x CF120 ARGB; Rear: 1x MasterFan Lite 120

Max GPU-längd

410 mm

Max PSU-längd

200 mm

Sidopanel

Tempered Glass

Expansionsplatser

7

Max kylarhöjd

165 mm

Radiatorstöd (topp)

120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)

Radiatorstöd (front)

120 / 140 / 240 / 280 / 360mm

Övriga specifikationer

Size

Mid Tower

Series

MasterBox Series

Summary

MasterBox 520 is the ideal chassis for satisfying the needs of both novice and experienced gamers. Tempered Glass Front Panel Three CF120 ARGB Fans Included ARGB Controller Included Removable Top Panel Screwless & Tool-Free TG Side Panel Removable HDD cage

Subtitle

Reaching New Brights

Warranty

2 years

Product URL

https://www.coolermaster.com/en-global/products/masterbox-520.html

Category key

natdel

Dust Filters

Front, Top, Bottom

Model Number

MasterBox 520: MB520-KGNN-S01, MasterBox 520 White: MB520-WGNN-S01

Product slug

masterbox-520

Category path

global/catalog/pc-cases/mid-towers/

Exterior Color

Black, White

Shopify handle

masterbox-520

Storyblok slug

masterbox-520

2.5" Drive Bays

3

3.5" Drive Bays

2

Clearance - GFX

410mm

Clearance - PSU

200mm (Recommended up to 170mm)

Expansion Slots

7

Indexed content

MasterBox 520 MasterBox 520 is the ideal chassis for satisfying the needs of both novice and experienced gamers. Remove Product? About Us Support Join Us Resource Center

Source page type

sfcc-html

Fan Support - Top

3x 120mm, 2x 140mm

I/O Panel - Other

1x Reset/ARGB button

Fan Support - Rear

1x 120mm

Fan Support - Front

3x 120mm, 2x 140mm

Motherboard Support

Mini-ITX, Micro-ATX, ATX, SSI-CEB, E-ATX* (*up to 12" x 10.7" motherboards, may impact cable management feature)

Included Accessories

ARGB Fans Hub

Materials - Exterior

Steel, ABS Plastic, Tempered Glass

Power Supply Support

ATX

I/O Panel - USB Ports

1x USB 3.2 Gen 1 Type A, 1x USB 3.2 Gen 2 Type C

Clearance - CPU Cooler

165mm

Dimensions (L x W x H)

499 x 210 x 498mm (Incl. Protrusions), 430 x 210 x 479mm (Body size)

Radiator Support - Top

120 / 140 / 240 / 280 / 360mm (recommended maximum thickness - 55mm)

Radiator Support - Rear

120mm

Pre-installed Fans - Top

N/A

Radiator Support - Front

120 / 140 / 240 / 280 / 360mm

Pre-installed Fans - Rear

1x MasterFan Lite 120

I/O Panel - Audio In / Out

1x 3.5mm Headset Jack (Audio+Mic)

Pre-installed Fans - Front

3x CF120 ARGB

Materials - Left Side Panel

Tempered Glass

Back Connector Motherboard Support

No
