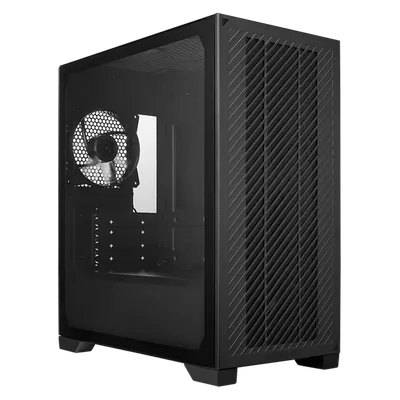

Elite 301 Lite

Front I/O

1x 3.5mm Combo

Effekt

301 W

Chassityp

Mini Tower

Garanti

2 years

Dimensioner

390 203.5 430 mm incl protrusions / 377 203.5 410 mm excl protrusions

Formfaktor

ATX

Max 120 mm-fläktar

6

Max 140 mm-fläktar

2

2.5"-fack

1

3.5"-fack

1

Medföljande fläktar

Rear: 1x 120mm Black Fan

Max GPU-längd

365 mm

Max PSU-längd

160 mm

Expansionsplatser

4

Max kylarhöjd

164 mm

Radiatorstöd (topp)

120 / 140 / 240 / 280mm

Radiatorstöd (front)

120 / 240mm

Övriga specifikationer

Size

Mini Tower

Series

Elite Series

Volume

34.13L (incl. Protrusions)

Summary

High in value and attention to detail, Cooler Master's Elite 301 lite offers users a cost effective, space conscious solution to gaming and computing needs. Elite 301 features a large intake grill to ensure a smooth, and efficient running system. The fully black coating and included PSU cover allows for clean builds that are visually appealing as well as functional.

Subtitle

Effortless Efficiency

Warranty

2 years

I/O Panel

1x USB 3.2 Gen 1 Type-A | 1x USB 3.2 Gen 1 Type-C

Materials

Steel, Plastic, Tempered Glass (Left Side Panel)

Product URL

https://www.coolermaster.com/en-global/products/elite-301-lite.html

Category key

natdel

Dust Filters

Top / Bottom / Front

Model Number

E301L-KGNN-S00

Product slug

elite-301-lite

Cable Routing

18.5mm

Category path

global/catalog/pc-cases/mini-towers/

Exterior Color

Black

Shopify handle

elite-301-lite

Storyblok slug

elite-301-lite

2.5" Drive Bays

1 (Max. 2)

3.5" Drive Bays

1

Clearance - GFX

365mm (without front fans & radiator)

Clearance - PSU

160mm

Expansion Slots

4

Indexed content

Elite 301 Lite Commerce Cloud Storefront Reference Architecture Remove Product? Tool-less Intake Panel Constructed with a substantially large, unrestricted intake grill to ensure that the system runs cool and efficiently. The front panel could be easily removed by magnets, making it easier for daily maintenance. Versatile Cooling Options Supports up to six fans and 280mm radiator to ensure that performance is not compromised. Large Support, Minimized Footprint Despite its compact size, Elite 301 lite supports up to 365mm graphics cards, 163.5mm CPU Coolers, providing solid potential for future upgrades. Breathable Power Supply Shroud The PSU cover is ventilated on top of the power supply location, allowing actively cooled units to be installed in multiple orientations, while maintaining support for passively cooled power supplies. Specifications Downloads Product Sheet Product Sheet - Traditional Chinese Edition Product Sheet - Japanese Edition Manual About Us Support Join Us Resource Center

Source page type

sfcc-html

Fan Support - Top

2x 120mm / 2x 140mm

Fan Support - Rear

1 x 120mm

Fan Support - Front

3x 120mm

Motherboard Support

ITX / Micro ATX

Power Supply Support

ATX

Clearance - CPU Cooler

163.5mm

Dimensions (L x W x H)

390 x 203.5 x 430mm incl protrusions / 377 x 203.5 x 410mm excl protrusions

Radiator Support - Top

120 / 140 / 240 / 280mm

Radiator Support - Rear

120mm

Radiator Support - Front

120 / 240mm

Pre-installed Fans - Rear

1x 120mm Black Fan

I/O Panel - Audio In / Out

1x 3.5mm Combo
