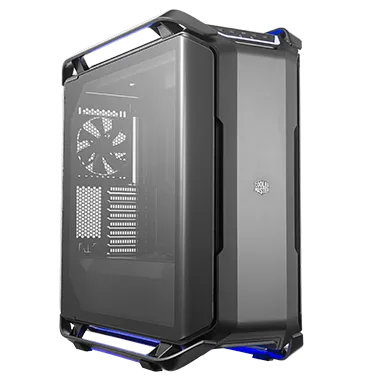

COSMOS C700P Black Edition

Vikt

22 kg

Chassityp

Full Tower

Dimensioner

639 306 651 mm

Formfaktor

EATX

2.5"-fack

4

Medföljande fläktar

Rear: 1x 140mm, 1200RPM; Front: 2x 140mm, 1200RPM

Max GPU-längd

490 mm

Expansionsplatser

8

Max kylarhöjd

198 mm

Radiatorstöd (topp)

280mm | 240mm | 140mm | 120mm | 360mm & 420mm (remove ODD, maximum thickness clearance 70mm)

Radiatorstöd (front)

420mm (requires removal of ODD cage) | 360mm | 280mm | 240mm | 140mm | 120mm

Övriga specifikationer

Size

Full Tower

Series

COSMOS Series

Weight

22.2 kg

Summary

Expanding the COSMOS, Highly Versatile Layout, Extensive Cable Cover System, Rich Connectivity

Color(s)

Black

Subtitle

Raising the Bar(s)

I/O Panel

4x USB 3.0 | 1x USB 3.1 Gen 2 Type-C | 1x 3.5mm Audio Jack | 1x 3.5mm Mic Jack | Fan Speed | RGB Control Buttons

Materials

Steel | Curved Tempered Glass

Product URL

https://www.coolermaster.com/en-global/products/cosmos-c700p-black-edition.html

Category key

natdel

Dust Filters

Top | Front | Bottom

Model Number

MCC-C700P-KG5N-S00

Product slug

cosmos-c700p-black-edition

Category path

global/catalog/pc-cases/full-towers/

Shopify handle

cosmos-c700p-black-edition

Storyblok slug

cosmos-c700p-black-edition

2.5" Drive Bays

4

Clearance - GFX

320mm (w/ 3.5" HDD cage) | 490mm (w/o 3.5" HDD cage)

Expansion Slots

8

Indexed content

COSMOS C700P Black Edition Commerce Cloud Storefront Reference Architecture Remove Product? Upgraded Cover System The PSU Shroud advances in modularity with two independent parts while the cable cover system features 3 separate pieces, each with the capability of mounting storage or a pump for liquid cooling. Flat Radiator Brackets Flat radiator brackets offer an easier maintenance, mounting, and removal process for liquid cooling with more clearance for push-pull configurations. 17 Awards Curved Tempered Glass Side Panel A lightly-tinted tempered glass side panel with two curved edges offer a wide view of the system build. Rich Connectivity HIGHLY VERSATILE LAYOUT The unique frame design supports a conventional, chimney, inverse layout, or a fully customized layout. The motherboard tray is also removable for installation outside of the chassis. 16 radiator slots 18 fan slots Alternate Rear Panel To support exotic layouts with motherboards or graphics card oriented vertically, an alternate panel with rubber grommets is included to allow a pass-through for external cables. EXTENSIVE CABLE COVER SYSTEM The 3 included covers can be placed on either the M. Port or on the mid-plate, with the ability to mount SSD storage or a reservoir. Specifications Downloads Product Sheet Manual About Us Support Join Us Resource Center

5.25" Drive Bays

1

Lighting Support

RGB Control Board | 1x RGB Connection

Source page type

sfcc-html

Fan Support - Top

3x 120/140mm

Fan Support - Rear

1x 120/140mm

Fan Support - Front

3x 120/140mm

Motherboard Support

E-ATX | ATX | Micro ATX | Mini ITX

Fan Support - Bottom

2x 120/140mm*

Power Supply Support

Bottom Mount | ATX PS2

Clearance - CPU Cooler

198mm

Dimensions (L x W x H)

639 x 306 x 651mm

Radiator Support - Top

280mm | 240mm | 140mm | 120mm | 360mm & 420mm (remove ODD, maximum thickness clearance 70mm)

Radiator Support - Rear

120mm | 140mm

Radiator Support - Front

420mm (requires removal of ODD cage) | 360mm | 280mm | 240mm | 140mm | 120mm

Pre-installed Fans - Rear

1x 140mm, 1200RPM

Radiator Support - Bottom

120mm | 140mm | 240mm

Pre-installed Fans - Front

2x 140mm, 1200RPM

2.5" / 3.5" Drive Bays (Combo)

4
