Ljudnivå

14 dBA

Vikt

2.23 kg

Fläktstorlek

120 mm

Modulär

Full

Effekt

550 W

Fläkthastighet

1800 RPM

Garanti

10 years

ATX-version

ATX 3.1

Dimensioner

160 × 150 × 86mm

Effektivitet

80+ Gold

Formfaktor

ATX

Lagertyp

Rifle

Skydd

OTP, OCP, OPP, SCP, OVP, UVP, SIP

EPS-kontakter

1

SATA-kontakter

5

12VHPWR-kontakter

1

PCIe 8-pin-kontakter

2

Övriga specifikationer

CB

✓

CE

✓

CU

✓

CCC

✓

ErP

✓

FCC

✓

Fan

Silence-optimized be quiet! fan

RCM

✓

BSMI

✓

IRAM

-

PATA

2

RoHS

✓

TÜV

✓

UKCA

✓

WEEE

✓

Color

Black

Model

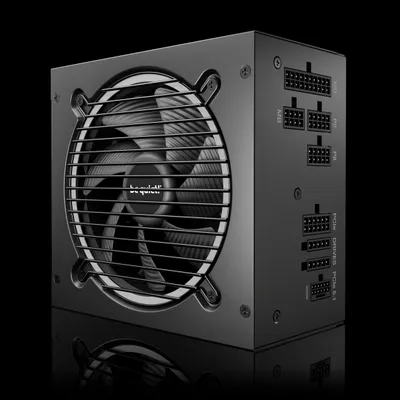

PURE POWER 13 M | 550W

cRUus

-

Screws

✓

Triman

-

cTUVus

✓

+5V (A)

20

-12V (A)

0,3

EAN code

4260052192160

P4 (CPU)

-

Topology

LLC + SR + DC/DC

+12V1 (A)

45.8

+12V2 (A)

N/A

+12V3 (A)

N/A

+12V4 (A)

N/A

+12V5 (A)

N/A

+12V6 (A)

N/A

+3.3V (A)

20

+5Vsb (A)

3

RRP (€)

94.90

Cable ties

✓

Energy Star

8.0

Flat cables

✓

FDD (Floppy)

-

Thumb screws

-

No. of cables

6

Voltage (Vac)

100 - 240

Article number

BP024EU

Cybenetics ETA

-

Frequency (Hz)

50 - 60

Modern standby

✓

Peak power (W)

600

Sleeved cables

✓

Motor technology

4-pole fan motor

Overclocking key

-

Cybenetics LAMBDA

-

Input current (A)

10 / 5

PCI-e 6-pin (GPU)

-

Velcro cable ties

-

dB(A) at 10% load

7.5

dB(A) at 20% load

7.5

dB(A) at 50% load

8.6

dB(A) at 100% load

14

Form factor EPS 12V

Version 2.92

Digitally controlled

-

User manual languages

CN, DE, EN, ES, FR, JP, PL, RU, TW

Power good signal (ms)

100 - 150

12V single rail operation

✓

Maximum cable length (cm)

95

Pieces per packaging unit

6

Power factor at 100% load

>0.98

ATX-Motherboard (20+4-pin)

1

Gross weight, package (kg)

3.0

SFX-to-ATX adapter bracket

-

Max. combined power 12V (W)

550

OPP (over power protection)

✓

Average life time (h / 25°C)

>100,000

Hold-up time at 80% load (ms)

31.49

OCP (over current protection)

✓

OVP (over Voltage protection)

✓

Hold-up time at 100% load (ms)

21.68

SCP (short circuit protection)

✓

UVP (under Voltage protection)

✓

Efficiency (%) at 230V, 2% load

70.3

Gross weight, shipping box (kg)

17.9

Max. combined power 12V-2x6 (W)

300

SIP (Surge & Inrush protection)

✓

Cable length to motherboard (cm)

55

Efficiency (%) at 230V, 10% load

90.1

Efficiency (%) at 230V, 20% load

92.8

Efficiency (%) at 230V, 50% load

93.8

Multi-rail operation (12V rails)

-

Power consumption in standby (W)

<0.1

Efficiency (%) at 230V, 100% load

92.1

Max. combined power 3.3V + 5V (W)

120

OTP (over temperature protection)

✓

Operating temperature up to (°C)

40

Dimensions, package (L x W x H), (mm)

320 x 210 x 133

International hotline / free of charge

✓ / DE, FR

Express replacement service in first year

-

OCK slot bracket with switch / OCK jumper

-

Dimensions, shipping box (L x W x H), (mm)

580 x 325 x 233
