- CB
- ✓
- CE
- ✓
- CU
- ✓
- CCC
- -
- ErP
- ✓
- FCC
- ✓
- Fan
- Pure Wings 3
- RCM
- -
- BSMI
- -
- IRAM
- -
- PATA
- 1
- RoHS
- ✓
- TÜV
- ✓
- UKCA
- ✓
- WEEE
- ✓
- Color
- Black
- Model

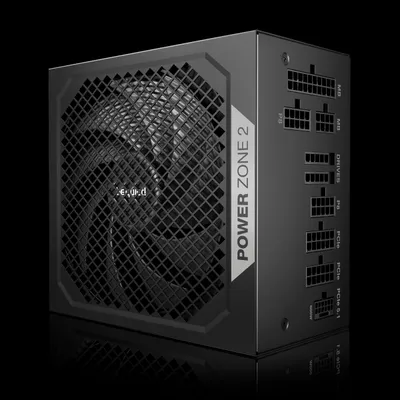

- POWER ZONE 2 | 750W
- cRUus
- -
- Screws
- ✓
- Triman
- ✓
- cTUVus
- ✓
- +5V (A)
- 20
- -12V (A)
- 0.3
- EAN code
- 4260052191361
- P4 (CPU)
- 1
- Topology
- LLC + SR + DC/DC
- +12V1 (A)
- 62.5
- +12V2 (A)
- N/A
- +12V3 (A)
- N/A
- +12V4 (A)
- N/A
- +12V5 (A)
- N/A
- +12V6 (A)
- N/A
- +3.3V (A)
- 20
- +5Vsb (A)
- 3
- RRP (€)
- 149.90
- Cable ties
- ✓
- Energy Star
- 8.0
- Flat cables
- ✓
- FDD (Floppy)
- -
- Thumb screws
- -
- No. of cables
- 8
- Voltage (Vac)
- 100 - 240
- Article number
- BP006EU
- Cybenetics ETA
- Platinum
- Frequency (Hz)
- 50 - 60
- Modern standby
- ✓
- Peak power (W)
- 820
- Sleeved cables
- ✓
- Motor technology
- 4-pole fan motor
- Overclocking key
- -
- Cybenetics LAMBDA
- A++
- Input current (A)
- 10 / 5
- PCI-e 6-pin (GPU)
- -
- Velcro cable ties
- -
- dB(A) at 10% load
- 6.5
- dB(A) at 20% load
- 6.5
- dB(A) at 50% load
- 6.5
- dB(A) at 100% load
- 15.8
- Form factor EPS 12V
- Version 2.92
- Digitally controlled
- -
- User manual languages
- DE, EN, FR, PL, ES, RU, UA
- Power good signal (ms)
- 100 - 150
- 12V single rail operation
- ✓
- Maximum cable length (cm)
- 100
- Pieces per packaging unit
- 6
- Power factor at 100% load
- >0.98
- ATX-Motherboard (20+4-pin)
- 1
- Gross weight, package (kg)
- 3.21
- SFX-to-ATX adapter bracket
- -
- Max. combined power 12V (W)
- 750
- OPP (over power protection)
- ✓
- Average life time (h / 25°C)
- >100,000
- Hold-up time at 80% load (ms)
- 32.9
- OCP (over current protection)
- ✓
- OVP (over Voltage protection)
- ✓
- Hold-up time at 100% load (ms)
- 24.5
- SCP (short circuit protection)
- ✓
- UVP (under Voltage protection)
- ✓
- Efficiency (%) at 230V, 2% load
- 65.5
- Gross weight, shipping box (kg)
- 19.26
- Max. combined power 12V-2x6 (W)
- 600
- SIP (Surge & Inrush protection)
- ✓
- Cable length to motherboard (cm)
- 60
- Efficiency (%) at 230V, 10% load
- 89.4
- Efficiency (%) at 230V, 20% load
- 93.0
- Efficiency (%) at 230V, 50% load
- 94.2
- Multi-rail operation (12V rails)
- -
- Power consumption in standby (W)
- <0.18
- Efficiency (%) at 230V, 100% load
- 92.5
- Max. combined power 3.3V + 5V (W)
- 120
- OTP (over temperature protection)
- ✓
- Operating temperature up to (°C)
- 40
- Dimensions, package (L x W x H), (mm)
- 328 x 248 x 102
- International hotline / free of charge
- ✓ / DE, FR, US
- Express replacement service in first year
- DE, FR
- OCK slot bracket with switch / OCK jumper
- -
- Dimensions, shipping box (L x W x H), (mm)
- 651 x 282 x 346
