Ljudnivå

27.2 dBA

Vikt

1.78 kg

Fläktstorlek

140 mm

Modulär

Full

Effekt

1000 W

Fläkthastighet

2100 RPM

Garanti

10 years

ATX-version

ATX 3.1

Dimensioner

160 × 150 × 86mm

Effektivitet

80+ Platinum

Formfaktor

ATX

Lagertyp

Rifle

Skydd

OTP, OCP, OPP, SCP, OVP, UVP, SIP

EPS-kontakter

2

SATA-kontakter

7

12VHPWR-kontakter

1

PCIe 8-pin-kontakter

3

Övriga specifikationer

CB

✓

CE

✓

CU

✓

CCC

-

ErP

✓

FCC

✓

Fan

Pure Wings 3

RCM

-

BSMI

-

IRAM

-

PATA

1

RoHS

✓

TÜV

✓

UKCA

✓

WEEE

✓

Color

Black

Model

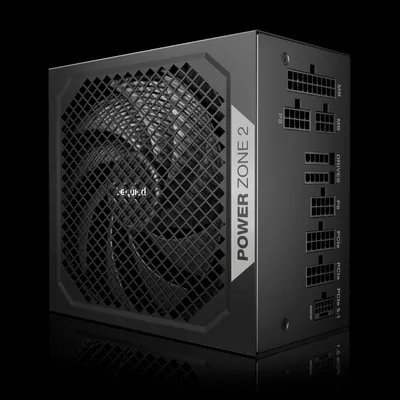

POWER ZONE 2 | 1000W

cRUus

-

Screws

✓

Triman

✓

cTUVus

✓

+5V (A)

20

-12V (A)

0.5

EAN code

4260052191385

P4 (CPU)

1

Topology

LLC + SR + DC/DC

+12V1 (A)

83.3

+12V2 (A)

N/A

+12V3 (A)

N/A

+12V4 (A)

N/A

+12V5 (A)

N/A

+12V6 (A)

N/A

+3.3V (A)

20

+5Vsb (A)

3

RRP (€)

189.90

Cable ties

✓

Energy Star

8.0

Flat cables

✓

FDD (Floppy)

-

Thumb screws

-

No. of cables

8

Voltage (Vac)

100 - 240

Article number

BP008EU

Cybenetics ETA

Platinum

Frequency (Hz)

50 - 60

Modern standby

✓

Peak power (W)

1070

Sleeved cables

✓

Motor technology

4-pole fan motor

Overclocking key

-

Cybenetics LAMBDA

A+

Input current (A)

13 / 6.5

PCI-e 6-pin (GPU)

-

Velcro cable ties

-

dB(A) at 10% load

6.5

dB(A) at 20% load

6.5

dB(A) at 50% load

6.5

dB(A) at 100% load

27.2

Form factor EPS 12V

Version 2.92

Digitally controlled

-

User manual languages

DE, EN, FR, PL, ES, RU, UA

Power good signal (ms)

100 - 150

12V single rail operation

✓

Maximum cable length (cm)

100

Pieces per packaging unit

6

Power factor at 100% load

>0.98

ATX-Motherboard (20+4-pin)

1

Gross weight, package (kg)

3.28

SFX-to-ATX adapter bracket

-

Max. combined power 12V (W)

999.6

OPP (over power protection)

✓

Average life time (h / 25°C)

>100,000

Hold-up time at 80% load (ms)

30.5

OCP (over current protection)

✓

OVP (over Voltage protection)

✓

Hold-up time at 100% load (ms)

22.7

SCP (short circuit protection)

✓

UVP (under Voltage protection)

✓

Efficiency (%) at 230V, 2% load

66.9

Gross weight, shipping box (kg)

19.65

Max. combined power 12V-2x6 (W)

600

SIP (Surge & Inrush protection)

✓

Cable length to motherboard (cm)

60

Efficiency (%) at 230V, 10% load

89.8

Efficiency (%) at 230V, 20% load

93.0

Efficiency (%) at 230V, 50% load

94.0

Multi-rail operation (12V rails)

-

Power consumption in standby (W)

<0.18

Efficiency (%) at 230V, 100% load

92.6

Max. combined power 3.3V + 5V (W)

120

OTP (over temperature protection)

✓

Operating temperature up to (°C)

40

Dimensions, package (L x W x H), (mm)

328 x 248 x 102

International hotline / free of charge

✓ / DE, FR, US

Express replacement service in first year

DE, FR

OCK slot bracket with switch / OCK jumper

-

Dimensions, shipping box (L x W x H), (mm)

651 x 282 x 346
