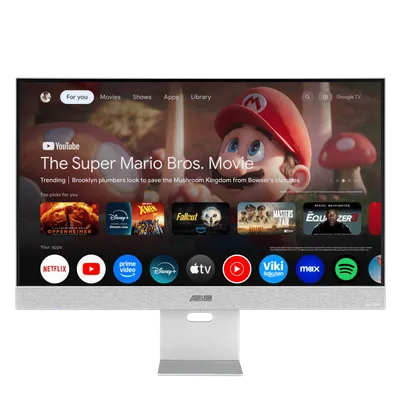

ZenScreen Smart Monitor MS32UC

Övriga specifikationer

Audio

Speaker : Ja (5 W x2) / Audio Technology : Audio by Harman Kardon

Slogan

ASUS ZenScreen Smart MS32UC – 31.5-inch UHD (3840 x 2160) IPS panel with 98% DCI-P3, Google TV, Harman Kardon speakers, USB Type-C (90 W PD), HDMI, DisplayPort, wireless display capabilities, multi-control, multi-platform live streaming

Display

Panel Size (inch) : 31.5 / Aspect Ratio : 16:09 / Display Viewing Area (H x V) : 697.3mm × 392.2 mm / Display Surface : Anti-Glare / Backlight Type : LED / Panel Type : IPS / Viewing Angle (CR≧10, H/V) : 178°/ 178° / Pixel Pitch : 0,182mm / Resolution : 3840x2160 / Color Space (DCI-P3) : 98% / Brightness (HDR, Peak) : 400 cd/㎡ / Brightness (Typ.) : 350cd/㎡ / Contrast Ratio (HDR, Max) : 100,000,000:1 / Contrast Ratio (Typ.) : 1200:01:00 / Display Colors : 1073.7M (10 bit) / Response Time : 5ms(GTG) / Refresh Rate (Max) : Typ. 60 Hz / HDR (High Dynamic Range) Support : HLG / HDR10+ / HDR10 / Protection Glass : Nej / Flicker-free : Ja

Features

SPLENDID Technology : Ja / Color Temp. Selection : Yes(4 modes) / Color Adjustment : 6-axlig justering(R,G,B,C,M,Y) / Gamma Adjustment : Yes (Support Gamma 2.0/2.1/2.2/2.3/2.4) / HDCP : Yes / Dark Boost : Ja / DisplayWidget : Ja / Low Blue Light : Yes

I/O Ports

USB-C x 1 / DisplayPort 1.4 x 1 / HDMI(v2.0) x 1 / USB Hub : 2x USB 2.0 Type-A / Earphone Jack : Ja / USB-C Power Delivery : 90 W

Certificate

FSC MIX / VESA DisplayHDR 400 / TÜV Low Blue Light / TÜV Flicker-free / Energy Star

Smart Service

Operating System : Android 11 / Google Home Device Support : Yes / Voice Control : Yes / Remote Access : No / Multi View : Yes / Multi Control : Yes / Multi-Platform Streamer Plus : Yes / HDMI Reverse Control : Yes

Weight (Esti.)

Net Weight : 8.6 kg (18.96 lbs) / Net Weight without Stand : 6.92 kg (15.26 lbs) / Gross Weight : 11.5 kg (25.35 lbs)

Signal Frequency

Digital Signal Frequency : 30~133.2 KHz(H) / 40~60Hz(V)

Mechanical Design

Tilt : Yes (+20° ~ -5°) / Height Adjustment : 0~100mm / VESA Wall Mounting : 100x100 mm

Power Consumption

Power Consumption : 32W / Power Saving Mode : <0.5W / Power Off Mode : <0,5 W / Voltage : 100-240V, 50/60Hz

Wireless Function

Wireless Projection : Yes / WiFi : Yes(Embedded)

Dimensions (Esti.)

Phys. Dimension (W x H x D) : 71.4 x 57.9 x 17.7 cm (28.11" x 22.80" x 6.97") / Phys. Dimension without Stand (W x H x D) : 71.4 x 44.9 x 5.0 cm (28.11" x 17.68" x 1.97") / Box Dimension (W x H x D) : 80.9 x 14.2 x 52.0 cm (31.85" x 5.59" x 20.47")

Accessories (vary by regions)

Garantikort / USB-C-kabel / Fjärrkontroll / Snabbstartsmanual / Strömsladd / HDMI-kabel / Bildskärmsuttags-kabel / AAA Battery x2
