ZenScreen Ink MB14AHD

Övriga specifikationer

Note

* Battery goes with inbox stylus pen, please remember to remove isolation sheet in the stylus pen in the first use / * Please be noted that the battery size/format for the stylus pen is AAAA / * The warranty period of stylus pen is 12 months

Audio

Speaker : No

Slogan

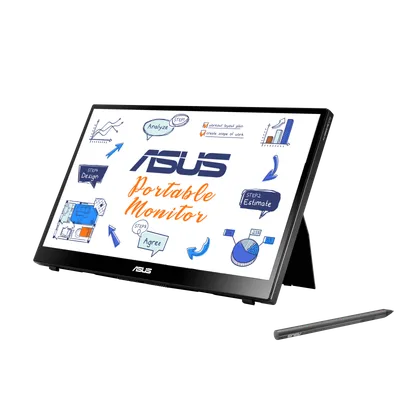

ASUS ZenScreen Ink MB14AHD portable monitor – 14-inch FHD (1920 x 1080), IPS, 10-point touch, Stylus Pen, USB Type-C, Micro HDMI, ergo kickstand, tripod socket, ASUS Flicker Free and Low Blue Light technologies

Battery

Battery : NA

Display

Panel Size (inch) : 14 / Aspect Ratio : 16:09 / Display Viewing Area (H x V) : 309.37 x 174.02 mm / Display Surface : Skina / Backlight Type : LED / Panel Type : IPS / Viewing Angle (CR≧10, H/V) : 170°/ 170° / Pixel Pitch : 0.161mm / Resolution : 1920x1080 / Color Space (Adobe RGB) : TBD / Color Space (DCI-P3) : TBD / Color Space (Rec.2020) : TBD / Brightness (Typ.) : 220cd/㎡ / Contrast Ratio (Typ.) : 800:01:00 / Display Colors : 262K / Response Time : 5ms(GTG) / Refresh Rate (Max) : Typ. 60 Hz / Touch : PCT + MPP2.0 Active Pen / Protection Glass : Ja / Flicker-free : Ja

Features

Trace Free Technology : Ja / SPLENDID Technology : Yes / Color Temp. Selection : Yes(4 modes) / GamePlus : Ja / QuickFit : Yes / HDCP : Ja, 1.4 / Yes / Dark Boost : Ja / DisplayWidget : Ja, DisplayWidget Lite / Low Blue Light : Yes

I/O Ports

USB-C x 2 (DP Alt Mode) / Micro HDMI x 1 / Earphone Jack : Ja

Certificate

TÜV Low Blue Light / TÜV Flicker-free

Weight (Esti.)

Net Weight without Stand : 0.87 kg (1.92 lbs) / Gross Weight : 2.64 kg (5.82 lbs)

Signal Frequency

Digital Signal Frequency : HDMI：24Khz~83KHz / USB-C: 83KHz / Analog Signal Frequency : NA

Mechanical Design

Tilt : Nej / Height Adjustment : No / 1/4" Tripod Socket : Yes

Power Consumption

Power Consumption : 8.21 W / Power Saving Mode : <0.5W / Power Off Mode : <0.5W / <0,5 W / Voltage : 100-240V, 50/60Hz

Dimensions (Esti.)

Phys. Dimension without Stand (W x H x D) : 32.42 x 20.12 x 1.25 cm (12.76" x 7.92" x 0.49") / Box Dimension (W x H x D) : 45.40 x 31.00 x 7.80 cm (17.87" x 12.20" x 3.07")

Accessories (vary by regions)

ZenScreen-fodral / Garantikort / USB-C till A-kabel / USB-C-kabel / USB typ-C till A-adapter / Snabbstartsmanual / Strömadapter / Mikro HDMI till HDMI-kabel / ASUS Pen (MPP2.0)

Operation Temperature / Humidity

Operation Temperature : NA / Operation Humidity : NA
