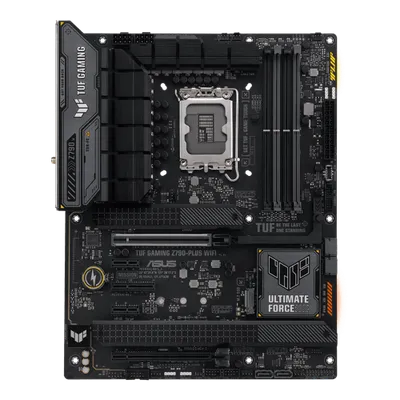

TUF GAMING Z790-PLUS WIFI

WiFi

WiFi 6

Sockel

LGA 1700

Chipset

Intel Z790

M.2-platser

4

Ethernet

2.5 Gigabit

Max minne

192 GB

PCIe-platser

1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x4, 2x PCIe 3.0 x1

SATA-portar

4

Ljudkodek

Realtek

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

DisplayPort x2, HDMI x2

Max minneshastighet

7200 MHz

Övriga specifikationer

EAN

4711387014509

LAN

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Typ

HD-ljud (8 kanaler)

USB

Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Minne

DDR5

Wi-Fi

Ja

Art.nr

9366286

Socket

LGA1700

Teknik

DDR5

Chipset

Intel Z790

BIOS-typ

AMI

Kretstyp

Intel Z790

Nätverk

2.5 Gigabit LAN

Bluetooth

Ja

Ljudchipp

Realtek S1220A

Modell-nr

90MB1D80-M0EAY0

RAM-stöd

4 DIMM-kortplatser - DDR5, icke ECC, ej buffrad

Antal HDMI

1

Bussklocka

4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.)

Egenskaper

Minnesarkitektur med dubbel kanal, Intel Extreme Memory Profiles (XMP)

Formfaktor

ATX

Trådlöst

Wi-Fi 6E, Bluetooth

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS Wi-Fi moving antenna 1 x TUF GAMING sticker 2 x M.2 Rubber Packages 1 x Screw package for M.2 SSD Documentation 1 x TUF Certification card 1 x User guide

Audio Codec

Realtek ALCS1220A

Grafikstöd

Integrerad grafik via CPU

Gränssnitt

1 x DisplayPort 1 x HDMI 1 x USB-C 3.2 Gen2x2 2 x USB 3.2 Gen 2 1 x USB-C 3.2 Gen 2 4 x USB 3.2 Gen 1 1 x ljudutgång - mini-jack 1 x mikrofon - mini-jack 1 x ljudutgång (center/subwoofer) - mini-jack 1 x ljudutgång (bakre) - mini-jack 1 x ljudingång - mini-jack 1 x SPDIF-utgång 1 x LAN (2.5Gigabit Ethernet) 2 x antenn

Tillverkare

ASUS

HDMI-version

2.1

Produktlänk

https://www.asus.com/motherboards-components/motherboards/tuf-gaming/tuf-gaming-z790-plus-wifi/

RAID-nivåer

0, 1, 5, 10

Manageability

WOL by PME, PXE

Minneskanaler

Dual-channel

Lagringsportar

4 x SATA-600 (RAID), 4 x M.2

S/PDIF-utgång

Ja

Typ av produkt

Moderkort - ATX

Wi-Fi-standard

Wi-Fi 6 (802.11ax)

BIOS-egenskaper

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ-läge

Maximal storlek

128 GB

Processorsockel

LGA 1700

RAID-egenskaper

Intel Rapid Storage Technology

Strömkontakter

24-pin kontakt för huvudström, 2 x 8-stifts ATX12V-kontakter

Max. RAM-storlek

128 GB

Operating System

Windows 11, Windows 10 64-bit

Processor-socket

1 x LGA1700-uttag

Special Features

ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 headers

Bluetooth-version

5.3

FabrikatProduktnr

4711387014509

Hörlursutgångar

1

Software Features

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Produktbeskrivning

ASUS TUF GAMING Z790-PLUS WIFI - moderkort - ATX - LGA1700-uttag - Z790

USB 2.0 anslutning

2

Antal Displayportar

1

Antal minnesplatser

4

DisplayPort-version

1.4

Hårdvaruegenskaper

Intel Turbo Boost Max Technology 3.0, Intel Turbo Boost-teknologi 2.0, ASUS OptiMem II, TUF LANGuard, automatisk enhets-igenkänning, detekteringsteknik för ljudjack, ASUS Aura Sync, ASUS DIGI+ VRM, ASUS ProCool, ASUS SafeSlot, ASUS Stainless Steel Back I/O, CPU-uttagsskydd, ESD Guards, M.2 kylfläns, M.2 Q-Latch, överspänningsskydd, PCIe Slot Q-Release, förmonterat I/O-skydd, Q-DIMM, Q-LED, Q-Slot, SafeDIMM, VRM-kylelementskonstruktion, Preboot eXecution Environment (PXE), Water Pump Header, 16+1 Phase Power Design, 60 A strömsteg, Dr.MOS MOSFET, 6 Layer PCB, TUF Components

Interna gränssnitt

1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 4 x USB 2.0 - header 1 x ljud - header 1 x Thunderbolt - header 1 x seriell - header

Lagringsgränssnitt

SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5 SATA-600 / PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Ljudutgångskanaler

7.1 kanaler

Medföljande kablar

2 x Seriell ATA-kabel

Minnets hastigheter

4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200 MHz

USB/FireWire-portar

1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB4 + 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Viloläge/väckning

Wake on LAN (WOL), wake on PME

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port

Maximalt internminne

128 GB

Moderkort formfaktor

ATX

Moderkortets chipset

Intel Z790

Nätverksgränssnitt

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Processortillverkare

AMD

Antal M.2 (M)-platser

4

Expansionskortplatser

1 x CPU 4 x DIMM 288-stift 1 x PCIe 5.0 x16 1 x PCIe 4.0 x16 (x4-läge) 1 x PCIe 4.0 x4 2 x PCIe 3.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M-plats) 2 x M.2 socket (2242/2260/2280/22110 M.2 Key M-plats)

Standarder som följs

HD-ljud

Antal Ethernet (RJ-45)

1

Inkluderade tillbehör

ASUS Wi-Fi rörlig antenn, TUF GAMING-dekal, 2 st. M.2-gummipaket, m.2-skruvpaket, TUF-certifikat

Kompatibla processorer

(stöder 12:e och 13:e generationens Intel Core / Pentium Gold / Celeron)

Minnestyper som stöds

DDR5-SDRAM

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header

Antal SATA III kontakter

4

Antalet COM-anslutningar

1

Medföljande programvara

Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, ASUS TurboV EVO Utility, PC Cleaner, ASUS TUF GAMING CPU-Z, DTS Audio Processing, MyAsus, Norton 360 for Gamers, WinRAR

Thunderbolt-anslutningar

1

Registrerad eller buffrad

Ej buffrad

Maximalt antal processorer

1

Stöder Ram Integrity Check

Icke ECC

Typ av ethernet-gränssnitt

2.5 Gigabit Ethernet

Uttag för mikrofon/linje in

Ja

Antal anslutningar för fläktar

4

PCI Express x16 (Gen 4.x) platser

1

PCI Express x16 (Gen 5.x) platser

1

Stöd för parallellprocessteknik

Stöds inte

Antal USB 3.2 Gen 2x2 typ C-portar

1

PCI Express x1 (Gen 3.x)-kortplatser

2

USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar

1

USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar

1

Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar

4

Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar

2

Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar

1
