Ja, Ja, Ja, • Maximum Manually Assign IP Address Rule : 64, Ja
VPN
Instant Guard, Ja, Ja, Ja, VPN Client WireGuard, Ja, Ja, Ja, VPN Server WireGuard, VPN Fusion, Support Surfshark, Support Nord VPN
WAN
• IPSec / • Static IP / • Automatic IP / • L2TP / • PPTP / • PPPoE / Internet Connection Type :, Nej, Nej, 4G / 5G Auto Mobile Tethering, Ja, • Maximum Port Forwarding Rule : 64, Ja, • Maximum Port Triggering Rule : 32, Ja, Ja, • PPPoE Relay / • SIP Pass-Through / • H.323 Pass-Through / • RTSP Pass-Through / • IPSec Pass-Through / • L2TP Pass-Through / • PPTP Pass-Through
Game
Ja, Mobile Game Mode, Gear Accelerator, OpenNAT (Game Profile), Gaming Port
AiMesh
Ja, Ja, Ja
Memory
256 MB Flash and 1 GB RAM
Slogan

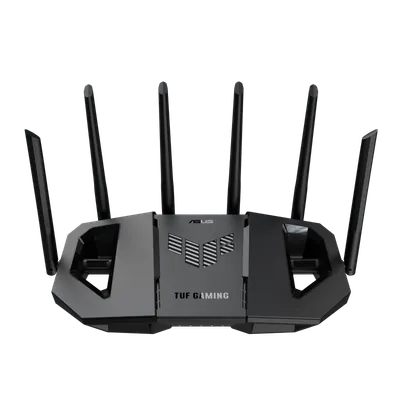

ASUS TUF Gaming BE9400 Tri Band WiFi 7 (802.11be) Extendable Gaming Router, Quad 2.5G ports, 3-step Port Forwarding, Smart Home Master, AiMesh support, and AiProtection for Network Security.
AiProtection Pro, VPN, WPA/WPA2/WPA3 Personal / WPA/WPA2/WPA3 Enterprise / Open System & OWE, Ja, Ja, DNS-over-TLS, Ja, Security Scan, Ja, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64
Wireless
MU-MIMO, Ja, Ja, • Maximum MAC Filters : 64, Ja, Ja, Ja, Ja
I/O Ports
1 x 2.5Gbps for WAN / 3 x 2.5Gbps for LAN / 1 x USB 3.2 Gen1
Processor
1.5GHz Quad-core Processor
AiProtection
AiProtection, Ja, Ja, Ja
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access) / Beamforming: standard-based and universal / 4096-QAM high data rate / 20/40/80/160/320 MHz bandwidth
Power Supply
AC Input : 110V~240V(50~60Hz) / DC Output : 12 V with max. 2.5 A current
Guest Network
Ja, Support Guest Network, • Maximum Guest Network Rule : 2.4 GHz + 5 GHz: 3, Guest Network Connection Time Limit, Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
LED Indicator
WAN(Internet) x1 / 6GHz x 1 / 5GHz x 1 / 2.4GHz x1 / Power x1
Administration
Ja, Ja, Ja, Ja, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
Operating Mode
Repeater Mode / Media Bridge Mode / Access Point Mode / AiMesh Node Mode / Wireless Router Mode
User Interface
WEB: ASUSWRT, APP: ASUS Router APP
WiFi Data Rate
WiFi 7 (802.11be) (6GHz): up to 5764 Mbps / WiFi 7 (802.11be) (5GHz): up to 2882 Mbps / WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
Package Content
TUF-BE9400 Tri Band Gaming Router / RJ-45 cable / Power adapter / Quick Start Guide / Warranty card
Product Segment
BE9400 ultimate BE performance : 688+2882+5764 Mbps
Traffic Control
Ja, Ja, Ja, -- Maximum Bandwidth Limiter Rule : 32, Ja, Ja, Ja, Ja, Ja, Ja, • Traffic Analysis Period : Daily, Weekly, Monthly, Ja
