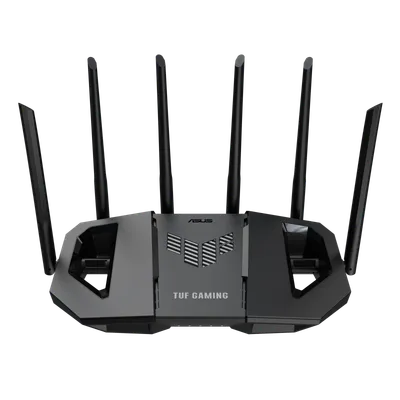

TUF Gaming BE6500 (TUF-BE6500)

WiFi

WiFi 7

5 GHz

Ja

6 GHz

Nej

Ethernet

2.5 Gbps

2,4 GHz

Ja

Mesh-stöd

AiMesh

Övriga specifikationer

LAN

Ja, Ja, Ja, • Maximum Manually Assign IP Address Rule : 64, Ja

VPN

Instant Guard, Ja, Ja, Ja, VPN Client WireGuard, Ja, Ja, Ja, VPN Server WireGuard, VPN Fusion, Support Surfshark, Support Nord VPN

WAN

• IPSec / • Static IP / • Automatic IP / • L2TP / • PPTP / • PPPoE / Internet Connection Type :, Nej, Nej, Ja, • Maximum Port Forwarding Rule : 64, Ja, • Maximum Port Triggering Rule : 32, Ja, Ja, • PPPoE Relay / • SIP Pass-Through / • H.323 Pass-Through / • RTSP Pass-Through / • IPSec Pass-Through / • L2TP Pass-Through / • PPTP Pass-Through

Game

Ja, Gear Accelerator, OpenNAT (Game Profile), Gaming Port

AiMesh

Ja, Ja, Ja

Memory

256 MB Flash and 1 GB RAM

Slogan

ASUS TUF Gaming BE6500 Dual Band WiFi 7 (802.11be) Extendable Gaming Router, Quad 2.5GbE ports, 3-step Port Forwarding, Smart Home Master, AiMesh support, and AiProtection Pro for Network Security

Antenna

External fixed antenna x 6

Buttons

WPS Button, Reset Button, Power Button

Security

AiProtection Pro, VPN, WPA/WPA2/WPA3 Personal / WPA/WPA2/WPA3 Enterprise / Open System & OWE, Ja, Ja, DNS-over-TLS, Ja, Security Scan, Ja, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

Wireless

MU-MIMO, Ja, Ja, • Maximum MAC Filters : 64, Ja, Ja, Ja, Ja

I/O Ports

1 x 2.5GbE for WAN / 3 x 2.5GbE for LAN / 1 x USB 3.2 Gen1

Processor

1.5GHz Quad-core Processor

AiProtection

AiProtection Pro, Ja, Ja, Ja, Ja

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access) / Beamforming: standard-based and universal / 4096-QAM high data rate / 20/40/80/160 MHz bandwidth

Power Supply

AC Input : 110V~240V(50~60Hz) / DC Output : 12 V with max. 2.5 A current

Guest Network

Ja, Support Guest Network, • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 3, Guest Network Connection Time Limit, Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal

LED Indicator

WAN(Internet) x1 / LAN x1 / 5GHz x 1 / 2.4GHz x1 / Power x1

Administration

Ja, Ja, Ja, Ja, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update

Operating Mode

Repeater Mode / Media Bridge Mode / Access Point Mode / AiMesh Node Mode / Wireless Router Mode

User Interface

WEB: ASUSWRT, APP: ASUS Router APP

WiFi Data Rate

WiFi 7 (802.11be) (5GHz): up to 5764 Mbps / WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

Package Content

TUF-BE6500 dual-band gaming router / RJ-45 cable / Power adapter / Quick Start Guide / Warranty card

Product Segment

BE6500 ultimate BE performance : 688+5764 Mbps

Traffic Control

Ja, Ja, Ja, -- Maximum Bandwidth Limiter Rule : 32, Ja, Ja, Ja, Ja, Ja, Ja, • Traffic Analysis Period : Daily, Weekly, Monthly, Ja

USB application

• FAT32 / • ext4 / • ext3 / • ext2 / • vFAT / • NTFS / • HFS+, Ja, Ja, Ja, Nej, Ja, Nej, Ja, Nej, Ja

Network Standard

IP v 6 / IP v 4 / WiFi 7 (802.11be) / IEEE 802.11ax / IEEE 802.11ac / IEEE 802.11n / IEEE 802.11g / IEEE 802.11b / IEEE 802.11a

Parental Control

Ja, Web & Apps Filters, Time Scheduling, Safe Browsing, Ja, • Maximum Parental Control Profile : 64, • Maximum Parental Control Content Filter Rule : 64

Product Dimensions

304 x 174 x 214 mm

Product Weight (g)

772 g

Transmit / Receive

5 GHz 4 x 4 / 2,4 GHz 2 x 2

Operating Frequency

5 GHz / 2.4 GHz
