Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Nej, Ja, • Maximum Port Forwarding Rule : 64, Ja, • Maximum Port Triggering Rule : 32, Ja, Ja, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
Recensioner
Laddar recensioner…
Game
Ja, Mobile Game Mode, Gaming Port
AiMesh
Ja, Ja, Ja
Memory
256 MB Flash / 1 GB RAM / 256 MB Flash / 1 GB RAM
Slogan

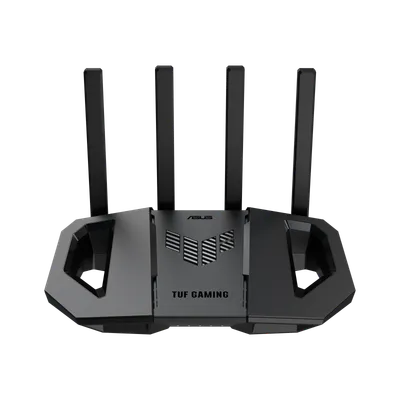

TUF Gaming BE3600 Dual Band WiFi 7 Gaming Router, Equipped with Powerful Broadcom SoC, Boasting Ultra-high Computational Speed, 3-step Port Forwarding, AiMesh for Mesh WiFi, and AiProtection Pro for Network Security.
Antenna
External antenna x 4
Buttons
WPS Button, Reset Button, Power Button
Security
AiProtection Pro, VPN, WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, Ja, Ja, DNS-over-TLS, Ja, Security Scan, Ja, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64
Wireless
Ja, Ja, • Maximum MAC Filters : 64, Ja, Ja, Ja, Ja, Ja
I/O Ports
1x 2.5G for WAN/LAN, / 1x 1G for WAN/LAN, / 3 x 1G LAN, / USB 3.2 Gen 1 x 1 / 1x 2.5G for WAN/LAN, / 1x 1G for WAN/LAN, / 3 x 1G LAN, / USB 3.2 Gen 1 x 1
Processor
2.0 GHz quad-core processor
AiProtection
AiProtection, Ja, Ja, Ja
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access) / Beamforming: standard-based and universal / 4096-QAM high data rate / 20/40/80/160 MHz bandwidth / OFDMA (Orthogonal Frequency Division Multiple Access) / Beamforming: standard-based and universal / 4096-QAM high data rate / 20/40/80/160 MHz bandwidth
Power Supply
AC Input : 100V~240V (50~60Hz) / DC Output : 12 V with max. 2 A current / AC Input : 100V~240V (50~60Hz) / DC Output : 12 V with max. 2 A current
Guest Network
Ja, • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3, Guest Network Connection Time Limit
LED Indicator
Power x 1 / WAN x 1 / LAN x 1 / 2.4GHz WiFi x 1 / 5GHz WiFi x 1 / Power x 1 / WAN x 1 / LAN x 1 / 2.4GHz WiFi x 1 / 5GHz WiFi x 1
Administration
Ja, Ja, Ja, Ja, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
Operating Mode
Repeater Mode / Media Bridge Mode / Access Point Mode / AiMesh Node Mode / Wireless Router Mode, Wireless router mode / Access point mode / Media bridge mode / Wireless router mode / Access point mode / Media bridge mode
WiFi Data Rate
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps / WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps / 802.11ax (5 GHz) : upp till 2402 Mbit/s
