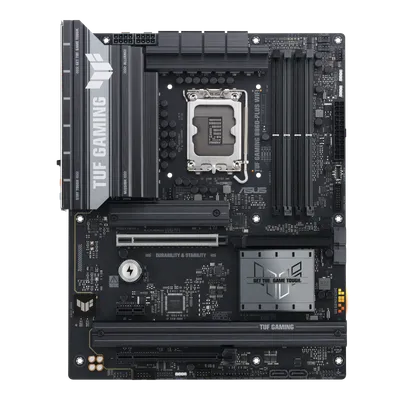

TUF GAMING B860-PLUS WIFI

WiFi

WiFi 7

Sockel

LGA 1851

Chipset

Intel B860

M.2-platser

3

Ethernet

2.5 Gigabit

Max minne

256 GB

PCIe-platser

1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x1

SATA-portar

4

Ljudkodek

Realtek

Dimensioner

305 244 mm

Formfaktor

ATX

Övriga specifikationer

USB

Rear USB (Total 8 ports) 1 x USB 20Gbps port (1 x USB Type-C) 2 x USB 10Gbps ports (2 x Type-A) 3 x USB 5Gbps ports (3 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 5 ports) 1 x USB USB 10Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 1 x USB 2.0 header supports 2 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A

BIOS

2 x 128 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 2 x M.2 rubber packages 1 x Screw package for M.2 SSD 1 x TUF GAMING sticker Documentation 1 x Quick start guide

Manageability

WOL by PME, PXE

News & Updates

Please see the updated OS support requirements for the Intel Core Ultra 200S series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility., Please visit our GLOBAL website to check and download the latest updates.

Operating System

Windows 11 (22H2 & later)

Special Features

ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage protection - SafeSlot - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Antenna - Q-Dashboard - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Addressable Gen 2 headers
