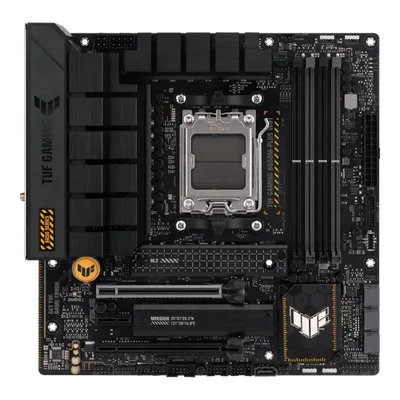

TUF Gaming B650M-Plus WIFI

WiFi

WiFi 6

Sockel

AM5

Chipset

AMD B650

M.2-platser

2

Ethernet

2.5 Gigabit

Max minne

256 GB

PCIe-platser

1x PCIe 4.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x1

SATA-portar

4

Ljudkodek

Realtek

Dimensioner

244 244 mm

Formfaktor

Micro-ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

DisplayPort x1, HDMI x1

Max minneshastighet

7200 MHz

Övriga specifikationer

EAN

4711081912118

Typ

Ljudkort

USB

Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Ljud

High Definition Audio (8-kanalig)

Modell

TUF Gaming B650M-Plus WIFI

Chipset

AMD B650

Lagring

M.2-uttag, Serial ATA-600 (RAID)

BIOS-typ

AMI

Kretstyp

AMD B650

Nätverk

Bluetooth 5.2, 2.5 Gigabit Ethernet

Antal M.2

2 st

Egenskaper

Minnesarkitektur med dubbel kanal, AMD EXPO-teknik

Formfaktor

mATX

Produkttyp

Moderkort

RAID-stöd

Ja

Gränssnitt

1 x ljudingång - mini-jack, 1 x mikrofon - mini-jack, 1 x LAN (2.5Gigabit Ethernet), 2 x antenn, 1 x DisplayPort, 1 x ljudutgång - mini-jack, 1 x USB 3.2 Gen 1, 4 x USB 2.0, 1 x ljudutgång (center/subwoofer) - mini-jack, 1 x HDMI, 2 x USB 3.2 Gen 2, 1 x USB-C 3.2 Gen2x2, 1 x ljudutgång (bakre) - mini-jack

Produktlinje

ASUS

USB/FireWire

USB-C 3.2 Gen 2x2, USB 3.1 Gen 2, USB-C 3.2 Gen 1, USB 3.2 Gen 2

Lagringsportar

4 x SATA-600 (RAID), 2 x M.2

BIOS-egenskaper

UEFI BIOS, ASUS EZ Flash 3

Internminnestyp

DDR5

RAM-kortplatser

4 DIMM-kortplatser

Strömkontakter

24-pin kontakt för huvudström, 4-pin ATX12V-kontakt, 8-pin ATX12V-kontakt

Operating System

Windows 11, Windows 10 64-bit

Processor-socket

Socket AM5

Special Features

ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers

Software Features

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 -TurboV EVO -DIGI+ VRM -PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Datalänkprotokoll

IEEE 802.11a, Gigabit Ethernet, 2.5 Gigabit Ethernet, Fast Ethernet, Bluetooth 5.2, IEEE 802.11n, IEEE 802.11g, 802.11ax, Ethernet, IEEE 802.11b, IEEE 802.11ac

Hårdvaruegenskaper

ASUS DIGI+ VRM, Q-LED, ASUS OptiMem II, Automatisk enhets-igenkänning, ASUS ProCool, Detekteringsteknik för ljudjack, Q-Slot, VRM-kylelementskonstruktion, ESD Guards, ASUS Stainless Steel Back I/O, Förmonterat I/O-skydd, ASUS TUF Protection, TUF Components, TUF LANGuard, 12+2 Phase Power Design, 60 A strömsteg, överspänningsskydd, ASUS EZ DIY, BIOS FlashBack LED, ASUS Aura Sync, BIOS FlashBack-knapp, CrashFree BIOS 3, M.2 Q-Latch, ASUS Q-Design, Water Pump Header, Q-DIMM, M.2 kylfläns, ASUS SafeDIMM, ASUS TurboV EVO, ASUS SafeSlot Core+

Interna gränssnitt

4 x USB 2.0 - header, 1 x ljud - header, 1 x USB-C 3.2 Gen 1 - header, 1 x Thunderbolt - header, 2 x USB 3.2 Gen 1 - header, 1 x seriell - header

Lagringsgränssnitt

SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10, PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10, PCIe 5.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 10

Medföljande kablar

2 x Seriell ATA-kabel

Trådlöst nätverk

Ja

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 2 x USB 3.2 Gen 2 ports (2 x Type-A) 1 x USB 3.2 Gen 1 port (1 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button

Expansionskortplatser

1 x PCIe 4.0 x16 (x4-läge), 1 x PCIe 4.0 x16, 1 x CPU, 4 x DIMM 288-stift, 1 x PCIe 4.0 x1, 2 x M.2 socket (2242/2260/2280 M.2 Key M-plats)

RAM-teknik som stöds

DDR5 SDRAM

Standarder som följs

EU REACH, DisplayPort 1.4, JATE, FCC Part 15 Class B, EU RoHS, WEEE, VCCI Class B ITE

Inkluderade tillbehör

2 st. M.2-gummipaket, ASUS Wi-Fi rörlig antenn, M.2-skruvpaket

Kompatibla processorer

Ryzen

Programvara inkluderad

ASUS AURA Creator, PC Cleaner, ASUS Fan Xpert 2+, Armoury Crate, MyAsus, WinRAR, ASUS TUF GAMING CPU-Z, Norton AntiVirus (Trial), ASUS AI Suite III

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 3 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB Gen 1 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thunderbolt (USB4) header

RAM-hastighet som stöds

5400 MHz (O.C.), 6400 MHz (O.C.), 5800 MHz (O.C.), 5600 MHz (O.C.), 5000 MHz, 5200 MHz (O.C.), 6200 MHz (O.C.), 6000 MHz (O.C.), 4800 MHz

Stöder Ram Integrity Check

ECC, Icke ECC, On-die ECC

Kompatibla processorkommentarer

Stöd för Ryzen 7000 Series

Producentens garanti (månader)

36

USB/FireWire-portkonfiguration (aktiv)

1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 2 + 1 x USB 3.2 Gen 1 + 4 x USB 2.0

USB/FireWire-portkonfiguration (sidhuvud)

1 x USB-C 3.2 Gen 1 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0

RAM som stöds (registrerad eller buffrad)

Ej buffrad
