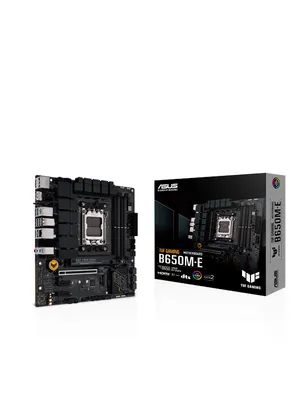

TUF GAMING B650M-E

Sockel

AM5

Chipset

AMD B650

M.2-platser

2

Ethernet

2.5 Gigabit

Max minne

192 GB

PCIe-platser

1x PCIe 4.0 x16, 2x PCIe 4.0 x1

SATA-portar

4

Ljudkodek

Realtek

Dimensioner

244 244 mm

Formfaktor

Micro-ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

DisplayPort x2, HDMI x1

Max minneshastighet

7600 MHz

Övriga specifikationer

USB

Rear USB (Total 8 ports) 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x TUF Gaming sticker 1 x M.2 Rubber Package 1 x Screw package for M.2 SSD Documentation 1 x TUF Certification card 1 x User guide

Manageability

WOL by PME, PXE

News & Updates

Socket AM5

Operating System

Windows 11, Windows 10 64-bit

Special Features

ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot Core+ - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers

Software Features

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 2+ - Power Saving - Two-Way AI Noise Cancelation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing Norton 360 for Gamers(60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Back Panel I/O Ports

2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C) 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A) 4 x USB 2.0 ports (4 x Type-A) 2 x DisplayPort 1 x HDMI TM port 1 x Realtek 2.5Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x 20-3 pin System Panel header with Chassis intrude function
