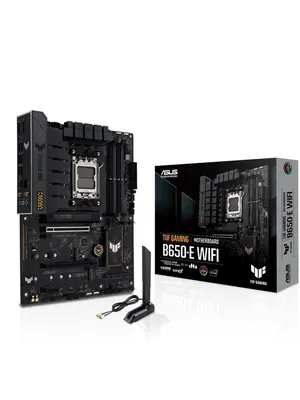

TUF GAMING B650-E WIFI

WiFi

WiFi 6

Sockel

AM5

Chipset

AMD B650

M.2-platser

3

Ethernet

2.5 Gigabit

Max minne

192 GB

PCIe-platser

1x PCIe 4.0 x16, 1x PCIe 4.0 x16 (x1), 1x PCIe 4.0 x1

SATA-portar

4

Ljudkodek

Realtek

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

DisplayPort x1, HDMI x1

Max minneshastighet

8000 MHz

Övriga specifikationer

USB

Rear USB (Total 8 ports) 2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C) 3 x USB 5Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

News & Updates

Socket AM5

Operating System

Windows 11 Windows 10 64-bit

Special Features

ASUS TUF PROTECTION - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeDIMM Aura Sync - Aura RGB header(s) - Addressable Gen 2 header(s)

Software Features

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation AI Suite 3 - TurboV EVO - DIGI+ VRM - PC Cleaner TUF GAMING CPU-Z DTS Audio Processing MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Back Panel I/O Ports

2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C) 3 x USB 5Gbps port(s) (3 x Type-A) 3 x USB 2.0 port(s) (3 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Realtek 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x Aura RGB header(s) 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 20-3 pin System Panel header with Chassis intrude function
