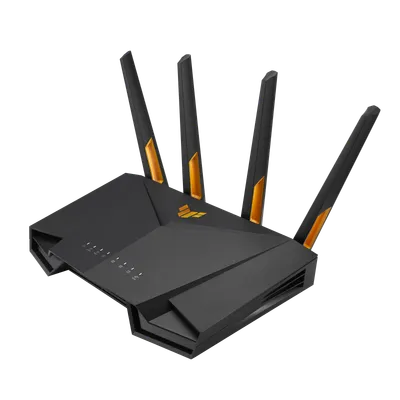

TUF Gaming AX4200

WiFi

WiFi 6

5 GHz

Ja

6 GHz

Nej

Ethernet

2.5 Gbps

2,4 GHz

Ja

Mesh-stöd

AiMesh

Övriga specifikationer

LAN

Ja, Ja, Ja, Ja, Ja, • Maximum Manually Assign IP Address Rule : 64, Ja

VPN

Ja, Ja, Ja, VPN Client WireGuard, Ja, Ja, Ja, VPN Server WireGuard, VPN Fusion

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Nej, Ja, Nej, Ja, • Maximum Port Forwarding Rule : 64, Ja, • Maximum Port Triggering Rule : 32, Ja, Ja, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

Game

Ja, Mobile Game Mode, OpenNAT (Game Profile)

AiMesh

Ja, Ja, Ja

Memory

256 MB Flash / 512 MB RAM

Slogan

TUF Gaming AX4200 Dual Band WiFi 6 Gaming Router with Mobile Game Mode, 3 steps port forwarding, 2.5Gbps port, AiMesh for mesh WiFi, AiProtection Pro network security

Antenna

External antenna x 4

Buttons

WPS Button, Reset Button, Power Button

Security

AiProtection Pro, WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, Ja, DNS-over-TLS, Ja, Security Scan, Ja, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

Wireless

Ja, Ja, • Maximum MAC Filters : 64, Ja, Ja, Ja, Ja, Ja

I/O Ports

RJ45 for 2.5 Gigabits BaseT for WAN x 1, / RJ45 for Gigabits BaseT for LAN x 4, / USB 3.2 Gen 1 x 1,

Processor

2.0 GHz quad-core processor

AiProtection

Ja, Ja, Ja, Ja

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access) / Beamforming: standard-based and universal / 1024-QAM high data rate / 20/40/80/160 MHz bandwidth

Power Supply

AC Input : 100V~240V (50~60Hz) / DC Output : 12 V with max. 2.5 A current

Guest Network

Ja, • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3, Guest Network Connection Time Limit

LED Indicator

Power x 1 / 2.4G x 1 / 5G x 1 / LAN x 4 / WAN x 1

Administration

Ja, Ja, Ja, Ja, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update

Operating Mode

Wireless router mode / Access point mode / Media bridge mode

WiFi Data Rate

WiFi 6 (802.11ax) (5GHz) : up to 3603 Mbps / 802.11ax (2,4 GHz) : upp till 574 Mbit/s / WiFi 5 (802.11ac) : up to 2600 Mbps / 802.11n (256QAM) : upp till 600 Mbit/s / 802.11n : upp till 450 Mbit/s / 802.11g : upp till 54 Mbit/s / 802.11b : upp till 11 Mbit/s / 802.11a : upp till 54 Mbit/s

Package Content

TUF Gaming AX4200 Dual Band WiFi 6 router / RJ-45 cable / Power adapter / Quick Start Guide / Warranty card

Product Segment

AX4200 ultimate AX performance: 574+3603 Mbps

Traffic Control

Ja, Ja, Ja, -- Maximum Bandwidth Limiter Rule : 32, Ja, -- Maximum Traditional QoS Rule : 32, Ja, Ja, Ja, Ja, Ja, • Traffic Analysis Period : Daily, Weekly, Monthly, Ja

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, Ja, Ja, Ja, Nej, Ja, Nej, Ja, Nej, Ja

Network Standard

IP v 6 / IP v 4 / IEEE 802.11ax / IEEE 802.11ac / IEEE 802.11n / IEEE 802.11g / IEEE 802.11b / IEEE 802.11a

Parental Control

Ja, Safe Browsing, Ja

Product Dimensions

265 x 178 x 186 mm

Product Weight (g)

547.4 g

Transmit / Receive

5 GHz 3 x 3 / 2,4 GHz 2 x 2

Operating Frequency

2.4GHz / 5GHz
