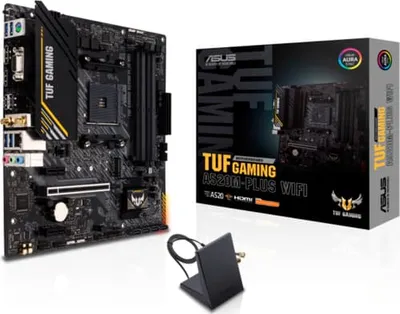

TUF GAMING A520M-PLUS WIFI

Ethernet

1 Gigabit

PCIe-platser

1x PCIe 3.0 x16, 2x PCIe 3.0 x1

SATA-portar

4

Formfaktor

Micro-ATX

Övriga specifikationer

USB

4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Ljud

Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC* - Supports: Jack detection, Multi-streaming, Front Panel Jack-retasking - Supports up to 24-Bit/192 kHz playback" Audio Features - Audio Shielding - Premium audio capacitors - Dedicated audio PCB layers *A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Minne

4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory* Dual Channel Memory Architecture *ECC Memory (ECC mode) support varies by CPU. *Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Chipset

AMD A520

Grafiken

1 x DisplayPort 1.2 1 x HDMI TM 2.1(4K@60Hz) 1 x D-Sub *Graphics specifications may vary between CPU types.

Antal M.2

1 st

Formfaktor

mATX

RAID-stöd

Ja

Tillbehör

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x I/O Shield 1 x M.2 SSD screw package 1 x ASUS Wi-Fi moving antenna 1 x TUF Gaming sticker Installation Media 1 x Support DVD Documentation 1 x TUF Certification card 1 x User manual

Hanterbarhet

WOL by PME, PXE

Operativsystem

Windows 10 64bit, Windows 10 64-bit

Internminnestyp

DDR4

Specialfunktioner

ASUS TUF PROTECTION - DIGI+ VRM - ESD Guards - TUF LANGuard - Overvoltage Protection - SafeSlot Core+ - Stainless-Steel Back I/O ASUS Q-Design - Q-DIMM - Q-Slot ASUS Thermal Solution - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED AURA Sync - AURA RGB headers - Addressable Gen 2 RGB headers

Trådlöst nätverk

Ja

Programvarufunktioner

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU DIGI+ VRM Fan Xpert 2+ - EZ update - PC Cleaner - System Information TUF GAMING CPU-Z AI Charger ASUS Turbo LAN DAEMON Tools MyAsus Norton Anti-virus software (Free Trial version) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode

Interna I/O -kontakter

Fan and cooling related 1 x 4-pin CPU Fan header 2 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 1 x M.2 slot (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 3 USB 2.0 ports Miscellaneous 2 x AURA Addressable Gen 2 header neous2 x AURA RGB headers 1 x Clear CMOS header 1 x COM Port header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x SPI TPM header (14-1pin) 1 x 10-1 pin System Panel header

Bakpanelens I/O -portar

4 x USB 3.2 Gen 1 ports (4 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x D-Sub 1 x ASUS Wi-Fi Module 1 x Realtek 1Gb Ethernet port 3 x Audio jacks 1 x BIOS FlashBack button 1 x PS/2 Keyboard/Mouse combo port

Trådlöst och Bluetooth

Realtek Wi-Fi 5 8821CE 1x1 Wi-Fi 5 (802.11 a/b/g/n/ac) with MU-MIMO Supports dual frequency band 2.4/5GHz Supports channel bandwidth: HT20/HT40/HT80 Bluetooth v5.0
