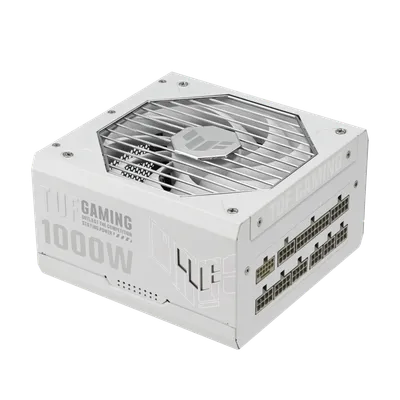

TUF-GAMING-1000G-WHITE nätaggregat, 1000 W

Vikt

2.48 kg

Effekt

1000 W

ATX-version

ATX 3.1

Dimensioner

150 150 86 mm

Effektivitet

80+ Gold

Formfaktor

ATX

Skydd

OPP/OVP/SCP/OCP/OTP

EPS-kontakter

2

SATA-kontakter

5

12VHPWR-kontakter

1

PCIe 8-pin-kontakter

4

Övriga specifikationer

MTBF

>120,000 hrs @ 40°C

Längd

150 mm

Slogan

The TUF Gaming 1000W Gold White Edition is an efficient, resilient and dependable PSU that’s engineered for the long haul

PFC Type

Active PFC

Modulärt

Ja

Formfaktor

ATX PS2

Maximum Load

25A 25A 83.3A 0.8A 3A

Combined Load

130W 130W 1000W 9.6W 15W

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

AC Input Range

100-240Vac

80+ Certifiering

80+ Gold

Package Contents

Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (650mm) PCI-E Gen 5.1 16-pin Cable x 1 (675mm) PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 2 (675mm) SATA 1-to-2 Cable x 1 (400+120mm) SATA 1-to-3 Cable x 1 (400+120+120mm) Peripheral 1-to-4 Cable x 1 (400+150+150+150mm) TUF Gaming Cable Tie x 3 User Manual x 1

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Hazardous Materials

ROHS

Cybenetics Noise Level Certification

NA
