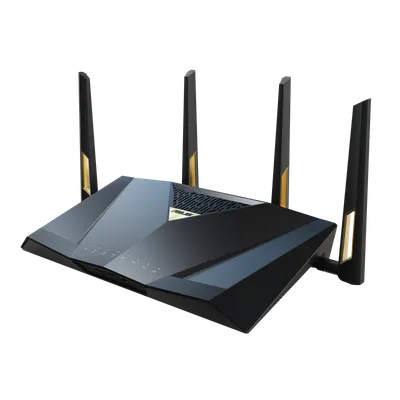

RT-BE88U

WiFi

WiFi 7

5 GHz

Ja

6 GHz

Nej

Ethernet

10 Gbps

2,4 GHz

Ja

Mesh-stöd

AiMesh

Övriga specifikationer

LAN

Ja, Ja, Ja, Ja, Ja, • Maximum Manually Assign IP Address Rule : 128, Ja

VPN

Instant Guard, Ja, Ja, Ja, VPN Client WireGuard, Ja, Ja, Ja, VPN Server WireGuard, VPN Fusion, Support Surfshark

WAN

• IPSec / • Static IP / • Automatic IP / • L2TP / • PPTP / • PPPoE / Internet Connection Type :, Nej, Ja, Nej, Ja, • Maximum Port Forwarding Rule : 64, Ja, • Maximum Port Triggering Rule : 32, Ja, Ja, • PPPoE Relay / • SIP Pass-Through / • H.323 Pass-Through / • RTSP Pass-Through / • IPSec Pass-Through / • L2TP Pass-Through / • PPTP Pass-Through / NAT Passthrough :

Game

Mobile Game Mode, Gear Accelerator, OpenNAT (Game Profile), Gaming Port

AiMesh

Ja, Ja, Ja

Memory

256 MB Flash and 2 GB RAM

Slogan

Dual-band WiFi 7(801.11be) AiMesh extendable router, 7.2 Gbps, 34G wired capacity, Dual 10G ports, SFP+ port, Four 2.5G ports, Commercial-grade security, Guest Network Pro, VPNs

Antenna

External antenna x 4

Buttons

WPS Button, Reset Button, Power Switch

Security

AiProtection Pro, VPN, WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE, Ja, Ja, DNS-over-TLS, Ja, Security Scan, Ja, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

Wireless

MU-MIMO, Ja, Ja, • Maximum MAC Filters : 64, Ja, Ja, Ja, Ja, Ja

I/O Ports

1 x 10Gbps for WAN/LAN, 1 x 10Gbps SFP+ Port, 1 x 2.5Gbps for WAN/LAN, 3 x 2.5 Gbps for LAN, 4 x RJ45 10/100/1000Mbps for LAN, USB 3.2 Gen1 x1

Processor

2.6GHz quad-core processor

AiProtection

AiProtection Pro, Ja, Ja, Ja, Ja

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access) / Beamforming: standard-based and universal / 4096-QAM high data rate / 20/40/80/160 MHz bandwidth

Power Supply

AC Input : 110V~240V(50~60Hz) / DC Output : 12V with max. 5 A current；19 V with max. 2.37 A current ； 19.5 V with max. 2.31 A current

Guest Network

"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings.", Support Guest Network Pro, • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5, Guest Network Connection Time Limit, Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

LED Indicator

WAN x1 / 10G WAN x1 / 10G SFP+ x1 / LAN x1 / USB 3.2 Gen 1 x1 / 2.4GHz x1 / 5GHz x1 / Power x1

Administration

Ja, Ja, Ja, Ja, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update

Operating Mode

Repeater Mode / Media Bridge Mode / Access Point Mode / AiMesh Node Mode / Wireless Router Mode

User Interface

WEB: ASUSWRT, APP: ASUS Router APP

WiFi Data Rate

WiFi 7 (802.11be) (5GHz): up to 5764 Mbps / WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps

Package Content

RT-BE88U WiFi router / RJ-45 cable / Power adapter / Quick Start Guide / Warranty card

Product Segment

BE7200 ultimate BE performance : 1376+5764 Mbps

Traffic Control

Ja, Ja, Ja, -- Maximum Bandwidth Limiter Rule : 32, Ja, Ja, Ja, Ja, Ja, Ja, • Traffic Analysis Period : Daily, Weekly, Monthly, Ja

USB application

• ext4 / • ext3 / • ext2 / • vFAT / • NTFS / • HFS+ / File System :, Ja, Ja, Ja, Nej, Ja, Nej, Ja, Nej, Ja

Network Standard

IP v 6 / IP v 4 / WiFi 7 (802.11be) / IEEE 802.11ax / IEEE 802.11ac / IEEE 802.11n / IEEE 802.11g / IEEE 802.11b / IEEE 802.11a

Parental Control

Ja, Web & Apps Filters, Time Scheduling, Safe Browsing, Ja, • Maximum Parental Control Profile : 64, • Maximum Parental Control Content Filter Rule : 64

Product Dimensions

300*188*60.5

Product Weight (g)

1060 g

Transmit / Receive

5 GHz 4 x 4 / 2,4 GHz 4 x 4

Operating Frequency

5 GHz / 2.4 GHz
