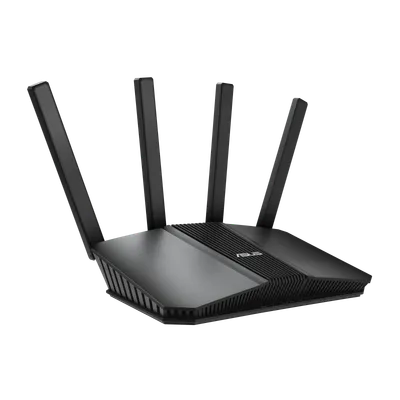

RT-BE58U

WiFi

WiFi 7

5 GHz

Ja

6 GHz

Nej

Ethernet

2.5 Gbps

2,4 GHz

Ja

Mesh-stöd

AiMesh

Övriga specifikationer

LAN

Ja, Ja, Ja, Ja, • Maximum Manually Assign IP Address Rule : 64, Ja

VPN

Instant Guard, Ja, Ja, Ja, VPN Client WireGuard, Ja, Ja, Ja, VPN Server WireGuard

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Nej, Nej, 4G / 5G Auto Mobile Tethering, Ja, • Maximum Port Forwarding Rule : 64, Ja, • Maximum Port Triggering Rule : 32, Ja, Ja, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

AiMesh

Ja, Ja, Ja

Memory

256 MB Flash / 1 GB RAM / 256 MB Flash / 1 GB RAM

Slogan

Dual-band WiFi 7 (802.11be) Smart AiMesh Extendable Router, 3600 Mbps, 2.5G port, Up to 3 SSIDs for IoT Devices, Parental Controls & VPNs, Advanced Network Security, Up to 30% PCR Plastic

Antenna

External antenna x 4

Buttons

WPS Button, Reset Button, Power Button

Security

AiProtection Pro, VPN, WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, Ja, Ja, DNS-over-TLS, Ja, Security Scan, Ja, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

Wireless

MU-MIMO, Ja, Ja, • Maximum MAC Filters : 64, Ja, Ja, Ja, Ja, Ja

I/O Ports

1x 2.5G for WAN/LAN, / 1x 1G for WAN/LAN, / 3 x 1G LAN, / USB 3.2 Gen 1 x 1 / 1x 2.5G for WAN/LAN, / 1x 1G for WAN/LAN, / 3 x 1G LAN, / USB 3.2 Gen 1 x 1

Processor

2.0 GHz quad-core processor

AiProtection

AiProtection, Ja, Ja, Ja, Ja

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access) / Beamforming: standard-based and universal / 4096-QAM high data rate / 20/40/80/160 MHz bandwidth / OFDMA (Orthogonal Frequency Division Multiple Access) / Beamforming: standard-based and universal / 4096-QAM high data rate / 20/40/80/160 MHz bandwidth

Power Supply

AC Input : 100V~240V (50~60Hz) / DC Output : 12 V with max. 2 A current / AC Input : 100V~240V (50~60Hz) / DC Output : 12 V with max. 2 A current

Guest Network

Ja, Support Guest Network, • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3, Guest Network Connection Time Limit

LED Indicator

Power x 1 / WAN x 1 / LAN x 1 / 2.4GHz WiFi x 1 / 5GHz WiFi x 1 / Power x 1 / WAN x 1 / LAN x 1 / 2.4GHz WiFi x 1 / 5GHz WiFi x 1

Administration

Ja, Ja, Ja, Ja, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update

Operating Mode

Wireless router mode / Access point mode / Media bridge mode / Wireless router mode / Access point mode / Media bridge mode

User Interface

WEB: ASUSWRT, APP: ASUS Router APP

WiFi Data Rate

WiFi 7 (802.11be) (5GHz): up to 2882 Mbps / WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps / 802.11g : upp till 54 Mbit/s / 802.11b : upp till 11 Mbit/s / 802.11a : upp till 54 Mbit/s

Package Content

RT-BE58U / RJ-45 cable / Power adapter / Quick Start Guide / Warranty card / RT-BE58U / RJ-45 cable / Power adapter / Quick Start Guide / Warranty card

Product Segment

BE3600 ultimate BE performance : 688+2882 Mbps

Traffic Control

Ja, Ja, Ja, -- Maximum Bandwidth Limiter Rule : 32, Ja, -- Maximum Traditional QoS Rule : 32, Ja, Ja, Ja, Ja, Ja, • Traffic Analysis Period : Daily, Weekly, Monthly, Ja

USB application

4G / 5G Auto Mobile Tethering, File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, Ja, Ja, Ja, Nej, Ja, Nej, Ja

Network Standard

IP v 6 / IP v 4 / WiFi 7 (802.11be) / IEEE 802.11ax / IEEE 802.11ac / IEEE 802.11n / IEEE 802.11g / IEEE 802.11b / IEEE 802.11a

Parental Control

Time Scheduling, Safe Browsing, Ja

Product Dimensions

238 x 147 x 193 mm

Product Weight (g)

461g

Transmit / Receive

5 GHz 2 x 2 / 2,4 GHz 2 x 2

Operating Frequency

5 GHz / 2.4 GHz
