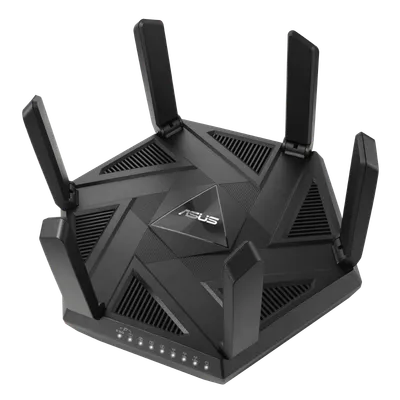

RT-AXE7800

WiFi

WiFi 6E

5 GHz

Ja

6 GHz

Ja

Ethernet

2.5 Gbps

2,4 GHz

Ja

Mesh-stöd

AiMesh

Övriga specifikationer

LAN

Ja, Ja, Ja, Ja, Ja, • Maximum Manually Assign IP Address Rule : 64, Ja

VPN

Instant Guard, Ja, Ja, Ja, VPN Client WireGuard, Ja, Ja, Ja, VPN Server WireGuard, VPN Fusion

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Nej, Ja, Nej, Ja, • Maximum Port Forwarding Rule : 64, Ja, • Maximum Port Triggering Rule : 32, Ja, Ja, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Passthrough, PPPoE relay

AiMesh

Ja, Ja, Ja

Memory

256 MB Flash and 512 MB DDR4 RAM

Slogan

AXE7800 Tri-band WiFi 6E (802.11ax) Router, New 6GHz Band, ASUS Safe Browsing, Enhanced Network Security with AiProtection Pro and Instant Guard Sharable Secure VPN, Free Parental Controls, 2.5G Port, Link Aggregation

Antenna

External antenna x 6 (non-detachable)

Buttons

Power on/off switch / Reset Button / WPS Button

Security

AiProtection Pro, WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise , WPA2-Enterprise , WPS support, Ja, Ja, DNS-over-TLS, Ja, Security Scan, Ja, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

Wireless

MU-MIMO, Ja, Ja, • Maximum MAC Filters : 64, Ja, Ja, Ja, Ja, Ja

I/O Ports

RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1, / RJ45 for Gigabits BaseT for WAN/LAN x 1, / RJ45 for Gigabits BaseT for LAN x 3, / USB 3.2 Gen 1 Port x 1,

Processor

1.7GHz quad-core processor

AiProtection

Ja, Ja, Ja, Ja

Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access) / Beamforming: standard-based and universal / 1024-QAM high data rate / 20/40/80/160 MHz bandwidth

Power Supply

AC Input : 110V~240V(50~60Hz) / DC Output: 12 V with max. 3.0 A current

Guest Network

Ja, • Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz-1 x 3, 6 GHz x 3, Guest Network Connection Time Limit, Guest Network Encryption : Open system, WPA/WPA2/WPA3-Personal, WPS

LED Indicator

Power x 1 / 2.4GHz x 1 / 5GHz x 1 / 6HGz x 1 / 2.5G WAN/LAN1 x 1 / 1G WAN/LAN1 x 1 / 1G LAN x 3

Administration

Ja, Ja, Ja, Ja, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update

Operating Mode

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

WiFi Data Rate

WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps / 802.11ax (5 GHz) : upp till 4804 Mbit/s / 802.11ax (2,4 GHz) : upp till 574 Mbit/s / 802.11ac (1024QAM) : upp tillo 2167 Mbit/s / WiFi 5 (802.11ac) : up to 500 Mbps / 802.11n : upp till 300 Mbit/s / 802.11g : upp till 54 Mbit/s / 802.11b : upp till 11 Mbit/s / 802.11a : upp till 54 Mbit/s

Package Content

RT-AXE7800 WiFi Router / RJ-45 Cable / Power Adapter / Quick Start Guide / Warranty Card

Product Segment

AXE7800 ultimate AX performance : 574+4804+2402 Mbps

Traffic Control

Ja, Ja, Ja, -- Maximum Bandwidth Limiter Rule : 32, Ja, -- Maximum Traditional QoS Rule : 32, Ja, Ja, Ja, Ja, Ja, • Traffic Analysis Period : Daily, Weekly, Monthly, Ja

USB application

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, Ja, Ja, Ja, Nej, Ja, Nej, Ja, Nej, Ja

Network Standard

IP v 6 / IP v 4 / WiFi 6E (802.11ax) / IEEE 802.11ax / IEEE 802.11ac / IEEE 802.11n / IEEE 802.11g / IEEE 802.11b / IEEE 802.11a

Parental Control

Ja, Safe Browsing, Ja, • Maximum Parental Control Profile : 64, • Maximum Parental Control Content Filter Rule : 64

Product Dimensions

243*223*155 mm

Product Weight (g)

1033g

Transmit / Receive

6GHz 2x2 / 5 GHz 4 x 4 / 2,4 GHz 2 x 2

Operating Frequency

Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz
