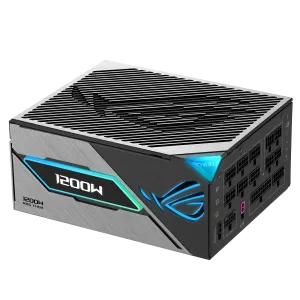

ROG-THOR-1200P3-GAMING-E

Vikt

2.37 kg

Effekt

1200 W

ATX-version

ATX 3.1

Dimensioner

190 150 86 mm

Effektivitet

80+ Platinum

Formfaktor

ATX

Skydd

OPP/OVP/UVP/SCP/OCP/OTP

EPS-kontakter

2

SATA-kontakter

7

12VHPWR-kontakter

1

PCIe 8-pin-kontakter

4

Övriga specifikationer

MTBF

>120,000 hrs @ 25°C

PFC Type

Active PFC

AURA SYNC

ARGB

Maximum Load

30A 25A 100A 0.3A 3A

Combined Load

125W 125W 1200W 3.6W 15W

0dB Fan Button

Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

AC Input Range

100-240Vac

Package Contents

Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) ROG EQUALIZER 12V-2x6 PCI-E Cable with GPU-First x1 (750mm) PCI-E Cable 1-to-1 x 4 (750mm) SATA Cable 1-to-4 x 1 (400+120+120+120mm) SATA Cable 1-to-3 x 1 (400+120+120mm) Peripheral 1-to-3 x 2 (400+150+150mm) Addressable RGB Cable x 1 (800mm) ROG sticker x 1 ROG cable tie x 6 Chassis Screws Package x 1 Cable Tie x 12 User Manual x 1

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb
