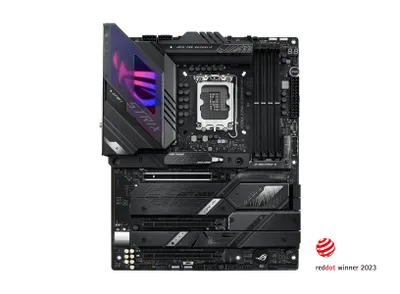

ROG STRIX Z790-E GAMING WIFI

WiFi

WiFi 6

Sockel

LGA 1700

Chipset

Intel Z790

M.2-platser

5

Ethernet

2.5 Gigabit

Max minne

192 GB

PCIe-platser

1x PCIe 5.0 x16, 2x PCIe 4.0 x16 (x4)

SATA-portar

4

Ljudkodek

SupremeFX ALC4080

Dimensioner

305 244 mm

Formfaktor

ATX

Övriga specifikationer

USB

Rear USB (Total 12 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 30W PD Fast-charge) 2 x USB 3.2 Gen 1 header support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x DDR5 Fan holder 1 x VRM Fan holder 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 backplate Q-Latch package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card 2 x M.2 Rubber Packages 1 x M.2 backplate Rubber PackageDocumentation 1 x User guide

Manageability

WOL by PME, PXE

Operating System

Windows 11, Windows 10 64-bit

Special Features

Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header - Addressable Gen 2 RGB headers Front Panel USB 3.2 Gen 2x2 with PD Fast-charge Support - Support: up to 30W charging - Output: 5/9V max. 3A, 12V max 2.5A - Compatible with PD3.0
