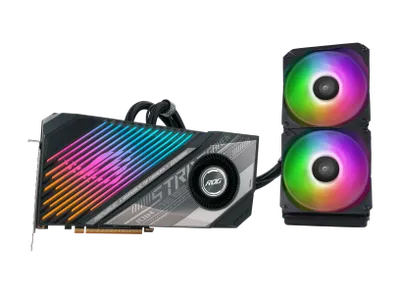

ROG-STRIX-LC-RX6950XT-O16G-GAMING

TDP

1000 W

Bredd

130.8 mm

Höjd

43.6 mm

Längd

277 mm

OpenGL

4.6

Minnesbuss

256-bit

Boost-klocka

2565 MHz

Minne

16 GB

Minnestyp

GDDR6

Max antal skärmar

4

Minneshastighet

18 Gbps

Buss

PCIe 4.0 x16

Max upplösning

Digital Max Resolution 7680 x 4320

Displayutgångar

Yes x 1 (Native HDMI 2.1), Yes x 2 (Native DisplayPort 1.4a), Yes x 1 (USB Type-C), HDCP Support Yes (2.3)

Strömanslutningar

3 x 8-pin

Övriga specifikationer

Note

* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html * All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products. * Crossfire Support for DirecX 12 and Vulkan * ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary. * ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

Slot

2.2 Slot

Software

ASUS GPU Tweak II & Drivers: please download all software from the support site.

AURA SYNC

ARGB

Accessories

1 x ROG Velcro Hook & Loop 1 x Cable ties pack 1 x ROG Sticker 1 x ASUS ruler 1 x Collection card 1 x Speedsetup Manual

Graphic Engine

Radeon RX 6950 XT

Stream Processors

5120
