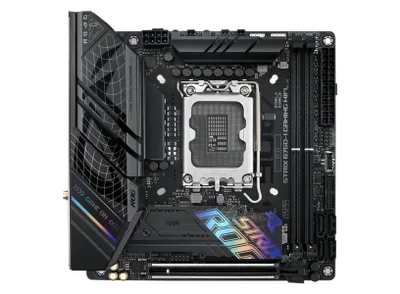

ROG STRIX B760-I GAMING WIFI

WiFi

WiFi 6

Sockel

LGA 1700

Chipset

Intel B760

M.2-platser

2

Ethernet

2.5 Gigabit

Max minne

96 GB

PCIe-platser

1x PCIe 5.0 x16

SATA-portar

4

Dimensioner

170 170 mm

Formfaktor

Mini-ITX

Minnestyp

DDR5

Minnesplatser

2

Displayutgångar

DisplayPort x1, HDMI x1

Max minneshastighet

7600 MHz

Övriga specifikationer

USB

Rear USB (Total 8 ports) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C) 3 x USB 2.0 ports (3 x Type-A) Front USB (Total 5 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 header supports additional 2 USB 2.0 ports

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable 1 x Panel cable Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Rubber Package 2 x Screw packages for M.2 SSD 1 x M.2 bracket 1 x ROG key chain 1 x ROG STRIX stickers 1 x ROG STRIX thank you card Documentation 1 x User manual

Manageability

WOL by PME, PXE

Operating System

Windows 11 64-bit, Windows 10 64-bit

Special Features

Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate ASUS EZ DIY -CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 header

Software Features

ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - Performance And Power Saving Utility PC Cleaner DIGI+ VRM MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 4 x USB 3.2 Gen 1 ports (3 x Type-A +1 x USB Type-C) 3 x USB 2.0 ports (3 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet 5 x Audio jacks

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin Chasis Fan header 1 x 4-pin AIO Pump header Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 1 x USB 2.0 headers support additional 2 USB 2.0 ports Miscellaneous 1 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
