- EAN
- 4711387120002
- LAN
- 2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3
- MPN
- 90MB1EQ0-M1EAY0
- SKU
- 90MB1EQ0-M1EAY0
- Typ
- Ljudkort
- USB
- Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header supports additional 4 USB 2.0 ports
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- Djup
- 24.4 cm
- GPSR
- ASUS Computer GmbH Harkortstrasse 21-23 40880 Ratingen DE [email protected]
- Ljud
- High Definition Audio (8-kanalig)
- Bredd
- 24.4 cm
- Modell
- ROG STRIX B760-G GAMING WIFI
- Teknik
- DDR5
- Chipset
- Intel B760
- Lagring
- M.2-uttag, Serial ATA-600 (RAID)
- BIOS-typ
- AMI
- Kretstyp
- Intel B760
- Nätverk
- 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3, 2.5 Gigabit Ethernet
- Antal M.2
- 2 st
- Bluetooth
- Ja
- RAM-stöd
- 4 DIMM-kortplatser - DDR5, icke ECC, ej buffrad
- Anslutning
- PCI-Express 5.0 x16
- Egenskaper
- Minnesarkitektur med dubbel kanal, Intel Extreme Memory Profiles (XMP)
- Formfaktor
- mATX
- Produkttyp
- Moderkort
- RAID-stöd
- Ja
- Accessories
- Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x Rubber Package(s) for M.2 1 x Q-Latch package(s) for M.2 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Documentation 1 x User manual
- Audio Codec
- SupremeFX
- Gränssnitt
- 1 x HDMI, 1 x USB 3.2 Gen 2, 1 x ljudingång - mini-jack, 1 x DisplayPort, 4 x USB 2.0, 1 x ljudutgång (bakre) - mini-jack, 1 x LAN (2.5Gigabit Ethernet), 1 x USB-C 3.2 Gen 1, 1 x mikrofon - mini-jack, 1 x ljudutgång (center/subwoofer) - mini-jack, 2 x antenn, 1 x USB-C 3.2 Gen2x2, 2 x USB 3.2 Gen 1, 1 x ljudutgång - mini-jack
- Produktlinje
- ASUS
- USB/FireWire
- USB 3.2 Gen 2, USB-C 3.2 Gen 1, USB-C 3.2 Gen2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1
- Manageability
- WOL by PME, PXE
- Lagringsportar
- 4 x SATA-600 (RAID), 2 x M.2
- Typ av produkt
- Moderkort - micro ATX
- BIOS-egenskaper
- ASUS EZ Flash 3, UEFI BIOS, ASUS UEFI BIOS EZ-läge
- Internminnestyp
- DDR5
- Maximal storlek
- 192 GB
- RAID-egenskaper
- Intel Rapid Storage Technology
- RAM-kortplatser
- 4 DIMM-kortplatser
- Strömkontakter
- 8-pin ATX12V-kontakt, 24-pin kontakt för huvudström, 4-pin ATX12V-kontakt
- Max. RAM-storlek
- 192 GB
- Operating System
- Windows 11, Windows 10 64-bit
- Processor-socket
- LGA1700-uttag
- Special Features
- Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED -CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 header
- Software Features
- ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Fan Xpert 4 - Two-Way AI Noise Cancelation - Power Saving AI Suite 3 - Performance And Power Saving Utility - DIGI+ VRM - PC Cleaner MyAsus Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86
- Datalänkprotokoll
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n, 2.5 Gigabit Ethernet, Gigabit Ethernet, IEEE 802.11g, IEEE 802.11ax (Wi-Fi 6E), Fast Ethernet, Ethernet, Bluetooth 5.3, IEEE 802.11b
- Produktbeskrivning

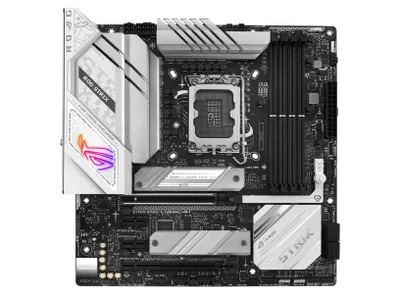

- ASUS ROG STRIX B760-G GAMING WIFI - moderkort - micro ATX - LGA1700-uttag - B760
- Hårdvaruegenskaper
- ASUS Extreme Engine Digi+, ASUS OptiMem II, Q-LED, BIOS FlashBack LED, Q-Slot, Automatisk enhets-igenkänning, BIOS FlashBack-knapp, ASUS SafeSlot, Q-DIMM, CPU-uttagsskydd, 6 Layer PCB, ASUS Aura Sync, Detekteringsteknik för ljudjack, Savitech SV3H712-förstärkare, ASUS EZ DIY, LANGuard, ASUS SafeDIMM, ASUS ProCool, M.2 kylfläns, CrashFree BIOS 3, 12+1 Phase Power Design, ASUS Q-Design, M.2 Q-Latch, Förmonterat I/O-skydd, PCIe Slot Q-Release, VRM-kylelementskonstruktion, DIY Friendly Design, 5K Black Metallic Capacitors
- Interna gränssnitt
- 1 x SPDIF-ut - header, 2 x USB 3.2 Gen 1 - header, 1 x Thunderbolt - header, 1 x USB-C 3.2 Gen 2 - header, 1 x ljud - header, 4 x USB 2.0 - header
- Lagringsgränssnitt
- SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
- Medföljande kablar
- 2 x Seriell ATA-kabel
- Trådlöst nätverk
- Ja
- USB/FireWire-portar
- 1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
- Viloläge/väckning
- Wake on PME, Wake on LAN (WOL)
- Back Panel I/O Ports
- 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 1 x USB 3.2 Gen 2 port(s) (1 x Type-A) 3x USB 3.2 Gen 1 port(s) (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 port(s) (4 x Type-A) 1 x HDMI port 1 x DisplayPort 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet 5 x Audio jacks 1 x BIOS FlashBack button
- Expansionskortplatser
- 2 x M.2 socket (2242/2260/2280 M.2 Key M-plats), 1 x PCIe 5.0 x16, 1 x CPU, 1 x PCIe 4.0 x16 (x4-läge), 4 x DIMM 288-stift, 2 x PCIe 4.0 x1
- RAM-teknik som stöds
- DDR5 SDRAM
- Standarder som följs
- HD-ljud, DTS Sound Unbound
- Inkluderade tillbehör
- ROG tackkort, ROG-dekaler, M.2 Q-Latch, 1 st. M.2-gummipaket, Kabelband, Termisk platta fär M.2 SSD, ROG-nyckelring, ASUS Wi-Fi rörlig antenn
- Kompatibla processorer
- (stöder 12:e och 13:e generationens Intel Core / Pentium Gold / Celeron)
- Programvara inkluderad
- ROG CPU-Z, Sonic Studio III, ASUS Fan Xpert 4, Sonic Studio Virtual Mixer, Armoury Crate, Sonic Suite Companion, ROG GameFirst VI, AIDA64 Extreme (60 dagars testperiod), Norton 360 för gamers (60 dagars provperiod), MyAsus, MemTest86, ASUS AI Suite III, Sonic Radar III, ASUS AURA Creator, PC Cleaner, WinRAR
- Internal I/O Connectors
- Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan header(s) Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 header(s) 1 x AURA RGB header(s) 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header
- RAM-hastighet som stöds
- 5000 MHz, 6000 MHz (O.C.), 4800 MHz, 6600 MHz (O.C.), 5400 MHz, 5600 MHz, 7600 MHz (O.C.), 7400 MHz (O.C.), 7000 MHz (O.C.), 6400 MHz (O.C.), 5200 MHz, 7800 MHz (O.C.), 6200 MHz (O.C.), 5800 MHz (O.C.), 6800 MHz (O.C.), 7200 MHz (O.C.)
- Registrerad eller buffrad
- Ej buffrad
- Maximalt antal processorer
- 1
- Stöder Ram Integrity Check
- Icke ECC
- Kompatibla processorkommentarer
- Stöder 12:e och 13:e generationens Intel Core / Pentium Gold / Celeron
- Producentens garanti (månader)
- 36
- USB/FireWire-portkonfiguration (aktiv)
- 1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
- USB/FireWire-portkonfiguration (sidhuvud)
- 1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0
- RAM som stöds (registrerad eller buffrad)
- Ej buffrad
