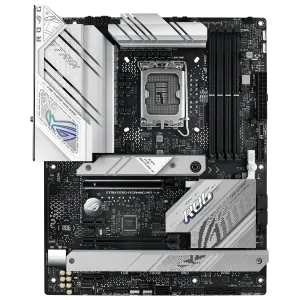

ROG STRIX B760-A GAMING WIFI

Övriga specifikationer

EAN

4711387114063

LAN

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

SKU

90MB1EP0-M0EAY0

Typ

HD-ljud (8 kanaler)

USB

Rear USB (Total 9 ports) 1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C) 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) 3 x USB 3.2 Gen 1 (5G) port (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) Front USB (Total 6 ports) 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Ljud

HD-ljud (8 kanaler)

Wi-Fi

Ja

Art.nr

9742828

Socket

LGA1700

Teknik

DDR5

Chipset

B760

BIOS-typ

AMI

Kretstyp

Intel B760

Artikelnr

90MB1EP0-M0EAY0

Bluetooth

Ja

Ljudchipp

Realtek ALC4080

Modell-nr

90MB1EP0-M0EAY0

RAM-stöd

4 DIMM-kortplatser - DDR5, icke ECC, on-die ECC, ej buffrad

Antal HDMI

1

Bussklocka

4800 MHz, 5000 MHz, 5200 MHz, 5400 MHz, 5600 MHz, 5800 MHz (O.C.), 6000 MHz (O.C.), 6200 MHz (O.C.), 6400 MHz (O.C.), 6600 MHz (O.C.), 6800 MHz (O.C.), 7000 MHz (O.C.), 7200 MHz (O.C.), 7400 MHz (O.C.), 7600 MHz (O.C.), 7800 MHz (O.C.)

Egenskaper

Minnesarkitektur med dubbel kanal, Intel Extreme Memory Profiles (XMP)

Formfaktor

ATX

Accessories

Cables 2 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties package 1 x M.2 Q-Latch package 1 x ROG Strix stickers 1 x ROG Strix thank you card 1 x M.2 Rubber Packages Documentation 1 x User guide

Audio Codec

SupremeFX (ALC4080)

Gränssnitt

1 x HDMI 1 x DisplayPort 1 x USB-C 3.2 Gen2x2 1 x USB-C 3.2 Gen 1 1 x USB 3.2 Gen 2 4 x USB 2.0 2 x USB 3.2 Gen 1 1 x mikrofon - mini-jack 1 x ljudutgång (center/subwoofer) - mini-jack 1 x ljudutgång (bakre) - mini-jack 1 x ljudingång - mini-jack 2 x antenn 1 x ljudutgång - mini-jack 1 x LAN (2.5Gigabit Ethernet)

HDMI-version

2.1

Produktlänk

https://rog.asus.com/motherboards/rog-strix/rog-strix-b760-a-gaming-wifi/

RAID-nivåer

0, 1, 5, 10

Manageability

WOL by PME

Minneskanaler

Dubbla kanaler

Lagringsportar

4 x SATA-600 (RAID), 3 x M.2

Typ av produkt

Moderkort - ATX

Wi-Fi-standard

Wi-Fi 6E (802.11ax)

BIOS-egenskaper

UEFI BIOS, ASUS EZ Flash 3, ASUS UEFI BIOS EZ-läge

Maximal storlek

128 GB

Processorsockel

LGA 1700

RAID-egenskaper

Intel Rapid Storage Technology

Strömkontakter

24-pin kontakt för huvudström, 8-pin ATX12V-kontakt, 4-pin ATX12V-kontakt

Max. RAM-storlek

128 GB

Operating System

Windows 11, Windows 10 64-bit

Processor-socket

1 x LGA1700-uttag

Special Features

Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - CPU Socket lever protector - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Aura RGB header - Addressable Gen 2 headers

Bluetooth-version

5.3

FabrikatProduktnr

4711387114063

Hörlursutgångar

1

Software Features

ROG Exclusive Software - GameFirst VI - ROG CPU-Z - Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Suite Companion - Sonic Radar III - DTS Sound Unbound ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - Aura Creator - Aura Sync - Fan Xpert 4 - Power Saving - Two-Way AI Noise Cancellation - Performance and Power Saving Utility AI Suite 3 - DIGI+ VRM - PC Cleaner MyAsus Adobe Creative Cloud (Free Trial) Norton 360 for Gamers WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode MemTest86

Produktbeskrivning

ASUS ROG STRIX B760-A GAMING WIFI - moderkort - ATX - LGA1700-uttag - B760

USB 2.0 anslutning

1

Antal Displayportar

1

Antal minnesplatser

4

DisplayPort-version

1.4

Hårdvaruegenskaper

ASUS OptiMem II, ASUS Extreme Engine Digi+, ASUS Q-Design, 5K Black Metallic Capacitors, M.2 Q-Latch, Q-DIMM, Q-LED, Q-Slot, PCIe Slot Q-Release, BIOS FlashBack LED, BIOS FlashBack-knapp, CPU-uttagsskydd, förmonterat I/O-skydd, ASUS ProCool, ASUS SafeDIMM, ASUS SafeSlot, Savitech SV3H712-förstärkare, ASUS Aura Sync, detekteringsteknik för ljudjack, automatisk enhets-igenkänning, CrashFree BIOS 3, ASUS EZ DIY, 12+1 Phase Power Design, 6 Layer PCB, M.2 kylfläns, DIY Friendly Design, VRM-kylelementskonstruktion, LANGuard

Interna gränssnitt

1 x USB-C 3.2 Gen 2 - header 2 x USB 3.2 Gen 1 - header 3 x USB 2.0 - header 1 x ljud - header 1 x Thunderbolt - header 1 x SPDIF-ut - header

Lagringsgränssnitt

SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5 PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Ljudutgångskanaler

7.1 kanaler

Medföljande kablar

2 x Seriell ATA-kabel

Minnets hastigheter

7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 MHz

USB/FireWire-portar

1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 1 + 1 x USB 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 4 x USB 2.0 + (1 x USB-C 3.2 Gen 2 + 2 x USB 3.2 Gen 1 + 3 x USB 2.0 via headers)

Viloläge/väckning

Wake on LAN (WOL), wake on PME

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 (20G) port (1 x USB Type-C) 1 x USB 3.2 Gen 2 (10G) port (1 x Type-A) 3 x USB 3.2 Gen 1 (5G) ports (2 x Type-A, 1 x USB Type-C) 4 x USB 2.0 ports (4 x Type-A) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x BIOS FlashBack button

Maximalt internminne

128 GB

Moderkort formfaktor

ATX

Moderkortets chipset

Intel B760

Nätverksgränssnitt

2.5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax (Wi-Fi 6E), Bluetooth 5.3

Processortillverkare

Intel

Antal M.2 (M)-platser

3

Expansionskortplatser

1 x CPU 4 x DIMM 288-stift 1 x PCIe 5.0 x16 1 x PCIe 3.0 x16 (x4-läge) 2 x PCIe 3.0 x1 2 x M.2 socket (2242/2260/2280 M.2 Key M-plats) 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M-plats)

Standarder som följs

HD-ljud, DTS Sound Unbound

Antal Ethernet (RJ-45)

1

Inkluderade tillbehör

ASUS Wi-Fi rörlig antenn, kabelband, M.2 Q-Latch, STRIX-märken, ROG tackkort, M.2 bakre plåt gummipaket, termisk platta fär M.2 SSD

Kompatibla processorer

(stöder 12:e och 13:e generationens Intel Core / Pentium Gold / Celeron)

Minnestyper som stöds

DDR5-SDRAM

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector Storage related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2 (10G) connector (supports USB Type-C) 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports 1 x USB 2.0 header and 1 x USB 2.0 5-1 pin header support 3 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Aura RGB header 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x S/PDIF Out header 1 x 20-5 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header

Antal SATA III kontakter

4

Medföljande programvara

ROG GameFirst VI, ROG CPU-Z, Sonic Studio III, Sonic Radar III, Sonic Studio Virtual Mixer, Sonic Suite Companion, AIDA64 Extreme (60 dagars testperiod), ASUS AURA Creator, ASUS Fan Xpert 4, ASUS AI Suite III, Armoury Crate, PC Cleaner, MyAsus, Norton 360 for Gamers, WinRAR, Adobe Creative Cloud (1 månads provperiod), MemTest86

Thunderbolt-anslutningar

1

Registrerad eller buffrad

Ej buffrad

Antal USB 2.0 anslutningar

4

Maximalt antal processorer

1

Stöder Ram Integrity Check

Icke ECC, on-die ECC

Typ av ethernet-gränssnitt

2.5 Gigabit Ethernet

Uttag för mikrofon/linje in

Ja

Antal anslutningar för fläktar

4

Stöd för parallellprocessteknik

Stöds inte

Antal USB 3.2 Gen 2x2 typ C-portar

1

PCI Express x1 (Gen 3.x)-kortplatser

2

PCI Express x16 (Gen 3.x)-kortplatser

1

USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar

1

USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar

1

Antal USB 3.2 Gen 1 (3.1 Gen 1)typ C-portar

1

Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar

2

Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar

1
