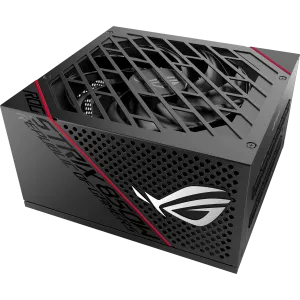

ROG-STRIX-850G

Fläktstorlek

135 mm

Effekt

850 W

Dimensioner

16 15 8.6 Centimeter

Effektivitet

80+ Gold

Skydd

OPP/OVP/UVP/SCP/OCP/OTP

EPS-kontakter

2

SATA-kontakter

8

PCIe 8-pin-kontakter

6

Övriga specifikationer

MTBF

>120,000 hrs @ 25°C

PFC Type

Active PFC

Maximum Load

20A 20A 70A 0.3A 3A

Combined Load

100W 100W 840W 3.6W 15W

RGB Connector

NO

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

AC Input Range

100-240Vac

Package Contents

Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x2 (1000mm) PCIE 1-to-2 Cable x3 (675+75mm) SATA 1-to-4 Cable x1 (410+150+150+150mm) SATA 1-to-4 Cable x1 (450+120+120+120mm) Peripheral 1-to-3 Cable x2 (450+120+120mm) ROG badge x 2 ROG logo magnet x 1 ROG label x 3 *MB/ CPU/ PCI-E cables come with embedded capacitors in the middle.

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Hazardous Materials

ROHS

Cybenetics Noise Level Certification
