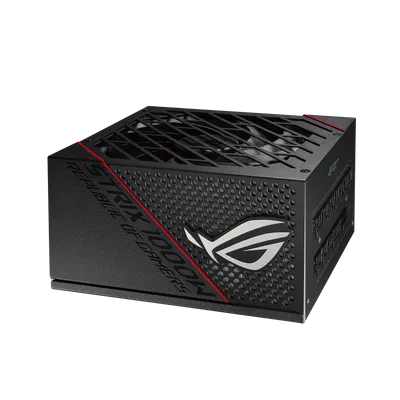

ROG STRIX 1000W Gold (16-pin cable)

Vikt

1.88 kg

Effekt

1000 W

Dimensioner

16 15 8.6 Centimeter

Effektivitet

80+ Gold

Skydd

OPP/OVP/UVP/SCP/OCP/OTP

EPS-kontakter

2

SATA-kontakter

8

12VHPWR-kontakter

1

PCIe 8-pin-kontakter

3

Övriga specifikationer

MTBF

>120,000 hrs @ 25°C

Weight

1.88 Kg (single PSU)

PFC Type

Active PFC

Maximum Load

25A 25A 83A 0.3A 3A

Combined Load

125W 125W 996W 3.6W 15W

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

AC Input Range

100-240Vac

Package Contents

Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5 (8-pin-8-pin-to-16-pin) Cable x 1 (675mm) PCI-E 1-to-1 Cable x 3 (675mm) SATA 1-to-4 Cable x 1 (450+120+120+120mm) SATA 1-to-4 Cable x 1 (410+150+150+150mm) Peripheral 1-to-4 Cabel x 1 (450+120+120+120mm) Join the ROG badge x 2 ROG logo magnet x 1 ROG label x 3 Chassis Screws Package x 1 User Manual x 1

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Hazardous Materials

ROHS
