Mesh-stöd

AiMesh

Övriga specifikationer

LAN

DHCP Server, IPTV, LAN Link Aggregation, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 128, Wake on LAN (WOL)

VPN

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion

WAN

Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP, Dual WAN, 3G / 4G LTE Dongle, 4G / 5G Auto Mobile Tethering, Port Forwarding, • Maximum Port Forwarding Rule : 64, Port Triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

Spel

Game Boost / Acceleration, WTFast, ROG_First, OpenNAT (Game Profile), Gaming Port

Knapp

WPS Button, Reset Button, Power Switch, LED control Button

Minne

256 MB Flash and 2 GB RAM

AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node

Antenn

External antenna x 8

Portar

1 x 10Gbps for WAN/LAN 1 x 2.5Gbps for WAN/LAN 1 x 10Gbps for LAN 3 x 2.5Gbps for LAN 1 x RJ45 10/100/1000Mbps for LAN 1 x USB 3.2 Gen1 1 x USB 2.0

Security

WiFi Encryption : WPA/WPA2/WPA3 Personal WPA/WPA2/WPA3 Enterprise Open System & OWE, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

Processor

2.6GHz quad-core processor

Trådlös

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming

Modellnamn

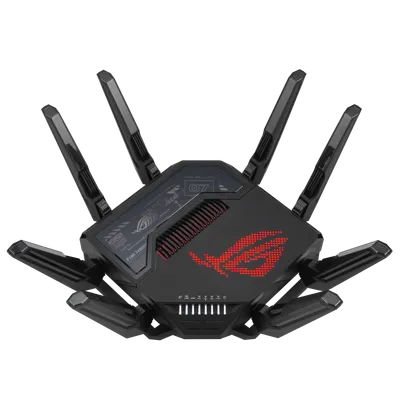

GT-BE98

LED-visning

WAN(Internet) x1 10G LAN x1 1G/2.5G LAN x1 6GHz x1 5GHz-1 x 1 5GHz-2 x 1 2.4GHz x1 Power x1

USB-program

4G / 5G Auto Mobile Tethering, File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, Safely Remove Disk, AiCloud, Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges

AiProtection

AiProtection Pro, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking

Wi-Fi-teknik

OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 4096-QAM high data rate 20/40/80/160/320 MHz bandwidth

Datahastighet

2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps\n5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps\n5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbps\n6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbps

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network.", • Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5, Guest Network Connection time limit, Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal

Administration

Configuration Backup and Restore, Diagnosis Tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update

Driftsfrekvens

2.4 GHz / 5 GHz / 6 GHz

Operating Mode

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

Produktsegment

BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps

Skicka/Ta emot

2.4GHz 4x4\n5GHz-1 4x4\n5GHz-2 4x4\n6GHz 4x4

User Interface

Operating system : ASUSWRT

Produktvikt (g)

2000 g

Trafikhantering

Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History

Nätverksstandard

WiFi 6 (802.11ax)\nWiFi 7 (802.11be)\nIEEE 802.11a\nIEEE 802.11b\nIEEE 802.11g\nIEEE 802.11n\nIEEE 802.11ac\nIPv4\nIPv6

Paketets inehåll

GT-BE98 quad-band gaming router RJ-45 cable Power adapter Quick Start Guide Warranty card

Föräldrakontroll

"Allow you to block access to unwanted websites and apps.", Parental Control Customized Internet Schedule, • Maximum Parental Control profile : 64, • Maximum Parental Control content filter rule : 64

Product Dimensions

350.41 x 350.41 x 220.6 mm

Strömförsörjning

AC Input : 110V~240V(50~60Hz) DC Output : 19.5 V with max. 3.33 A current
