Mesh-stöd

AiMesh

Övriga specifikationer

LAN

DHCP Server, IGMP Snooping, IPTV, LAN Link Aggregation, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)

VPN

VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion

WAN

Internet Connection Type : Automatic IP, Static IP, PPPoE (MPPE supported), PPTP, L2TP, Dual WAN, WAN Aggregation, 3G / 4G LTE Dongle, 4G / 5G Auto Mobile Tethering, Port Forwarding, • Maximum Port Forwarding Rule : 64, Port Triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay

Spel

Game Boost / Acceleration, Game Radar, WTFast, ROG_First, OpenNAT (Game Profile), Gaming Port

Knapp

WPS Button, Reset Button, Power Switch, WiFi on/off Button, Boost Key Button

Minne

256MB NAND flash and 1GB DDR3 SDRAM

AiMesh

AiMesh, • Primary AiMesh Router, • AiMesh Node

Antenn

External antenna x 8

Portar

RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4, RJ45 for 2.5G BaseT for WAN/LAN x 1, USB 3.2 Gen 1 x 2

Security

WiFi Encryption : WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPS support, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 32, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

Processor

1.8GHz quad-core processor

Trådlös

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Wi-Fi Radar, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming

Modellnamn

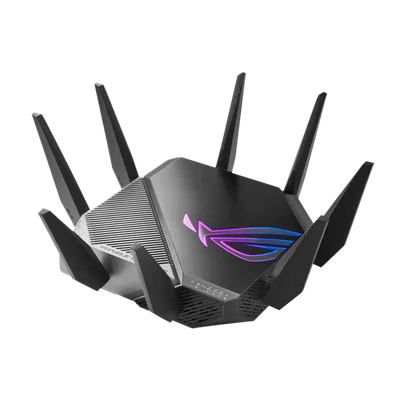

GT-AXE11000

Smart Home

Support IFTTT

LED-visning

Power x 1 2.4G x 1 5G x 1 6G x 1 2.5GE Port x 1 LAN x 1 WAN x 1

USB-program

4G / 5G Auto Mobile Tethering, File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, Safely Remove Disk, AiCloud, Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges

AiProtection

AiProtection Pro, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking

Wi-Fi-teknik

OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth * The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

Datahastighet

2.4GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40MHz, up to 1148Mbps\n5GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps\n6GHz AX: 4x4 (Tx/Rx) 1024 QAM 20/40/80/160MHz, up to 4804Mbps

Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network.", • Maximum Guest Network Rule : 2.4 GHz x 3, 5 GHz x 3, 6 GHz x 3, Guest Network Connection time limit, Guest Network Encryption : Open system, WPA/WPA2-Personal

Administration

Configuration Backup and Restore, Diagnosis Tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update

Driftsfrekvens

Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6GHz

Operating Mode

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

Produktsegment

AXE11000 ultimate AX/AXE performance

Skicka/Ta emot

2.4GHz 4x4\n5GHz 4x4\n6GHz 4x4

User Interface

Operating system : ASUSWRT

Produktvikt (g)

1782g

Trafikhantering

Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, -- Maximum Traditional QoS Rule : 32, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History

Nätverksstandard

WiFi 6 (802.11ax)\nWiFi 6E (802.11ax)\nBackwards compatible with 802.11a/b/g/n/ac Wi-Fi

Paketets inehåll

GT-AXE11000 WiFi Gaming Router RJ-45 Cable Power Adapter Quick Start Guide Warranty Card

Föräldrakontroll

"Allow you to block access to unwanted websites and apps.", Parental Control Customized Internet Schedule, • Maximum Parental Control profile : 16, • Maximum Parental Control content filter rule : 16

Product Dimensions

328*328*179 mm

Strömförsörjning

AC Input : 110V~240V(50~60Hz) DC Output : 19 V with max. 3.42 A /19.5 V with max. 3.33 A
