- EAN
- 4711387747223
- LAN
- 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet
- SKU
- 90MB1ID0-M0EAY0
- Typ
- Ljudkort
- USB
- Rear USB (Total 11 ports) 2 x Thunderbolt 4 ports (2 x USB Type-C) 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 10 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)* 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A * USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A
- BIOS
- 256 Mb Flash ROM, UEFI AMI BIOS
- GPSR
- ASUS Computer GmbH Harkortstrasse 21-23 40880 Ratingen DE [email protected]
- Ljud
- High Definition Audio (8-kanalig)
- Wi-Fi
- Ja
- Modell
- ROG MAXIMUS Z890 HERO
- Teknik
- DDR5
- Chipset
- Intel Z890
- Lagring
- M.2-uttag, SlimSAS slot, Serial ATA-600 (RAID)
- BIOS-typ
- AMI
- Kretstyp
- Intel Z890
- Nätverk
- 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet
- Antal M.2
- 6 st
- Bluetooth
- Ja
- Ljudchipp
- Realtek ALC4082
- RAM-stöd
- 4 DIMM-kortplatser - DDR5, icke ECC, ej buffrad
- Anslutning
- PCI-Express 5.0 x16
- Bussklocka
- 4400 MHz (O.C.), 4600 MHz (O.C.)
- Egenskaper
- NitroPath-teknologi, Intel Extreme Memory Profiles (XMP), Minnesarkitektur med dubbel kanal
- Formfaktor
- ATX
- Produkttyp
- Moderkort
- RAID-stöd
- Ja
- Accessories
- Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x DDR5 fan holder 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x M.2 Q-Latch package 3 x M.2 Q-Slide packages 1 x ROG stickers 6 x M.2 rubber packages 1 x ROG thank you card 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide
- Audio Codec
- SupremeFX ALC4082 / ESS ES9219
- Gränssnitt
- 1 x SPDIF-utgång, 1 x HDMI, 4 x USB 3.2 Gen 1, 1 x mikrofon - mini-jack, 1 x LAN (5Gigabit Ethernet), 2 x antenn, 1 x LAN (2.5Gigabit Ethernet), 2 x Thunderbolt 4/DisplayPort/USB4, 4 x USB 3.2 Gen 2, 1 x ljudutgång - mini-jack, 1 x USB-C 3.2 Gen 2
- Kategorivag
- Datorkomponenter > Moderkort > Intel Socket 1851
- Tillverkare
- ASUS
- Produktlinje
- ASUS
- Produktlänk
- https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-hero/
- RAID-nivåer
- 0, 1, 5
- USB/FireWire
- USB 3.2 Gen 2, USB 3.2 Gen 1, USB-C 3.2 Gen2, USB4
- Manageability
- WOL by PME
- Minneskanaler
- Dubbla kanaler
- Lagringsportar
- 1 x SlimSAS, 4 x SATA-600, 6 x M.2
- News & Updates
- Please see the updated OS support requirements for the Intel Core Ultra 200S Series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility.
- S/PDIF-utgång
- Ja
- Typ av produkt
- Moderkort - ATX
- Wi-Fi-standard
- Wi-Fi 7 (802.11be)
- BIOS-egenskaper
- ASUS UEFI BIOS EZ-läge, UEFI BIOS, ASUS EZ Flash
- Internminnestyp
- DDR5, DDR5 CUDIMM
- Maximal storlek
- 192 GB
- Processorsockel
- LGA 1851 (Socket V1)
- RAM-kortplatser
- 4 DIMM-kortplatser
- Strömkontakter
- 8-stifts PCI Express-strömkontakt, 2 x 8-stifts ATX12V-kontakter, 24-pin kontakt för huvudström
- Max. RAM-storlek
- 192 GB
- Operating System
- Windows 11 (22H2 & later)
- Processor-socket
- LGA1851-uttag
- Produktens färg
- Svart
- Special Features
- Extreme OC Kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Metal backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 header(s) ROG M.2 PowerBoost Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.
- Antal HDMI-portar
- 1
- Bluetooth-version
- 5.4
- Software Features
- ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Polymo Lighting II - Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Xpert 4 (with AI Cooling II) - GameFirst - Power Saving - Hwinfo ASUS AI Advisor ASUS DriverHub ASUS GlideX Thunderbolt Share USB Wattage Watcher TurboV Core Adobe Creative Cloud (Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS NPU Boost AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey
- Datalänkprotokoll
- Fast Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11be (Wi-Fi 7), Gigabit Ethernet, Ethernet, 5 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11ac, IEEE 802.11n, IEEE 802.11ax (Wi-Fi 6E), Bluetooth 5.4, IEEE 802.11g
- Minnesplatser, typ
- DIMM
- Produktbeskrivning

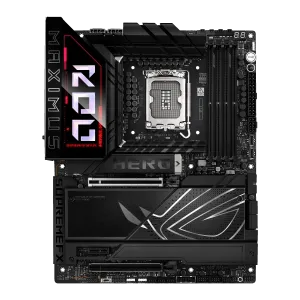

- ASUS ROG MAXIMUS Z890 HERO - moderkort - ATX - LGA1851-uttag - Z890
- USB 2.0 anslutning
- 2
- Antal minnesplatser
- 4
- Hårdvaruegenskaper
- ASUS Enhanced Memory Profile (AEMP) III, LANGuard, DIY Friendly Design, FlexKey-knapp, Chipset kylelement, M.2 bakre kylelementsplåt, 22+1+2+2 Phase Power Design, 10K Black Metallic Capacitors, ASUS SafeDIMM, M.2 kylfläns, PCIe Slot Q-Release, AI Överklockning, Q-Release Slim, ASUS Extreme OC Kit, Förmonterat I/O-skydd, AI Cooling II, ASUS EZ DIY, BIOS FlashBack-knapp, CUDIMM stöds, Intel Turbo Boost Max Technology 3.0, ASUS Aura Sync, M.2 Q-Latch, ASUS Q-Connector, ReTry-knapp, ASUS ProCool II, Bakre metallplåt, Q-Code, NPU Boost, MicroFine Alloy Chokes, Intel Turbo Boost-teknologi 2.0, Clear CMOS-knapp, Polymo Lighting II, Q-LED, Startknapp, ASUS SafeSlot, AI Nätverk II, ASUS Extreme Engine Digi+, Quick Charge 4+, Q-Antenna, Q-Dashboard, ROG M.2 PowerBoost, ASUS Q-Design, VRM-kylelementskonstruktion, CPU-uttagsskydd, M.2 Q-Release, Q-Slot, CrashFree BIOS 3
- Interna gränssnitt
- 4 x USB 3.2 Gen 1 - header, 4 x USB 2.0 - header, 1 x USB-C 3.2 Gen 2 - header, 1 x Thunderbolt 4 - header, 1 x USB-C 3.2 Gen 2x2 - header, 1 x ljud - header
- Lagringsgränssnitt
- SATA-600 / PCIe 4.0 -kontakter: 1 x SlimSAS, PCIe 5.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -kontakter: 4 x 7 pin Seriell ATA, PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
- Ljudutgångskanaler
- 7.1 kanaler
- Medföljande kablar
- 4 x SATA expresskabel
- Trådlöst nätverk
- Ja
- USB/FireWire-portar
- 2 x USB4 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + (1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)
- Viloläge/väckning
- Wake on PME, Wake on LAN (WOL)
- Back Panel I/O Ports
- 2 x Thunderbolt 4 USB Type-C ports 5 x USB 10Gbps ports (4 x Type-A + 1 x USB Type-C) 4 x USB 5Gbps ports (4 x Type-A) 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
- Maximalt internminne
- 192 GB
- Moderkort formfaktor
- ATX
- Moderkortets chipset
- Intel Z890
- Nätverksgränssnitt
- 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet
- Processortillverkare
- Intel
- Antal M.2 (M)-platser
- 6
- Expansionskortplatser
- 1 x CPU, 5 x M.2 socket (2242/2260/2280 M.2 Key M-plats), 1 x PCIe 4.0 x16 (x4-läge), 1 x PCIe 5.0 x16, 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M-plats), 4 x DIMM 288-stift, 1 x PCIe 4.0 x1
- RAM-teknik som stöds
- DDR5 SDRAM
- Standarder som följs
- DisplayPort 2.1
- Inkluderade tillbehör
- ROG-dekaler, M.2 Q-Latch, Q-Connector, ROG tackkort, 6 x M.2 backplåt gummipaket, ROG flasköppnare, 3 x M.2 Q-Slide, DDR5 fläkthållare, ASUS Wi-Fi Q-antenna, USB-enhet, Termisk platta fär M.2 SSD, ARGB RGB förlängningskabel
- Kompatibla processorer
- (stödjer Intel Core Ultra-processorer (serie 2))
- Minnestyper som stöds
- DDR5-SDRAM
- Programvara inkluderad
- ASUS Fan Xpert 4, ASUS GlideX, Thunderbolt Share, ASUS AURA Creator, HWiNFO, AIDA64 Extreme (1 års licens), Adobe Creative Cloud (kostnadsfri provperiod), TurboV Core, ROG CPU-Z, ROG GameFirst Utility, ASUS AI Advisor, WinRAR (40 days trial), ASUS DriverHub, USB Wattage Watcher, Armoury Crate
- Internal I/O Connectors
- Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ headers Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connectors 1 x 8-pin PCIe Power connector Storage Related 6 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS connector USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 10Gps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header
- Antal SATA III kontakter
- 4
- Antal Thunderbolt-portar
- 2
- Medföljande programvara
- ROG CPU-Z, AIDA64 Extreme (1 års licens), Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, Adobe Creative Cloud (kostnadsfri provperiod), ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, HWiNFO, ROG GameFirst Utility, Thunderbolt Share, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)
- RAM-hastighet som stöds
- 4400 MHz (O.C.), 4600 MHz (O.C.)
- Thunderbolt-anslutningar
- 1
- Registrerad eller buffrad
- Ej buffrad
- Maximalt antal processorer
- 1
- Stöder Ram Integrity Check
- Icke ECC
- Typ av ethernet-gränssnitt
- 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
- Nätverksansluten (Ethernet)
- Ja
- USB 3.2 Gen 2x2-anslutningar
- 1
- Uttag för mikrofon/linje in
- Ja
- Antal LAN (RJ-45) anslutningar
- 2
- Antalet hårddiskar som stöds
- 4
- Kompatibla processorkommentarer
- Stödjer Intel Core Ultra-processorer (serie 2)
- Producentens garanti (månader)
- 24
- Antal anslutningar för fläktar
- 4
- Antal lagringsenheter som stöds
- 10
- PCI Express x1 (Gen 4.x) platser
- 1
- PCI Express x16 (Gen 4.x) platser
- 1
- PCI Express x16 (Gen 5.x) platser
- 1
- Stöd för parallellprocessteknik
- Stöds inte
- Lagringsenhetsgränssnitt som stöds
- M.2, SATA III
- Minnesklockhastighet som stöds (max)
- 8800 MHz
- USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar
- 2
- USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar
- 1
- USB/FireWire-portkonfiguration (aktiv)
- 2 x USB4 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1
- USB/FireWire-portkonfiguration (sidhuvud)
- 1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
- RAM som stöds (registrerad eller buffrad)
- Ej buffrad
- Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar
- 4
- Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar
- 4
- Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar
- 1
