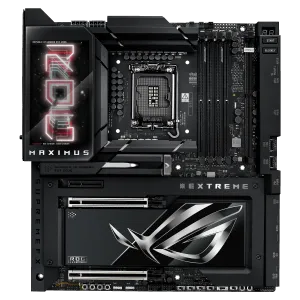

ROG MAXIMUS Z890 EXTREME

Övriga specifikationer

EAN

4711387754153

LAN

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 10 Gigabit Ethernet

SKU

90MB1IA0-M0EAY0

Typ

Ljudkort

USB

Rear USB (Total 10 ports) 2 x Thunderbolt 5 ports (2 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C) Front USB (Total 10 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)* 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A *USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

BIOS

2 x 64 MB (512Mb) Flash ROM, UEFI AMI BIOS

Ljud

High Definition Audio (8-kanalig)

Wi-Fi

Ja

Modell

ROG MAXIMUS Z890 EXTREME

Teknik

DDR5

Chipset

Intel Z890

Lagring

M.2-uttag, Serial ATA-600 (RAID), DIMM.2

BIOS-typ

AMI

Kretstyp

Intel Z890

Nätverk

Bluetooth 5.4, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 10 Gigabit Ethernet

Antal M.2

6 st

Bluetooth

Ja

Ljudchipp

Realtek ALC4082

RAM-stöd

4 DIMM-kortplatser - DDR5, icke ECC, ej buffrad

Anslutning

PCI-Express 5.0 x16

Bussklocka

4600 MHz (O.C.)

Egenskaper

NitroPath-teknologi, Intel Extreme Memory Profiles (XMP), Minnesarkitektur med dubbel kanal

Formfaktor

E-ATX

Produkttyp

Moderkort

RAID-stöd

Ja

Accessories

Cables 1 x 1-to-3 ARGB splitter cable 1 x 1-to-2 ARGB splitter cable 2 x 1-to-4 fan splitter cable 2 x ROG weave SATA 6G cable packages 1 x 3-in-1 Thermistor cables pack ROG Q-DIMM.2 with Heatsink 1 x ROG Q-DIMM.2 with heatsink 1 x M.2 pad package for ROG Q-DIMM.2 2 x Thermal pad for ROG Q-DIMM.2 Additional Cooling Kit 2 x Thermal pad for M.2 22110 1 x DDR5 Fan holder Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x ROG logo plate sticker 1 x ROG screwdriver 1 x ROG stickers 1 x ROG VIP card 2 x M.2 Q-Slide packages 6 x M.2 backplate rubber packages 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide

Audio Codec

SupremeFX ALC4082 / ESS ES9219

Gränssnitt

2 x antenn, 1 x ljudutgång - mini-jack, 5 x USB 3.2 Gen 2, 1 x SPDIF-utgång, 1 x LAN (2.5Gigabit Ethernet), 1 x mikrofon - mini-jack, 2 x USB-C 3.2 Gen 2, 1 x HDMI, 2 x Thunderbolt 5, 1 x USB-C 3.2 Gen2x2, 1 x LAN (10Gigabit Ethernet)

Kategorivag

Datorkomponenter > Moderkort > Intel Socket 1851

Tillverkare

ASUS

Produktlinje

ASUS

Produktlänk

https://rog.asus.com/se/motherboards/rog-maximus/rog-maximus-z890-extreme/wtb/

USB/FireWire

USB-C 3.2 Gen2, USB 3.2 Gen 2, USB 3.2 Gen 1, USB4

Manageability

WOL by PME

Minneskanaler

Dubbla kanaler

Lagringsportar

4 x SATA-600 (RAID), 4 x M.2, 1 x DIMM.2

News & Updates

Please see the updated OS support requirements for the Intel Core Ultra 200S Series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility., Please visit our GLOBAL website to check and download the latest updates. The Thunderbolt 5 features on this motherboard are only supported in Windows 11. To ensure the best experience, please install Windows 11 and update to the latest version to access the latest inbox drivers.

S/PDIF-utgång

Ja

Typ av produkt

Moderkort - ATX

Wi-Fi-standard

Wi-Fi 7 (802.11be)

BIOS-egenskaper

ASUS UEFI BIOS EZ-läge, ASUS EZ Flash, UEFI BIOS

Internminnestyp

DDR5, DDR5 CUDIMM

Maximal storlek

192 GB

Processorsockel

LGA 1851 (Socket V1)

RAM-kortplatser

4 DIMM-kortplatser

Strömkontakter

2 x 8-stifts ATX12V-kontakter, 24-pin kontakt för huvudström, 8-stifts PCI Express-strömkontakt

Max. RAM-storlek

192 GB

Operating System

Windows 11 (22H2 & later)

Processor-socket

LGA1851-uttag

Produktens färg

Svart

Special Features

Extreme OC Kit - FlexKey button - LN2 Mode - ProbeIt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot - Q-DIMM.2 ASUS Thermal Solution - Fan bracket - M.2 heatsink backplate - M.2 heatsink - Metal backplate - VRM heatsink design - 3D VC M.2 Heatsink ASUS EZ DIY - Backplate - BIOS FlashBack button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers Dual BIOS Full Color 5" LCD Display ROG M.2 PowerBoost Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.

Antal HDMI-portar

1

Bluetooth-version

5.4

Software Features

ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving - LCD Display ASUS AI Advisor ASUS Driver Hub Turbo Vcore ASUS GlideX Thunderbolt Share USB Wattage Watcher WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide NPU Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey

Datalänkprotokoll

10 Gigabit Ethernet, IEEE 802.11g, IEEE 802.11be (Wi-Fi 7), IEEE 802.11ac, IEEE 802.11a, Bluetooth 5.4, IEEE 802.11ax (Wi-Fi 6E), Fast Ethernet, Gigabit Ethernet, Ethernet, IEEE 802.11b, IEEE 802.11n, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet

Minnesplatser, typ

DIMM

Produktbeskrivning

ASUS ROG MAXIMUS Z890 EXTREME - moderkort - ATX - LGA1851-uttag - Z890

USB 2.0 anslutning

2

Antal minnesplatser

4

Hårdvaruegenskaper

AI Cooling II, Q-LED, Intel Turbo Boost-teknologi 2.0, Startknapp, Chipset kylelement, ROG M.2 PowerBoost, LN2 Switch, VRM-kylelementskonstruktion, CrashFree BIOS 3, Clear CMOS-knapp, ASUS SafeSlot, 10K Black Metallic Capacitors, ASUS ProCool II, ASUS Extreme OC Kit, Säker bootknapp, ProbeIt, ASUS EZ DIY, Bakre metallplåt, Q-Antenna, AI Nätverk II, ASUS Q-Connector, Förmonterat I/O-skydd, Quick Charge 4+, CPU-uttagsskydd, Q-Release Slim, 4 BCLK-knappar, M.2 Q-Release, BIOS FlashBack-knapp, MicroFine Alloy Chokes, Q-Code, M.2 Q-Latch, RSVD-omkopplare, ASUS SafeDIMM, M.2 kylfläns, CUDIMM stöds, ASUS Enhanced Memory Profile (AEMP) III, ASUS Extreme Engine Digi+, 5" LCD fullfärgsskärm, Q-Slot, AI Överklockning, M.2 bakre kylelementsplåt, Intel Turbo Boost Max Technology 3.0, LANGuard, ASUS Q-Design, 24+1+2+2 Phase Power Design, Dubbelt BIOS, Omkopplare för långsamt läge, Q-Dashboard, ReTry-knapp, ASUS Aura Sync, DIY Friendly Design

Interna gränssnitt

4 x USB 3.2 Gen 1 - header, 1 x Thunderbolt 5 - header, 4 x USB 2.0 - header, 1 x USB-C 3.2 Gen 2x2 - header, 1 x USB-C 3.2 Gen 2 - header, 1 x ljud - header

Lagringsgränssnitt

SATA-600 -kontakter: 4 x 7 pin Seriell ATA, PCIe 5.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -kontakter: 1 x M.2 - RAID 0 / RAID 1 / RAID 5, PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Ljudutgångskanaler

7.1 kanaler

Medföljande kablar

4 x SATA expresskabel

Trådlöst nätverk

Ja

USB/FireWire-portar

2 x Thunderbolt 5 + 1 x USB-C 3.2 Gen 2x2 + 2 x USB-C 3.2 Gen 2 + 5 x USB 3.2 Gen 2 + (1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0 via headers)

Viloläge/väckning

Wake on PME, Wake on LAN (WOL)

Back Panel I/O Ports

2 x Thunderbolt 5 USB Type-C ports 1 x USB 20Gbps port (1 x USB Type-C) 7 x USB 10Gbps ports (5 x Type-A + 2 x USB Type-C) 1 x HDMI TM port 1 x Wi-Fi Module 1 x Intel 2.5Gb Ethernet port 1 x Marvell AQtion 10Gb Ethernet port 2 x LED-illuminated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button

Maximalt internminne

192 GB

Moderkort formfaktor

Utökad ATX

Moderkortets chipset

Intel Z890

Nätverksgränssnitt

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 10 Gigabit Ethernet

Processortillverkare

Intel

Expansionskortplatser

2 x PCIe 5.0 x16, 1 x CPU, 4 x M.2 socket (2242/2260/2280 M.2 Key M-plats), 1 x PCIe 4.0 x4, 2 x DIMM.2-uttag (2242/2260/2280/22110 M.2 Key M-plats), 4 x DIMM 288-stift

RAM-teknik som stöds

DDR5 SDRAM

Standarder som följs

DisplayPort 2.1

Inkluderade tillbehör

6 x M.2 backplåt gummipaket, M.2 Q-Latch, ARGB RGB förlängningskabel, ROG-dekaler, ASUS Wi-Fi Q-antenna, USB-enhet, ROG-skruvmejsel, 2 x thermal pads for M.2 SSD, DDR5 fläkthållare, ROG VIP-kort, ROG Q-DIMM.2 med kylfläns, ROG flasköppnare, 2 x M.2 Q-Slide, ROG tackkort, Q-Connector

Kompatibla processorer

(stödjer Intel Core Ultra-processorer (serie 2))

Minnestyper som stöds

DDR5-SDRAM

Programvara inkluderad

Armoury Crate, AIDA64 Extreme (1 års licens), ASUS AURA Creator, Thunderbolt Share, TurboV Core, ASUS DriverHub, ROG CPU-Z, WinRAR (40 days trial), ASUS Fan Xpert 4, Adobe Creative Cloud (kostnadsfri provperiod), USB Wattage Watcher, ASUS AI Advisor, HWiNFO, ASUS GlideX, ROG GameFirst Utility

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 2 x 4-pin Chassis Fan headers 2 x 4-pin Radiator Fan headers 2 x W_PUMP+ headers 1 x WB_SENSOR header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers 2 x Addressable Gen 2 header 1 x Alteration PCIe mode switch 4 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 18 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switchs 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header

Antal SATA III kontakter

4

Antal Thunderbolt-portar

2

Medföljande programvara

ROG CPU-Z, AIDA64 Extreme (1 års licens), Armoury Crate, ASUS AURA Creator, ASUS Fan Xpert 4, Adobe Creative Cloud (kostnadsfri provperiod), ASUS AI Advisor, ASUS DriverHub, ASUS GlideX, HWiNFO, ROG GameFirst Utility, Thunderbolt Share, TurboV Core, USB Wattage Watcher, WinRAR (40 days trial)

RAM-hastighet som stöds

4600 MHz (O.C.)

Registrerad eller buffrad

Ej buffrad

Maximalt antal processorer

1

Stöder Ram Integrity Check

Icke ECC

Typ av ethernet-gränssnitt

2.5 Gigabit Ethernet, 10 Gigabit Ethernet

Nätverksansluten (Ethernet)

Ja

USB 3.2 Gen 2x2-anslutningar

1

Uttag för mikrofon/linje in

Ja

Antal LAN (RJ-45) anslutningar

2

Antalet hårddiskar som stöds

4

Kompatibla processorkommentarer

Stödjer Intel Core Ultra-processorer (serie 2)

Producentens garanti (månader)

24

Antal anslutningar för fläktar

2

Antal lagringsenheter som stöds

10

PCI Express x4 (Gen 4.x) platser

1

PCI Express x16 (Gen 5.x) platser

2

Stöd för parallellprocessteknik

Stöds inte

Antal USB 3.2 Gen 2x2 typ C-portar

1

Lagringsenhetsgränssnitt som stöds

M.2, SATA III

Minnesklockhastighet som stöds (max)

8800 MHz

USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar

2

USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar

1

USB/FireWire-portkonfiguration (aktiv)

2 x Thunderbolt 5 + 1 x USB-C 3.2 Gen 2x2 + 2 x USB-C 3.2 Gen 2 + 5 x USB 3.2 Gen 2

USB/FireWire-portkonfiguration (sidhuvud)

1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0

RAM som stöds (registrerad eller buffrad)

Ej buffrad

Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar

5

Antal USB 3.2 Gen 2 (3.1 Gen 2) typ C-portar

2
