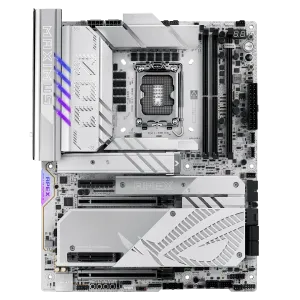

ROG MAXIMUS Z890 APEX

Övriga specifikationer

EAN

4711387754290

SKU

90MB1IP0-M0EAY0

Typ

Ljudkort

USB

Rear USB (Total 11 ports) 2 x Thunderbolt 4 ports (2 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) Front USB (Total 10 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 60W PD/QC4+)* 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A *USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

BIOS

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Djup

244 mm

Ljud

High Definition Audio (8-kanalig)

Bredd

305 mm

Wi-Fi

Ja

Modell

ROG MAXIMUS Z890 APEX

Chipset

Intel Z890

Lagring

M.2-uttag, Serial ATA-600 (RAID)

BIOS-typ

AMI

Kretstyp

Intel Z890

Nätverk

5 Gigabit Ethernet, 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4

Antal M.2

6 st

Bluetooth

Ja

Ljudchipp

Realtek ALC4080

Anslutning

PCI-Express 5.0 x16

Egenskaper

Minnesarkitektur med dubbel kanal, Intel Extreme Memory Profiles (XMP)

Formfaktor

ATX

Produkttyp

Moderkort

RAID-stöd

Ja

Accessories

ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 Additional Cooling Kit 1 x Thermal pad for M.2 22110 1 x ROG Memory Fan Kit Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x ROG VIP card 3 x M.2 Q-Slide package 5 x M.2 backplate rubber packages 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide

Audio Codec

SupremeFX (ALC4080)

Gränssnitt

4 x USB 3.2 Gen 1, 2 x Thunderbolt 4/DisplayPort/USB4, 1 x SPDIF-utgång, 2 x antenn, 1 x mikrofon - mini-jack, 1 x PS/2-tangentbord/mus, 4 x USB 3.2 Gen 2, 1 x LAN (5Gigabit Ethernet), 1 x ljudutgång - mini-jack, 1 x USB-C 3.2 Gen2x2

Kategorivag

Datorkomponenter > Moderkort > Intel Socket 1851

Tillverkare

ASUS

Produktlinje

ASUS

Produktlänk

https://rog.asus.com/motherboards/rog-maximus/rog-maximus-z890-apex/

RAID-nivåer

0, 1, 5, 10

USB/FireWire

USB4, USB-C 3.2 Gen 2x2, USB-C 3.2 Gen2, USB 3.2 Gen 1

Manageability

WOL by PME

Minneskanaler

Dubbla kanaler

Lagringsportar

4 x SATA-600 (RAID), 6 x M.2

News & Updates

Please see the updated OS support requirements for the Intel Core Ultra 200S Series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility., Please visit our GLOBAL website to check and download the latest updates.

S/PDIF-utgång

Ja

Wi-Fi-standard

Wi-Fi 7 (802.11be)

BIOS-egenskaper

ASUS EZ Flash, ASUS UEFI BIOS EZ-läge, UEFI BIOS

Internminnestyp

DDR5, DDR5 CUDIMM

Processorsockel

LGA 1851 (Socket V1)

RAM-kortplatser

2 DIMM-kortplatser

Strömkontakter

24-pin kontakt för huvudström, 8-stifts PCI Express-strömkontakt, 2 x 8-stifts ATX12V-kontakter

Operating System

Windows 11 (22H2 & later)

Processor-socket

LGA1851-uttag

Special Features

Extreme OC Kit - FlexKey button - LN2 Mode - ProbeIt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - SMD Capacitor - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Dashboard - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen 2 headers Dual BIOS Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.

Antal PS/2-portar

1

Bluetooth-version

5.4

Software Features

ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Internet Security (1-year full version) ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - Power Saving - HWiNFO ASUS AI Advisor ASUS Driver Hub ASUS GlideX Turbo Vcore Adobe Creative Cloud (Free Trial) Thunderbolt Share USB Wattage Watcher WinRAR (40 Days Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey NPU Boost

Datalänkprotokoll

IEEE 802.11ac, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11a, 2.5 Gigabit Ethernet, IEEE 802.11be (Wi-Fi 7), 5 Gigabit Ethernet, IEEE 802.11g, Bluetooth 5.4, Ethernet, IEEE 802.11n, Fast Ethernet

Minnesplatser, typ

DIMM

USB 2.0 anslutning

2

Antal minnesplatser

2

Hårdvaruegenskaper

CrashFree BIOS 3, VRM-kylelementskonstruktion, M.2 bakre kylelementsplåt, Säker bootknapp, M.2 Q-Release, PCIe Slot Q-Release, ASUS ProCool II, DualBIOS, LN2 Switch, Q-Antenna, ASUS Extreme OC Kit, ASUS SafeSlot, Q-DIMM, ASUS EZ DIY, CUDIMM stöds, ASUS Q-Design, AI Nätverk II, Q-Release Slim, ASUS SafeDIMM, CPU-uttagsskydd, ProbeIt, BIOS FlashBack-knapp, ASUS Enhanced Memory Profile (AEMP) III, Intel Turbo Boost Max Technology 3.0, LANGuard, Omkopplare för långsamt läge, Chipset kylelement, MicroFine Alloy Chokes, SMD-kondensator, M.2 Q-Latch, 22+1+2+2 Phase Power Design, ASUS Extreme Engine Digi+, Quick Charge 4+, NPU Boost, Q-LED, ASUS Aura Sync, Förmonterat I/O-skydd, Intel Turbo Boost-teknologi 2.0, AI Cooling II, AI Överklockning, ASUS Q-Connector, Clear CMOS-knapp, ReTry-knapp, FlexKey-knapp, M.2 Q-Slide, Q-Dashboard, Q-Code, Startknapp, Q-Slot

Interna gränssnitt

1 x USB-C 3.2 Gen 2x2 - header, 4 x USB 2.0 - header, 1 x ljud - header, 4 x USB 3.2 Gen 1 - header, 1 x Thunderbolt 4 - header, 1 x USB-C 3.2 Gen 2 - header

Lagringsgränssnitt

PCIe 4.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -kontakter: 4 x 7 pin Seriell ATA, PCIe 5.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5

Ljudutgångskanaler

7.1 kanaler

Trådlöst nätverk

Ja

Viloläge/väckning

Wake on PME, Wake on LAN (WOL)

WiFi-AP antennuttag

1

Back Panel I/O Ports

2 x Thunderbolt 4 ports (USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 4 x USB 10Gbps ports (4 x Type-A) 4 x USB 5Gbps ports (4 x Type-A) 1 x Wi-Fi Module 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button 1 x PS/2 keyboard/mouse combo port

Maximalt internminne

96 GB

Moderkort formfaktor

ATX

Moderkortets chipset

Intel Z890

Processortillverkare

Intel

Antal M.2 (M)-platser

6

Expansionskortplatser

2 x DIMM.2-uttag (2230/2242/2260/2280/22110 M.2 Key M-plats), 2 x PCIe 4.0 x4, 3 x M.2 socket (2242/2260/2280 M.2 Key M-plats), 1 x CPU, 2 x PCIe 5.0 x16, 2 x DIMM 288-stift, 1 x M.2 socket (2242/2260/2280/22110 M.2 Key M-plats)

RAM-teknik som stöds

DDR5 SDRAM

Standarder som följs

DisplayPort 2.1

Inkluderade tillbehör

ROG DIMM.2 M.2-platta, ROG minnesfläktkit, Termisk platta fär M.2 SSD, 5 x M.2 backplåt gummipaket, 3 x M.2 Q-Slide, ROG VIP-kort, USB-enhet, ROG flasköppnare, ROG DIMM.2 med kylelement, ASUS Wi-Fi Q-antenna, 2 ROG DIMM.2 M.2-skruvpaket, Q-Connector

Minnestyper som stöds

DDR5-SDRAM

Programvara inkluderad

Thunderbolt Share, AIDA64 Extreme (1 års licens), Adobe Creative Cloud (kostnadsfri provperiod), Drivrutiner och hjälpprogram, WinRAR (40 days trial), ROG CPU-Z, ASUS AI Advisor, Armoury Crate, ASUS AURA Creator, ROG GameFirst Utility, ASUS GlideX, USB Wattage Watcher, ASUS Fan Xpert 4, TurboV Core, ASUS DriverHub, HWiNFO

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 2 x 4-pin Full Speed Fan headers 1 x W_PUMP+ header 1 x Extra Flow Fan header Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector 1 x 8-pin PCIe Power connector Storage related 4 x M.2 slots (Key M) 1 x DIMM.2 slot supports 2 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 10Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 1 x 80 Light Bar jumper 3 x Addressable Gen 2 headers 1 x Alteration PCIe mode switch 4 x BCLK button 1 x BIOS Switch button 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x LN2 Mode jumper 1 x Pause switch 18 x ProbeIt Measurement Points 1 x ReTry button 2 x RSVD switches 1 x RSVD header 1 x Safe Boot button 1 x Slow Mode switch 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header* *The Thunderbolt card can only be used when installed to the PCIEX4(G4)_2 slot. Ensure to install your Thunderbolt card to the PCIEX4(G4)_2 slot.

Antal SATA III kontakter

4

Antal Thunderbolt-portar

2

RAM-hastighet som stöds

4800 MHz (O.C.)

Thunderbolt-anslutningar

1

Stöder Ram Integrity Check

On-die ECC, Icke ECC

Typ av ethernet-gränssnitt

5 Gigabit Ethernet

Nätverksansluten (Ethernet)

Ja

USB 3.2 Gen 2x2-anslutningar

1

Uttag för mikrofon/linje in

Ja

Antal LAN (RJ-45) anslutningar

1

Antalet hårddiskar som stöds

4

Kompatibla processorkommentarer

Stödjer Intel Core Ultra-processorer (serie 2)

Producentens garanti (månader)

24

Antal anslutningar för fläktar

2

Antal lagringsenheter som stöds

10

PCI Express x4 (Gen 4.x) platser

2

PCI Express x16 (Gen 5.x) platser

2

Stöd för parallellprocessteknik

Stöds inte

Antal USB 3.2 Gen 2x2 typ C-portar

1

Lagringsenhetsgränssnitt som stöds

M.2, SATA III

USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar

2

USB 3.2 Gen 2 (3.1 Gen 2)-anslutningar

1

USB/FireWire-portkonfiguration (aktiv)

2 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 2 + 4 x USB 3.2 Gen 1

USB/FireWire-portkonfiguration (sidhuvud)

1 x USB-C 3.2 Gen 2x2 + 1 x USB-C 3.2 Gen 2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0

RAM som stöds (registrerad eller buffrad)

Ej buffrad

Antal USB 3.2 Gen 1 (3.1 Gen 1) typ A-portar

4

Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar

4
