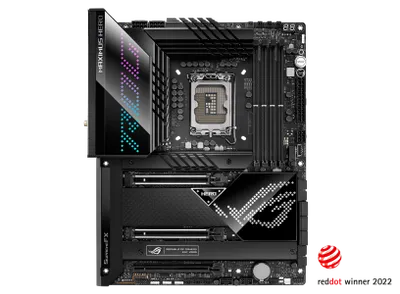

ROG MAXIMUS Z690 HERO

WiFi

WiFi 6

Sockel

LGA 1700

Chipset

Z690

M.2-platser

5

Ethernet

2.5 Gigabit

Max minne

192 GB

PCIe-platser

2x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe . x16

SATA-portar

6

Ljudkodek

SupremeFX ALC4082

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

HDMI x1, Thunderbolt 4 x2

Max minneshastighet

6400 MHz

Övriga specifikationer

USB

Rear USB:Total 11 ports, 2 x Thunderbolt 4 ports (2 x USB Type-C) 7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C) 2 x USB 2.0 ports (2 x Type-A), 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables 1 x ARGB RGB extension cable 1 x RGB extension cable 4 x SATA 6Gb/s cables ROG Hyper M.2 Card 1 x ROG Hyper M.2 Card with heatsink 2 x M.2 screw packages for ROG Hyper M.2 Card Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 Q-Latch package 2 x M.2 Q-Latch packages for M.2 backplate 1 x M.2 Rubber Package 1 x Q-connector 1 x ROG Graphics card holder 1 x ROG stickers 1 x ROG key chain 1 x ROG thank you card Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User Guide

Manageability

WOL by PME, PXE

Special Features

Extreme OC Kit - FlexKey button - ReTry button - Start button Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - PCIe Slot Q-Release - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - CPU Socket lever protector - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - AURA RGB header(s) - Addressable Gen 2 header(s) Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W ASUS HYDRANODE - 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P) * Visit ASUS Website for the latest compatibility list.
