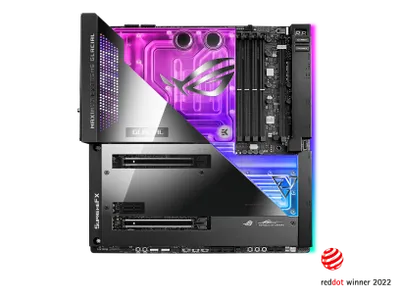

ROG MAXIMUS Z690 EXTREME GLACIAL

WiFi

WiFi 6

Sockel

LGA 1700

Chipset

Z690

M.2-platser

5

Ethernet

10 Gigabit

Max minne

192 GB

PCIe-platser

2x PCIe 5.0 x16, 1x PCIe 3.0 x1, 1x PCIe . x16

SATA-portar

6

Ljudkodek

SupremeFX ALC4082

Dimensioner

305 277 mm

Formfaktor

EATX

Minnestyp

DDR5

Minnesplatser

4

Max minneshastighet

6400 MHz

Övriga specifikationer

USB

Rear USB:Total 10 ports, 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C), Front USB:Total 10 ports, 1 x Thunderbolt 4 connector (1 x USB Type-C) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) 2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

BIOS

2 x 256 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables 1 x 1-to-3 ARGB splitter cable 1 x 1-to-2 ARGB splitter cable 2 x 1-to-4 fan splitter cables 1 x RGB extension cable 3 x ROG weave SATA 6G cables 1 x 3-in-1 Thermistor cables pack ROG Fan Controller 1 x ROG Fan Controller 1 x Fan EXT PWR cable 1 x ARGB input cable 1 x USB input cable 1 x ROG Fan Controller 3M Mounting tape 1 x Fan Controller manual ROG DIMM.2 with Heatsink 1 x ROG DIMM.2 with heatsink 1 x M.2 pad for ROG DIMM.2 2 x M.2 screw package for ROG DIMM.2 Additional Cooling Kit 1 x Monoblock 3 x Screw package for monoblock 1 x Thermal pad for monoblock 1 x Fittings for monoblock 1 x M.2 heatsink Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x M.2 SSD screw package 1 x Q-connector 1 x ROG CLAVIS DAC 1 x ROG graphics card holder 1 x ROG key chain 1 x ROG logo plate stickers 1 x ROG screwdriver 1 x ROG stickers 1 x ROG thank you card Installation Media 1 x USB drive with utilities and drivers Documentation 1 x User guide

Manageability

WOL by PME, PXE

Special Features

Extreme OC Kit - FlexKey button - LN2 Mode - Probelt - ReTry button - Safe boot button - Start button - Slow Mode Extreme Engine Digi+ - 10K Black Metallic Capacitors - MicroFine Alloy Choke ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - Steel backplate - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - ROG AURA sync backplate - AURA RGB header(s) - Addressable Gen 2 header(s) Dual BIOS OLED 2" Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W ASUS HYDRANODE - 2 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P) * Visit ASUS Website for the latest compatibility list.
