Övriga specifikationer

Obs!

Note:* / 1. Display size is an approximation. / 2. Dimension is the diagonal measurement of the display. / 3. The display size may be exceeded as long as the weight of the display does not exceed the maximum weight capacity of the mount.

Vikt

Weight Capacity:3~11.5 Kg(Flat display) / 3~8.5 Kg(Curve display), Net Weight : 4.5 kg (9.92 lbs), Gross Weight : 5.8 kg (12.79 lbs)

Mått

Phys. Dimension : 57.8 x 65.6 x 15.4 cm (22.76" x 25.83" x 6.06"), Box Dimension : 77.5 x 13.5 x 23.2 cm (30.51" x 5.31" x 9.13")

Mekanisk design

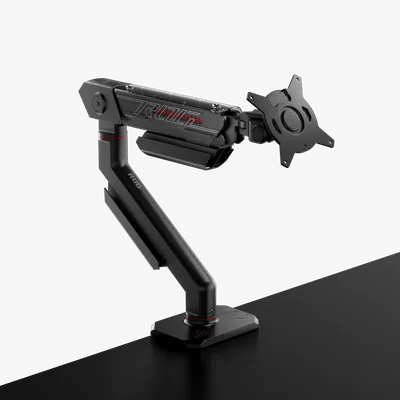

Recommanded Display Size:≤34"*, Swivel : +90°~-90°, Pivot : 360°, Lift : 32 cm, Pan : 360°, Tilt : +80°~-25°, Rotation : 360°, Maximum Extension : 63.72cm, Maximum Height :49.97cm, VESA Mounting : 100x100mm, Cable Management : Integrated, Desk Clamp Range : 10~80mm, Chassis Color : Black
