- EAN
- 4711636227094
- Typ
- Ljudkort
- USB
- Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C) Front USB (Total 10 ports) 2 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A
- BIOS
- 256Mb Flash ROM, UEFI AMI BIOS
- Ljud
- High Definition Audio (8-kanalig)
- Modell

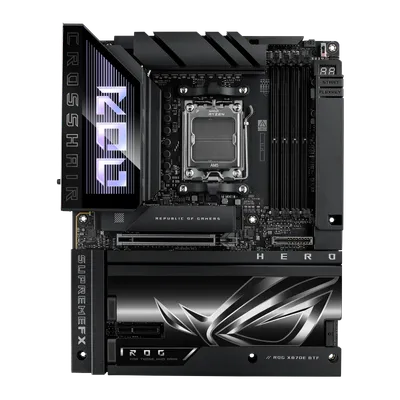

- ROG CROSSHAIR X870E HERO BTF
- Chipset
- AMD X870E
- Lagring
- Serial ATA-600 (RAID), M.2-uttag
- BIOS-typ
- AMI
- Kretstyp
- AMD X870E
- Nätverk
- 802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Bluetooth 5.4
- Antal M.2
- 5 st
- Egenskaper
- Minnesarkitektur med dubbel kanal, AMD EXPO-teknik
- Formfaktor
- BTF
- Produkttyp
- Moderkort
- RAID-stöd
- Ja
- Accessories
- Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 2 x M.2 Q-Latch package 3 x M.2 Q-Slide package 5 x M.2 rubber package 1 x ROG stickers 1 x ROG thank you card 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide
- Audio Codec
- SupremeFX ALC4082 / ESS ES9219
- Gränssnitt
- 1 x SPDIF-utgång, 6 x USB 3.2 Gen 2, 1 x mikrofon - mini-jack, 1 x ljudutgång - mini-jack, 2 x Thunderbolt 4/DisplayPort/USB4, 2 x USB-C 3.2 Gen 2, 1 x LAN (5Gigabit Ethernet), 1 x LAN (2.5Gigabit Ethernet), 2 x antenn, 1 x HDMI
- Produktlinje
- ASUS
- RAID Support
- AMD RAIDXpert2 Technology* Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types.
- USB/FireWire
- USB-C 3.2 Gen2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB4
- Manageability
- WOL by PME
- Lagringsportar
- 4 x SATA-600 (RAID), 5 x M.2
- News & Updates
- Socket AM5, Please visit our GLOBAL website to check and download the latest updates.
- BIOS-egenskaper
- ASUS EZ Flash 3, ASUS UEFI BIOS EZ-läge, UEFI BIOS
- Internminnestyp
- DDR5
- RAID-egenskaper
- AMD RAID Xpert2-teknik
- RAM-kortplatser
- 4 DIMM-kortplatser
- Strömkontakter
- 8-stifts PCI Express-strömkontakt, 12V-2X6 strömbrytare, 24-pin kontakt för huvudström, 2 x 8-stifts ATX12V-kontakter
- Operating System
- Windows 11
- Processor-socket
- Socket AM5
- Special Features
- Extreme OC Kit - FlexKey button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design - Metal backplate ASUS EZ DIY - Backplate - BIOS FlashBack button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 header(s)
- Software Features
- ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Internet Security (1-year full version) - Polymo Lighting II ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO ASUS AI Advisor ASUS DriverHub ASUS GlideX TurboV Core WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey
- Datalänkprotokoll
- Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11be (Wi-Fi 7), Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet, IEEE 802.11n, 5 Gigabit Ethernet, Bluetooth 5.4, IEEE 802.11ax (Wi-Fi 6E), IEEE 802.11ac
- Hårdvaruegenskaper
- Q-Antenna, M.2 bakre kylelementsplåt, VRM-kylelementskonstruktion, 18+2+2-fasad strömkonstruktion, ASUS Extreme Engine Digi+, Förmonterat I/O-skydd, PCIe Slot Q-Release, Q-Release Slim, Clear CMOS-knapp, Preboot eXecution Environment (PXE), M.2 Q-Release, M.2 Q-Latch, BIOS FlashBack-knapp, AMD Precision Boost Overdrive (PBO), ASUS EZ DIY, M.2 kylfläns, ASUS Extreme OC Kit, ASUS SafeSlot, Q-Dashboard, Core Flex-teknik, CrashFree BIOS 3, Q-Slot, ASUS Q-Design, 10K Black Metallic Capacitors, M.2 Q-Slide, AI Överklockning, ASUS SafeDIMM, Polymo Lighting II, ASUS ProCool II, Startknapp, AI Nätverk II, ASUS Aura Sync, Avancerad BTF-design, Q-Code, Bakre metallplåt, Q-LED, AI Cooling II, MicroFine Alloy Chokes, Chipset kylelement, ASUS Enhanced Memory Profile (AEMP), ASUS Q-Connector, Quick Charge 4+, FlexKey-knapp
- Interna gränssnitt
- 4 x USB 3.2 Gen 1 - header, 1 x ljud - header, 2 x USB-C 3.2 Gen 2x2 - header, 4 x USB 2.0 - header
- Lagringsgränssnitt
- PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 5.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5
- Medföljande kablar
- 4 x SATA expresskabel
- Trådlöst nätverk
- Ja
- Viloläge/väckning
- Wake on PME, Wake on LAN (WOL)
- Back Panel I/O Ports
- 2 x USB4 (40Gbps) ports (2 x USB Type-C) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C) 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button
- Expansionskortplatser
- 1 x M.2 socket (2280 M.2, nyckel M-kortplats), 1 x PCIe 5.0 x16, 1 x PCIe 4.0 x4, 1 x CPU, 4 x M.2 socket (2242/2260/2280 M.2 Key M-plats), 4 x DIMM 288-stift
- RAM-teknik som stöds
- DDR5 SDRAM
- Standarder som följs
- HD-ljud, Dolby Atmos
- Inkluderade tillbehör
- ROG-dekaler, 3 x M.2 Q-Slide, ROG tackkort, ROG flasköppnare, 5 st. M.2 gummipaket, USB-enhet, Q-Connector, ARGB RGB förlängningskabel, 2 x M.2 Q-Latch, ASUS Wi-Fi Q-antenna
- Kompatibla processorer
- Ryzen
- Programvara inkluderad
- Adobe Creative Cloud (kostnadsfri provperiod), Armoury Crate, ASUS Fan Xpert 4, WinRAR (40 days trial), ROG CPU-Z, TurboV Core, ASUS AURA Creator, Drivrutiner och hjälpprogram, ROG GameFirst Utility, USB Wattage Watcher, AIDA64 Extreme (1 års licens), HWiNFO, ASUS DriverHub, ASUS GlideX
- Internal I/O Connectors
- Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x Graphics card high power slot 1 x 12V-2X6 Auxiliary power connector Storage Related 5 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 2 x USB 20Gbps connectors (support USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header
- RAM-hastighet som stöds
- 8200 MT/s (O.C.), 8000 MT/s (O.C.), 8600 MT/s (O.C.)
- Stöder Ram Integrity Check
- On-die ECC, Icke ECC, ECC
- Kompatibla processorkommentarer
- Stöder Ryzen 7000/8000/9000-serien
- Producentens garanti (månader)
- 36
- USB/FireWire-portkonfiguration (aktiv)
- 2 x USB4 + 2 x USB-C 3.2 Gen 2 + 6 x USB 3.2 Gen 2
- USB/FireWire-portkonfiguration (sidhuvud)
- 2 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0
- RAM som stöds (registrerad eller buffrad)
- Ej buffrad
