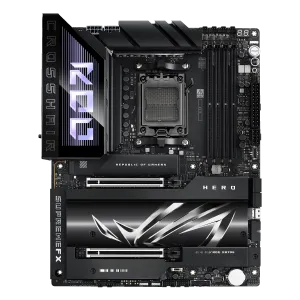

ROG CROSSHAIR X870E HERO

Övriga specifikationer

EAN

4711387710302

Typ

Ljudkort

USB

Rear USB (Total 10 ports) 2 x USB4 (40Gbps) ports (2 x USB Type-C) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C) Front USB (Total 10 ports) 1 x USB 20Gbps (supports USB Type-C with up to 60W PD/QC4+)* 1 x USB 20Gbps connector (supports USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports USB Type-C power delivery output: max. 5V/3A *USB Type-C power delivery output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A

BIOS

256Mb Flash ROM, UEFI AMI BIOS

Ljud

High Definition Audio (8-kanalig)

Modell

ROG CROSSHAIR X870E HERO

Chipset

AMD X870E

Lagring

M.2-uttag, SlimSAS slot, Serial ATA-600 (RAID)

BIOS-typ

AMI

Kretstyp

AMD X870E

Nätverk

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), Bluetooth 5.4, 5 Gigabit Ethernet

Antal M.2

5 st

Egenskaper

Minnesarkitektur med dubbel kanal, AMD EXPO-teknik

Formfaktor

ATX

Produkttyp

Moderkort

RAID-stöd

Ja

Accessories

Cables 1 x ARGB RGB extension cable 4 x SATA 6Gb/s cables Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 2 x M.2 Q-Latch package 3 x M.2 Q-Slide package 5 x M.2 rubber package 1 x ROG stickers 1 x ROG thank you card 1 x ROG Bottle Opener Installation Media 1 x USB drive with utilities and drivers Documentation 1 x Quick start guide

Audio Codec

SupremeFX ALC4082 / ESS ES9219

Gränssnitt

1 x HDMI, 2 x USB-C 3.2 Gen 2, 1 x SPDIF-utgång, 1 x ljudutgång - mini-jack, 6 x USB 3.2 Gen 2, 1 x LAN (2.5Gigabit Ethernet), 1 x mikrofon - mini-jack, 2 x antenn, 2 x Thunderbolt 4/DisplayPort/USB4, 1 x LAN (5Gigabit Ethernet)

Produktlinje

ASUS

RAID Support

AMD RAIDXpert2 Technology* Ryzen 9000 Series Processors: RAID 0/1/5/10 Ryzen 8000 Series Processors: RAID 0/1 Ryzen 7000 Series Processors: RAID 0/1/10 * Specifications vary by CPU types.

USB/FireWire

USB 3.2 Gen 2, USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB4, USB-C 3.2 Gen2

Manageability

WOL by PME, PXE

Lagringsportar

1 x SlimSAS, 4 x SATA-600, 6 x M.2

News & Updates

Socket AM5, Please visit our GLOBAL website to check and download the latest updates.

BIOS-egenskaper

ASUS EZ Flash 3, UEFI BIOS, ASUS UEFI BIOS EZ-läge

Internminnestyp

DDR5

RAID-egenskaper

AMD RAID Xpert2-teknik

RAM-kortplatser

4 DIMM-kortplatser

Strömkontakter

8-stifts PCI Express-strömkontakt, 24-pin kontakt för huvudström, 2 x 8-stifts ATX12V-kontakter

Operating System

Windows 11

Processor-socket

Socket AM5

Special Features

Extreme OC Kit - FlexKey button - LN2 Mode - ReTry button - Start button Extreme Engine Digi+ - 10K Black metallic capacitors - MicroFine alloy choke ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Code - Q-Connector - Q-Dashboard - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design - Metal backplate ASUS EZ DIY - Backplate - BIOS FlashBack button - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Aura Sync - Addressable Gen2 header(s) Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 60W fast charging and USB Wattage Watcher* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with PD3.0 and PPS * To support 60W, please install the power cable to the 8-pin PCIe power connector or else only 27W will be supported.

Software Features

ROG Exclusive Software - ROG CPU-Z - Dolby Atmos - Internet Security (1-year full version) - Polymo Lighting II ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (1 year full version) - Aura Creator - Aura Sync -Fan Xpert 4 (with AI Cooling II) - GameFirst - HWiNFO - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey

Datalänkprotokoll

Ethernet, IEEE 802.11n, IEEE 802.11be (Wi-Fi 7), IEEE 802.11ax (Wi-Fi 6E), Fast Ethernet, IEEE 802.11b, Gigabit Ethernet, IEEE 802.11g, 5 Gigabit Ethernet, IEEE 802.11ac, 2.5 Gigabit Ethernet, Bluetooth 5.4, IEEE 802.11a

Hårdvaruegenskaper

Clear CMOS-knapp, ASUS ProCool II, ASUS SafeSlot, M.2 Q-Latch, MicroFine Alloy Chokes, Chipset kylelement, ASUS Extreme OC Kit, Q-Dashboard, Polymo Lighting II, M.2 kylfläns, AI Nätverk II, Q-Release Slim, AI Överklockning, Core Flex-teknik, Q-Slot, M.2 Q-Release, FlexKey-knapp, ASUS Enhanced Memory Profile (AEMP), ASUS Q-Design, ASUS Extreme Engine Digi+, Bakre metallplåt, ASUS EZ DIY, Quick Charge 4+, Q-LED, CrashFree BIOS 3, Q-Code, 10K Black Metallic Capacitors, AI Cooling II, ASUS Aura Sync, ASUS Q-Connector, Startknapp, PCIe Slot Q-Release, ASUS SafeDIMM, VRM-kylelementskonstruktion, AMD Precision Boost Overdrive (PBO), M.2 bakre kylelementsplåt, 18+2+2-fasad strömkonstruktion, BIOS FlashBack-knapp, Q-Antenna, M.2 Q-Slide, Förmonterat I/O-skydd, Preboot eXecution Environment (PXE)

Interna gränssnitt

4 x USB 3.2 Gen 1 - header, 2 x USB-C 3.2 Gen 2x2 - header, 1 x ljud - header, 4 x USB 2.0 - header

Lagringsgränssnitt

PCIe 5.0 -kontakter: 3 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, PCIe 4.0 -kontakter: 2 x M.2 - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 -kontakter: 4 x 7 pin Seriell ATA - RAID 0 / RAID 1 / RAID 10 / RAID 5, SATA-600 / PCIe 4.0 -kontakter: 1 x SlimSAS - RAID 0 / RAID 1 / RAID 10 / RAID 5

Medföljande kablar

4 x SATA expresskabel

Trådlöst nätverk

Ja

Viloläge/väckning

Wake on LAN (WOL), Wake on PME

Back Panel I/O Ports

2 x USB4 (40Gbps) ports (2 x USB Type-C) 8 x USB 10Gbps ports (6 x Type-A + 2 x USB Type-C) 1 x HDMI port 1 x Wi-Fi module 1 x Intel 2.5Gb Ethernet port 1 x Realtek 5Gb Ethernet port 2 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button

Expansionskortplatser

4 x M.2 socket (2242/2260/2280 M.2 Key M-plats), 1 x CPU, 2 x PCIe 5.0 x16, 1 x M.2 socket (2280 M.2, nyckel M-kortplats), 4 x DIMM 288-stift

RAM-teknik som stöds

DDR5 SDRAM

Standarder som följs

DisplayPort 1.4a

Inkluderade tillbehör

ARGB RGB förlängningskabel, Q-Connector, ROG flasköppnare, 2 x M.2 Q-Latch, 3 x M.2 Q-Slide, USB-enhet, ROG tackkort, ROG-dekaler, ASUS Wi-Fi Q-antenna, 5 st. M.2 gummipaket

Programvara inkluderad

ROG CPU-Z, ROG GameFirst Utility, ASUS GlideX, USB Wattage Watcher, AIDA64 Extreme (1 års licens), WinRAR (40 days trial), HWiNFO, ASUS DriverHub, Adobe Creative Cloud (kostnadsfri provperiod), ASUS AURA Creator, TurboV Core, ASUS Fan Xpert 4, Drivrutiner och hjälpprogram, Armoury Crate

Internal I/O Connectors

Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector 1 x 8-pin PCIe Power connector Storage Related 5 x M.2 slots (Key M) 1 x SlimSAS connector 4 x SATA 6Gb/s ports USB 2 x USB 20Gbps connectors (support USB Type-C) 2 x USB 5Gbps headers support 4 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen2 headers 1 x Alteration PCIe mode switch 1 x FlexKey button 1 x Front Panel Audio header (F_AUDIO) 1 x ReTry button 1 x Start button 1 x 10-1 pin System Panel header 1 x Thermal Sensor header 1 x LN2 Mode jumper

RAM-hastighet som stöds

4000 MHz (O.C.), 4300 MHz (O.C.), 4100 Mhz (O.C)

Stöder Ram Integrity Check

Icke ECC, ECC, On-die ECC

Kompatibla processorkommentarer

Stöder Ryzen 7000/8000/9000-serien

Producentens garanti (månader)

24

USB/FireWire-portkonfiguration (aktiv)

2 x USB4 + 2 x USB-C 3.2 Gen 2 + 6 x USB 3.2 Gen 2

USB/FireWire-portkonfiguration (sidhuvud)

2 x USB-C 3.2 Gen 2x2 + 4 x USB 3.2 Gen 1 + 4 x USB 2.0

RAM som stöds (registrerad eller buffrad)

Ej buffrad
