WiFi

WiFi 7

Sockel

AM5

Chipset

AMD X870E

M.2-platser

4

Ethernet

10 Gigabit

Max minne

256 GB

PCIe-platser

2x PCIe 5.0 x16, 1x PCIe 4.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 16.0 x16

SATA-portar

4

Ljudkodek

Realtek ALC1220P

Dimensioner

305 × 244mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

HDMI x1, USB4 x2

Max minneshastighet

8000 MHz

Övriga specifikationer

LAN

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Bluetooth 5.4

SKU

90MB1IG0-M0EAY0

USB

Rear USB (Total 11 ports) 2 x USB4 (40Gbps) port(s) (2 x USB Type-C) 1 x USB 20Gbps port(s) (1 x USB Type-C) 7 x USB 10Gbps port(s) (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) Front USB (Total 9 ports) 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+)** 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports "* USB Type-C power delivery output: max. 5V/3.0A" ** USB Type-C power delivery output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max. 2.0A

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Djup

24.4 cm

Bredd

30.5 cm

Minne

4 × DDR5 DIMM, upp till 8000 MHz (OC), max 192 GB

Mått

305 × 244 mm

Wi-Fi

Ja

Art.nr

21547250

Modell

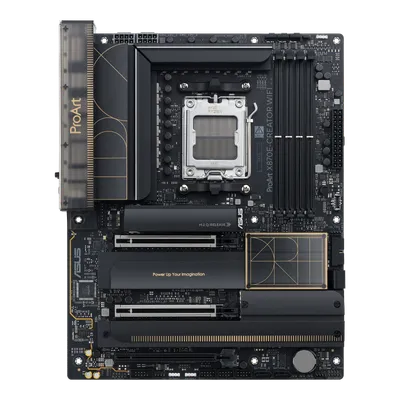

ProArt X870E-CREATOR WIFI

Teknik

DDR5

Chipset

AMD X870E

BIOS-typ

AMI

Chipsats

AMD X870E

Kretstyp

AMD X870E

Ljudkort

Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

imageUrl

https://www.proshop.se/Images/600x800/3295125_6cb41d01b40b.png

Antal M.2

4 st

Bluetooth

Ja

Expansion

2 × PCIe 5.0 x16 SafeSlots (x16 eller x8/x8), 1 × PCIe 4.0 x16 (x4-läge)

Ljudchipp

Realtek S1220A

Minnestyp

DDR5 (8000+MT/s(OC) med Ryzen 9000-seriens processorer, 8000+MT/s(OC) med Ryzen 8000-seriens processorer, 8000+MT/s(OC) med Ryzen 7000-seriens processorer), ECC, Non-ECC, Un-buffered, Dual Channel

Modell-nr

PROART X870E-CREATOR WIFI

RAM-stöd

4 DIMM-kortplatser - DDR5, on-die ECC, icke ECC, ECC, ej buffrad

Antal HDMI

1

Bussklocka

4000 MHz (O.C.)

Egenskaper

Minnesarkitektur med dubbel kanal, AMD EXPO-teknik

Funktioner

AI Overclocking, AI Cooling II, AI Networking II, ProArt Creator Hub, M.2 Q-Latch, PCIe Slot Q-Release Slim, BIOS FlashBack™, Clear CMOS-knapp, förmonterad I/O-sköld

Produkttyp

Moderkort

RAID-stöd

Ja

USB-portar

2 × USB4® Type-C (bak), 1 × USB 3.2 Gen 2x2 Type-C (frontpanel), 7 × USB 3.2 Gen 2 Type-A (bak), interna headers för ytterligare portar

Accessories

Cables 1 x DisplayPort cable 4 x SATA 6Gb/s cables Additional Cooling Kit 1 x Thermal pad for M.2 22110 Miscellaneous 1 x ASUS WiFi Q-Antenna 1 x Q-connector 1 x M.2 Q-Latch package 1 x M.2 Q-Latch Q-Slide package for M.2 backplate 2 x Rubber Packages for M.2 1 x ProArt ruler Documentation 1 x Quick start guide 1 x ACC Express Activation Key Card

Audio Codec

Realtek ALC1220P

Kategorivag

Datorkomponenter > Moderkort > AMD Socket AM5

Lagerstatus

i lager

Leveranstid

Leveranstid 1-3 vardagar

Saljpunkt 1

AMD AM5 ATX-moderkort

Saljpunkt 2

AMD X870E-chipset

Saljpunkt 3

10G & 2.5G LAN, WiFi 7, Bluetooth 5.4

Saljpunkt 4

4 x M.2-platser, 4 x DDR5

Saljpunkt 5

Designad för AI-PC-konfigurationer

Tillverkare

ASUS

Produktlinje

ASUS

Produktlänk

https://www.asus.com/se/motherboards-components/motherboards/proart/proart-x870e-creator-wifi/

RAID-nivåer

0, 1, 5, 10

USB/FireWire

USB-C 3.2 Gen 2x2, USB 3.2 Gen 1, USB 3.2 Gen 2, USB4

deliveryTime

2-12 vardagar

feedCategory

Moderkort

feedProvider

Partner-ads

Antal USB 2.0

1

Manageability

WOL by PME, PXE

Kompatibilitet

AMD Socket AM5 (Ryzen™ 7000-, 8000- och 9000-serien)

Lagringsportar

4 x SATA-600 (RAID), 4 x M.2

News & Updates

Socket AM5

Processorstöd

AMD Ryzen 7000 / 8000 / 9000-serien

Typ av produkt

Moderkort - ATX

Wi-Fi-standard

Wi-Fi 7 (802.11be)

Grafikutgångar

HDMI 2.1, DisplayPort 1.4 (via USB4®)

Internminnestyp

DDR5

Maximal storlek

192 GB

Processorsockel

AM5-sockel

RAID-egenskaper

AMD RAID Xpert2-teknik

RAM-kortplatser

4 DIMM-kortplatser

Strömkontakter

24-pin kontakt för huvudström, 2 x 8-stifts ATX12V-kontakter

Dustin artikelnr

5020024270

Max. RAM-storlek

192 GB

Operating System

Windows 11

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - M.2 Q-Release - M.2 Q-Slide - PCIe Slot Q-Release Slim (with PCIe SafeSlot) - Q-Antenna - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Front Panel USB 20Gbps with Quick Charge 4+ Support - Support: up to 30W fast charging and USB Wattage Watcher - Output: 5V/9V max. 3.0A, 12V max 2.5A, 15V max2.0A - Compatible with PD3.0

Bluetooth-version

5.4

FabrikatProduktnr

4711387730775

Moderkortsstorlek

ATX (30,5 cm x 24,4 cm)

Software Features

ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 with AI Cooling II - Power Saving ASUS DriverHub ASUS GlideX USB Wattage Watcher TurboV Core ASUS CPU-Z ProArt Creator Hub CreationFirst Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey

Antal DisplayPorts

1

BIOS minnesstorlek

256 mbit

Datalänkprotokoll

2.5 Gigabit Ethernet, Bluetooth 5.4, Gigabit Ethernet, 10 Gigabit Ethernet, 5 Gigabit Ethernet, IEEE 802.11be (Wi-Fi 7), Fast Ethernet, IEEE 802.11n, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6E), Ethernet, IEEE 802.11a, IEEE 802.11b, IEEE 802.11g

Moderkort kretstyp

AMD X870E

Produktbeskrivning

ASUS ProArt X870E-CREATOR WIFI - moderkort - ATX - Socket AM5 - AMD X870E

Stöds minnestyper

DDR5-SDRAM

USB 2.0 anslutning

3

Antal USB 4 Gen 2x2

2

Antal minnesplatser

4

Leverantorsreferens

954299

Ljudutgångskanaler

7.1 kanaler

Maximalt minne (GB)

192

Minneskanaler stöd

Dubbla kanaler

Trådlöst nätverk

Ja

USB/FireWire-portar

2 x USB4 + 1 x USB-C 3.2 Gen 2x2 + 7 x USB 3.2 Gen 2 + 1 x USB 2.0 + (1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0 via headers)

Back Panel I/O Ports

2 x USB4 (40Gbps) port(s) (2 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 7 x USB 10Gbps ports (7 x Type-A) 1 x USB 2.0 port (1 x Type-A) 1 x DisplayPort (Input only) 1 x HDMITM port 1 x Wi-Fi Module 1 x Marvell AQtion 10Gb Ethernet 1 x Intel 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button

Maximalt internminne

192 GB

Moderkort formfaktor

ATX

Nätverksgränssnitt

802.11a/b/g/n/ac/ax/be (Wi-Fi 7), 2.5 Gigabit Ethernet, 10 Gigabit Ethernet, Bluetooth 5.4

Antal M.2 (M)-platser

4

Minnesplatser (antal)

4

Nätverksanslutningar

Intel 2.5Gb Ethernet, Marvell AQtion 10Gb Ethernet, 2x2 Wi-Fi 7 (802.11be), Bluetooth v5.4

Processorinstallation

AM5

RAM-teknik som stöds

DDR5 SDRAM

Antal Ethernet (RJ-45)

2

Kompatibla processorer

Ryzen (stöder Ryzen 7000/8000/9000-serien)

Programvara inkluderad

CreationFirst, Armoury Crate, ASUS ProArt Creator Hub, ASUS GlideX, ASUS DriverHub, USB Wattage Watcher, ASUS Fan Xpert 4, ASUS CPU-Z, WinRAR (40 days trial), Adobe Creative Cloud (kostnadsfri provperiod), Norton 360 Deluxe (60 dagars provperiod), ASUS AURA Creator, TurboV Core, ASUS Control Center Express

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+) 1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports 3 x USB 2.0 headers support 6 additional USB 2.0 ports Miscellaneous 3 x Addressable Gen 2 headers 1 x Chassis Intrusion header 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin System Panel header 1 x Thermal Sensor header

Antal SATA III kontakter

4

Medföljande programvara

Armoury Crate, ASUS AI Suite III, ASUS CPU-Z, ASUS Control Center Express, CreationFirst, MyAsus, Norton AntiVirus (Trial), WinRAR, ASUS ProArt Creator Hub, ASUS GlideX, TurboV Core, ASUS DriverHub

Moderkort chipset familj

AMD

RAM-hastighet som stöds

4000 MHz (O.C.)

Registrerad eller buffrad

Ej buffrad

Maximalt antal processorer

1

Remote Management Features

IT Management software supported - ASUS Control Center Express(ACCE)

Tillverkarens artikelnummer

90MB1IG0-M0EAY0

Typ av ethernet-gränssnitt

2.5 Gigabit Ethernet, 10 Gigabit Ethernet

USB 3.2 Gen 2x2-anslutningar

1

Kompatibla processorkommentarer

Stöder Ryzen 7000/8000/9000-serien

Producentens garanti (månader)

24

Antal anslutningar för fläktar

5

PCI Express x16 (Gen 4.x) platser

1

PCI Express x16 (Gen 5.x) platser

2

Stöd för parallellprocessteknik

Stöds inte

Antal USB 3.2 Gen 2x2 typ C-portar

1

USB 3.2 Gen 1 (3.1 Gen 1)-anslutningar

1

USB/FireWire-portkonfiguration (aktiv)

2 x USB4 + 1 x USB-C 3.2 Gen 2 + 7 x USB 3.2 Gen 2 + 1 x USB 2.0

USB/FireWire-portkonfiguration (sidhuvud)

1 x USB-C 3.2 Gen 2x2 + 2 x USB 3.2 Gen 1 + 6 x USB 2.0

RAM som stöds (registrerad eller buffrad)

Ej buffrad

Antal USB 3.2 Gen 2 (3.1 Gen 2) typ A-portar

7
