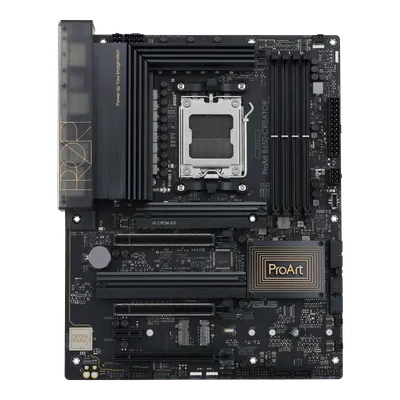

ProArt B650-CREATOR

Sockel

AM5

Chipset

AMD B650

M.2-platser

3

Ethernet

2.5 Gigabit

Max minne

192 GB

PCIe-platser

2x PCIe 4.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x1, 1x PCIe 16.0 x16

SATA-portar

4

Ljudkodek

Realtek

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR5

Övriga specifikationer

USB

Rear USB (Total 7 ports) 1 x USB 3.2 Gen 2 port (1 x USB Type-C, shared with DisplayPort graphic output) 4 x USB 3.2 Gen 2 ports (3 x Type-A + 1 x USB Type-C) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4+) 1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables 1 x DisplayPort cable 2 x SATA 6Gb/s cables Miscellaneous 1 x Q-connector 1 x Rubber Packages for M.2 1 x Screw packages for M.2 SSD 1 x Screw package for M.2 Key E 1 x ProArt ruler Documentation 1 x ACC Express Activation Key Card 1 x User guide

Manageability

WOL by PME, PXE

News & Updates

Socket AM5

Operating System

Windows 11 64-bit, Windows 10 64-bit

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - Enhanced DRAM Overcurrent Protection - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsinks - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool - Pre-mounted I/O shield - SafeSlot - SafeDIMM AURA Sync - Aura RGB header - Addressable Gen 2 headers Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection Front Panel USB 3.2 Gen 2x2 with Quick Charge 4+ Support - Support: up to 60W charging* - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS * To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported.
