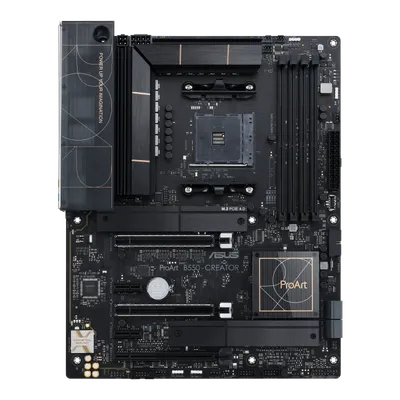

ProArt B550-CREATOR

M.2-platser

2

Ethernet

2.5 Gigabit

PCIe-platser

1x PCIe 3.0 x16 (x4), 2x PCIe 3.0 x1, 0x PCIe 3.0 x4, 0x PCIe 1.0 x1

SATA-portar

4

Dimensioner

305 244 mm

Formfaktor

ATX

Övriga specifikationer

USB

Rear USB:Total 8 ports, 2 x Thunderbolt 4 port(s) (2 x USB Type-C) with up to 5V/3A, 15W charging support 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 2 x USB 2.0 port(s) (2 x Type-A) 1 x USB 3.2 Gen 1 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Ljud

Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback*" Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Rear optical S/PDIF out port - Premium Japanese audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.

Minne

AMD Ryzen 5000 Series/ 3000 Series Desktop Processors DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory *" AMD RyzenTM 4000 G-Series Processors DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz ECC and non-ECC, Un-buffered Memory" OptiMem II Dual Channel Memory Architecture ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Grafiken

1 x HDMI 2.1(4K@60HZ) 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.2/1.4 and Thunderbolt video outputs * * Output at TBT4_E1 and TBT4_E2, the USB Type-C ports right under RJ45 ports, each requires a USB-C to DisplayPort adapter cable. Graphics specifications may vary between CPU types. ** VGA resolution support depends on processors' or graphic cards' resolution. For more details about the video input and output settings please refer to the user manual.
