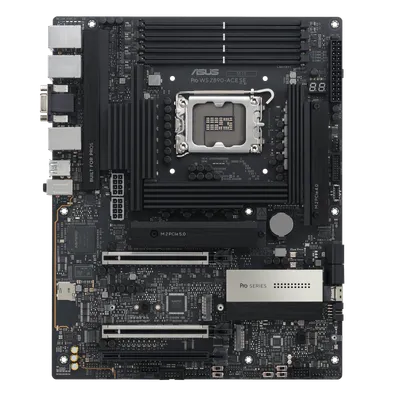

Pro WS Z890-ACE SE

Sockel

LGA 1851

Chipset

Intel Z890

M.2-platser

4

Ethernet

10 Gigabit

Max minne

256 GB

PCIe-platser

2x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4)

SATA-portar

8

Ljudkodek

Realtek ALC1220P

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

HDMI x1, Thunderbolt 4 x1, VGA x1

Övriga specifikationer

USB

Rear USB (Total 8 ports) 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers supports 4 additional USB 2.0 ports

BIOS

256 Mb Flash ROM UEFI AMI BIOS(text-based)

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x AMI license sticker 1 x I/O shield 2 x M.2 Q-Latch packages 2 x M.2 rubber packages 1 x Q-connector Documentation 1 x ACC Express activation key card 1 x Quick start guide

Manageability

WOL by PME, PXE

News & Updates

Please see the updated OS support requirements for the Intel Core Ultra 200S series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility., Please visit our GLOBAL website to check and download the latest updates.

Operating System

Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Release Slim (with PCIe SafeSlot) - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - CPU Socket lever protector - ProCool II - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 reliability - Overcurrent protection
