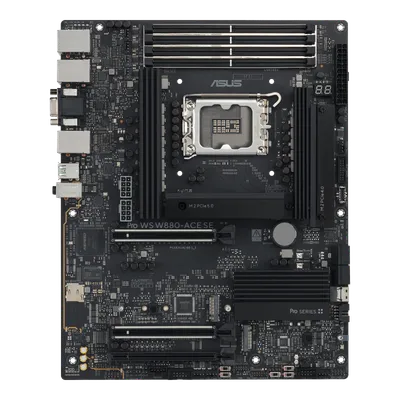

Pro WS W880-ACE SE

Sockel

LGA 1851

Chipset

Intel W880

M.2-platser

4

Ethernet

2.5 Gigabit

Max minne

256 GB

PCIe-platser

2x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4)

SATA-portar

8

Ljudkodek

Realtek ALC1220P

Dimensioner

305 244 mm

Formfaktor

ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

HDMI x1, Thunderbolt 4 x1, VGA x1

Max minneshastighet

9066 MHz

Övriga specifikationer

USB

Rear USB (Total 8 ports) 1 x Thunderbolt 4 port (1 x USB Type-C) 1 x USB 20Gbps port (1 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A) Front USB (Total 7 ports) 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers supports 4 additional USB 2.0 ports

BIOS

256 Mb Flash ROM UEFI AMI BIOS(text-based)

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x AMI license sticker 1 x I/O shield 1 x M.2 Q-Latch packages 2 x M.2 rubber packages 1 x Q-connector Documentation 1 x ACC Express activation key card 1 x Quick start guide

Manageability

WOL by PME, PXE

News & Updates

Please see the updated OS support requirements for the Intel Core Ultra 200S series below: •Intel Core Ultra 200S Series: Supports Windows 10 (version 21H2 and later) and Windows 11 (version 22H2 and later). •Intel Core Ultra 200S Plus Series: Windows 11 (version 25H2 and later) for full compatibility., Please visit our GLOBAL website to check and download the latest updates.

Operating System

Windows 11 (22H2 & later), Windows 10 64-bit(21H2 & later)

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage protection - SafeSlot Core+ - Stainless-steel back I/O ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - CPU Socket lever protector - ProCool II - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 reliability - Overcurrent protection

Software Features

ASUS Exclusive Software Armoury Crate - Fan Xpert 4 ASUS DriverHub ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS MyHotkey

Back Panel I/O Ports

1 x Thunderbolt 4 USB Type-C port 1 x USB 20Gbps port (1 x USB Type-C) 6 x USB 10Gbps ports (6 x Type-A) 1 x HDMI port 2 x Intel 2.5Gb Ethernet port 1 x Realtek 1Gb Ethernet dedicated for AST2600 1 x VGA port from AST2600 2 x Audio jacks 1 x BIOS FlashBack button 1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 5 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Power Related 1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector Storage Related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports 1 x SlimSAS connector USB 1 x USB 20Gbps connector (supports USB Type-C) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 header supports 4 additional USB 2.0 ports Miscellaneous 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header 1 x SPI TPM header (14-1 pin)

Remote Management Features

IT Management software supported - ASUS Control Center Express(ACCE) BMC Related 1 x BMC switch 1 x BMC debug UART header 1 x BMC LAN fixed IP switch 1 x IPMI switch 1 x Message LED header 1 x microSD card socket 1 x Location LED header 1 x Location button header 1 x PSU_SMB header 1 x SMART_PSU switch 1 x VGA switch 1 x VPP_I2C header BMC LED Design 1 x BMC LED Intel W880 Chipset Intel vPro
