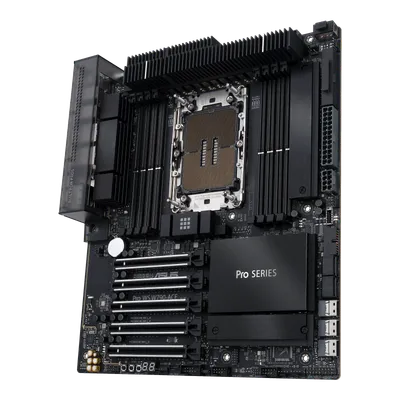

Pro WS W790-ACE

Sockel

LGA 4677

Chipset

Intel W790

M.2-platser

2

Ethernet

10 Gigabit

Max minne

2048 GB

PCIe-platser

5x PCIe 5.0 x16

SATA-portar

4

Ljudkodek

Realtek

Dimensioner

305 267 mm

Formfaktor

CEB

Minnestyp

DDR5

Minnesplatser

8

Max minneshastighet

6800 MHz

Övriga specifikationer

USB

Rear USB (Total 13 ports) 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 8 x USB 2.0 port(s) (8 x Type-A) Front USB (Total 7 ports) 1 x USB 3.2 Gen 2x2 (supports USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports

BIOS

512 Mb Flash ROM, UEFI AMI BIOS

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x Q-connector 1 x M.2 Rubber Package(s) 1 x M.2 backplate Rubber Package(s) 1 x CPU guard for LGA 4677 E1A 1 x CPU guard for LGA 4677 E1B Documentation 1 x ACC Express Activation Key Card 1 x User guide

Manageability

WOL by PME, PXE (UEFI mode)

Operating System

Windows 11, Windows 10 64-bit

Special Features

Extreme OC Kit - FlexKey button - ReTry button - Start button ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - Safeslot - Stainless-Steel Back I/O ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink backplate - M.2 heatsink - VRM heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Clear CMOS button - ProCool II - Pre-mounted I/O shield - SafeSlot - SafeDIMM Bespoke Motherboard Design & Business Focused Features - 24/7 Reliability - Overcurrent Protection

Software Features

ASUS Exclusive Software Armoury Crate - Fan Xpert 4 AI Suite 3 - TPU - DIGI+ VRM - Turbo app - PC Cleaner ASUS CPU-Z IT Management software supported - ASUS Control Center Express(ACCE) Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - Start ASUS EzFlash FlexKey

Back Panel I/O Ports

1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C) 4 x USB 3.2 Gen 2 port(s) (4 x Type-A) 8 x USB 2.0 port(s) (8 x Type-A) 1 x Marvell AQtion 10Gb Ethernet port 1 x Intel 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button 1 x Clear CMOS button

Internal I/O Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 5 x 4-pin Chassis Fan header(s) 1 x W_PUMP+ header(s) Power related 2 x 24-pin Main Power connector 4 x 8-pin +12V Power connector 1 x 8-pin PCIe Power connector Storage related 2 x M.2 slots (Key M) 3 x SlimSAS slots 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2x2 connector (support(s) USB Type-C) 1 x USB 3.2 Gen 1 header(s) support(s) 2 additional USB 3.2 Gen 1 ports 2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports Miscellaneous 1 x BMC header 1 x COM Port header 1 x FlexKey button 1 x Front Panel Audio header (AAFP) 1 x LN2 Mode jumper 1 x ReTry button 1 x Start button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x VROC Key header
