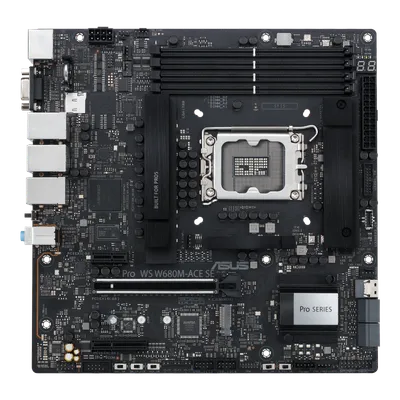

Pro WS W680M-ACE SE

Sockel

LGA 1700

Chipset

Intel W680

M.2-platser

2

Ethernet

2.5 Gigabit

Max minne

192 GB

PCIe-platser

1x PCIe 1.0 x16, 1x PCIe 1.0 x4, 1x PCIe 1.0 x1

SATA-portar

8

Ljudkodek

Realtek

Dimensioner

244 244 mm

Formfaktor

Micro-ATX

Minnestyp

DDR5

Minnesplatser

4

Displayutgångar

DisplayPort x1, HDMI x1, VGA x1

Övriga specifikationer

USB

Rear USB (Total 6 ports) - 2 x USB 3.2 Gen 2 ports (1 x Type-A, 1 x Type-C) - 4 x USB 3.2 Gen 1 ports (4 x Type-A) Front USB (Total 7 ports) - 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports - 2 x USB 2.0 headers support additional 4 USB 2.0 ports

BIOS

256 Mb Flash ROM, UEFI AMI BIOS(text-based)

Accessories

Cables 2 x SATA 6Gb/s cables Miscellaneous 1 x Q-connector 1 x M.2 Rubber Packages 2 x Screw package for M.2 SSD 1 x I/O Shield Documentation 1 x User guide 1 x ACC Express Activation Key Card

Manageability

WOL by PME, PXE

Operating System

Windows 11, Windows 10 64-bit

Special Features

ASUS 5X PROTECTION III - DIGI+ VRM (- Digital power design with DrMOS) - ESD Guards - LANGuard - Overvoltage Protection - SafeSlot - Stainless-Steel Back I/O ASUS Q-Design - Q-Code - M.2 Q-Latch - Q-Connector - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink - VRM heatsink design ASUS EZ DIY - CPU Socket lever protector - SafeDIMM - SafeSlot - BIOS FlashBack button - BIOS FlashBack LED Bespoke Motherboard Design & Business Focused Feature s - 24/7 Reliability

Software Features

ASUS Exclusive Software Armoury Crate - Fan Xpert 4 - Power Saving ASUS CPU-Z Adobe Creative Cloud (Free Trial) Norton 360 Deluxe (60 Days Free Trial) WinRAR IT Management software supported - ASUS Control Center Express(ACCE) Intel vPro UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUSTek. EzFlash Utility
